* Adopted PLC control system, and by customer design the action of machine;
* Transducer is introduced to control the printing process and make machine
running steadily;
* The movement of scraper, ink covering blades and screen departure is controlled by pneumatic parts to make speed and pressure no matter symmetrical but also stepless modulation;
* Working table angles is adjustable, which provides easy operation and accurate register;
* As a whole, this machine is safety, running steadily with low noise and printing precise.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Allraise
-
Dimensions(L*W*H):
-
1500*900*1250mm
-
Weight:
-
250 KG
-
Certification:
-
CE
-
Warranty:
-
1 year
-
After-sales Service Provided:
-
No overseas service provided
-
Product name:
-
Semi-auto Flatbed Silk Screen Printing Machine
-
Printing size:
-
400*600mm
-
Working table size:
-
600*800mm
-
thickness of prints:
-
0-40mm
-
Max. printing speed:
-
1200sheet /h
-
Working pressure:
-
0.5-0.7Mpa
-
Application:
-
eramic decal, metal board, plastic board, leather paper, glass
Quick Details
-
Condition:
-
New
-
Color & Page:
-
single color
-
Voltage:
-
380V
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Allraise
-
Dimensions(L*W*H):
-
1500*900*1250mm
-
Weight:
-
250 KG
-
Certification:
-
CE
-
Warranty:
-
1 year
-
After-sales Service Provided:
-
No overseas service provided
-
Product name:
-
Semi-auto Flatbed Silk Screen Printing Machine
-
Printing size:
-
400*600mm
-
Working table size:
-
600*800mm
-
thickness of prints:
-
0-40mm
-
Max. printing speed:
-
1200sheet /h
-
Working pressure:
-
0.5-0.7Mpa
-
Application:
-
eramic decal, metal board, plastic board, leather paper, glass
Products Description

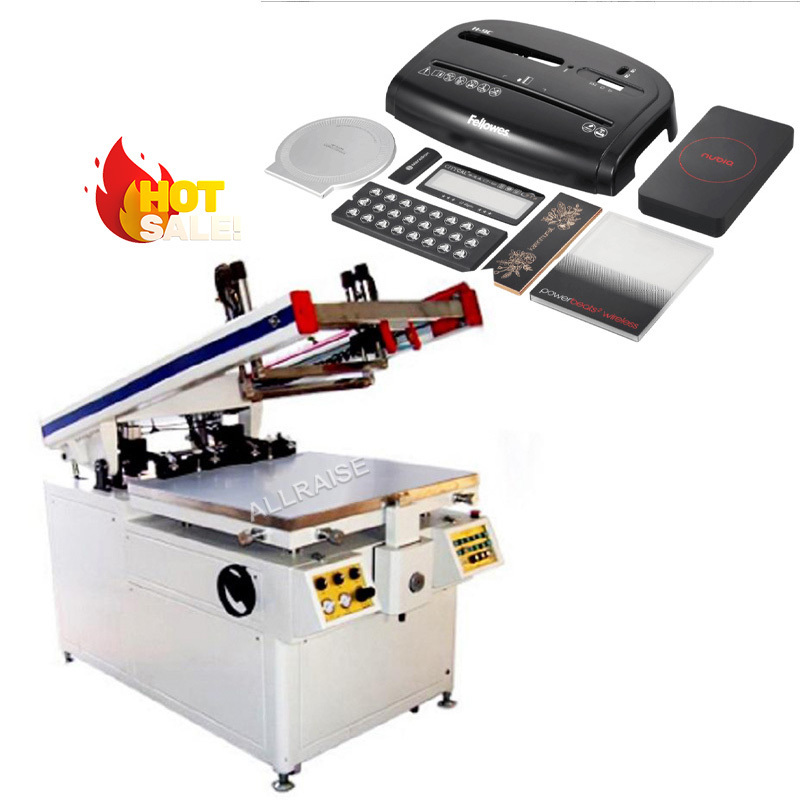

Semi-auto flat silk screen printers printing machine for glass t shirt ceramic decal metal board plastic board leather paper
Machine Advantages
Model
|
ORC-4060
|
ORC-6080
|
ORC-8012
|
Printing size
|
400*600mm
|
600*800mm
|
800*1200mm
|
Working table size
|
600*800mm
|
750*970mm
|
970*1300mm
|
Screen frame size
|
780*870mm
|
900*1200mm
|
15200*1400mm
|
Thickness of prints
|
0-40mm
|
0-40mm
|
0-40mm
|
Working table V/H
adjustment |
±10
|
±10
|
±10
|
Max. Printing speed
|
1200sheet/h
|
800sheet/h
|
800sheet/h
|
Power
|
2.5KW
|
3KW
|
3KW
|
Working pressure
|
0.5-0.7Mpa
|
0.5-0.7Mpa
|
0.5-0.7Mpa
|
Weight
|
250kg
|
550kg
|
750kg
|
Size
|
1500*900*1250
|
1500*1000*1235mm
|
1650*1500*1350mm
|
Product Application
Suitable range: This series of flat screen printing machine are available and have reasonable structure.It can print various of flat drawings, such as
ceramic decal, metal board, plastic board, leather paper, glass and so on
. So it has been used in the field of cigarette wrappers,alcohol, cosmetics widely.
