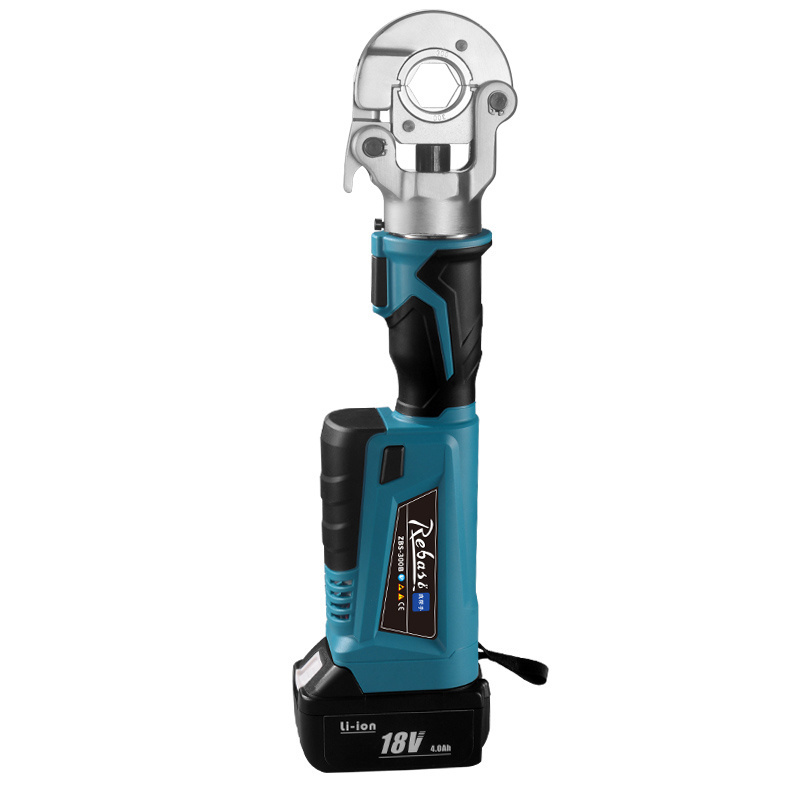

SUCA New Blue Series Portable Hydraulic tool Quick Continuous electric Crimping Cable Tool

SUCA New Blue Series Portable Hydraulic tool Quick Continuous electric Crimping Cable Tool

FOB Reference Price: Get Latest Price

≥20 Pieces

US $298

≥500 Pieces

US $277

≥1000 Pieces

US $256

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Time/crimp:: 8 s(CU 150 mm2)

Oil storage capacity:: 166 ml

Max pressure:: 70 Mpa

Max stroke:: 17mm

Max output:: 65 KN

Range of crimping:: CU 300 mm2 / AL 240mm2

Crimping dies:: 16 ,25, 35, 50, 70, 95, 120, 150, 185, 240, 300

Quick Details

Model:: SC-300 B

Weight:: 3.8 Kg

Size:: 420*270*72 mm

Time/crimp:: 8 s(CU 150 mm2)

Oil storage capacity:: 166 ml

Max pressure:: 70 Mpa

Max stroke:: 17mm

Max output:: 65 KN

Range of crimping:: CU 300 mm2 / AL 240mm2

Crimping dies:: 16 ,25, 35, 50, 70, 95, 120, 150, 185, 240, 300

SUCA Hydraulic crimping tools

● The working head of SUCA electro-hydraulic tongs can be rotated 330° to meet different working conditions and usage
environments

● Adopt permanent magnet DC motor, easy to work without effort ● The fuselage is equipped with a high-definition LCD
display, which records the power and crimping times in real time ● With reset switch, one-button reset to ensure your safety ● Professional crimping copper/aluminum wire terminals, the maximum pressure can reach 7 tons

Product name	SUCA Hydraulic crimping tools
Model	SC-300 B
Weight	3.8 Kg
Size	*42027072 mm*
Time/crimp	5 s(CU 150 mm2)
Time /crimp	120 times (CU 150 mm2)
Oil storage capacity	48 ml
Max pressure	70 Mpa
Max stroke	17 mm
Max output	65 KN
Range of crimping	CU 300 mm2 / AL 240 mm2
Crimping dies	16 ,25, 35, 50, 70, 95, 120, 150, 185, 240, 300
Battery	18 V 4 Ah / 5Ah
