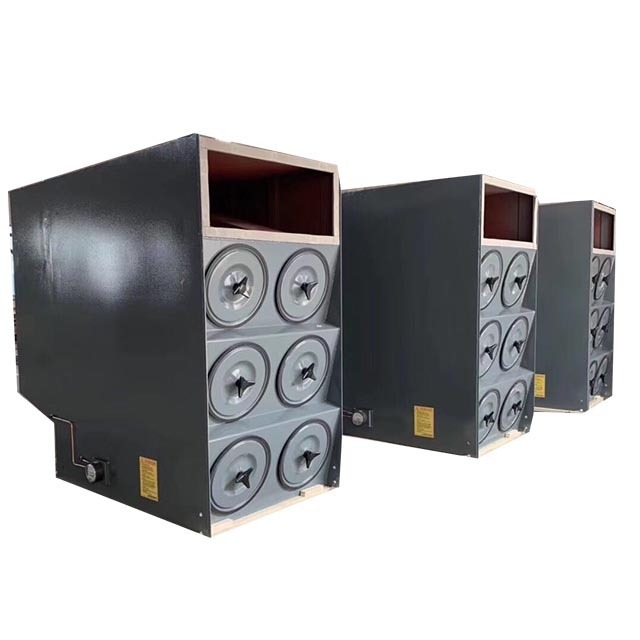

Pulse-jet dust remover cartridge filter dust collector

Pulse-jet dust remover cartridge filter dust collector

FOB Reference Price: Get Latest Price

≥1 Sets

US $6000

≥10 Sets

US $1800

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Product name:: Pulse-jet dust remover cartridge filter dust collector

Keyword:: cartridge filter dust collector

Color:: Customers' Requirements

Function:: Removing Dust Particles

Structure:: Cartridge Dust Filter

Voltage:: 380v/50hz

Air volume:: 5000-20000m3/h

Filter area:: 80-480m2

Cleaning way:: Auto Pulse Jet Cleaning System

Compressed Air:: 0.5 - 0.7 Mpa

After Warranty Service:: Video technical support, Online support

Local Service Location:: None

After-sales Service Provided:: Online support

Certification:: CE ISO

Quick Details

Minimum Particle Size:: 0.3 micron

Place of Origin:: China

Brand Name:: SDC

Product name:: Pulse-jet dust remover cartridge filter dust collector

Keyword:: cartridge filter dust collector

Color:: Customers' Requirements

Function:: Removing Dust Particles

Structure:: Cartridge Dust Filter

Voltage:: 380v/50hz

Air volume:: 5000-20000m3/h

Filter area:: 80-480m2

Cleaning way:: Auto Pulse Jet Cleaning System

Compressed Air:: 0.5 - 0.7 Mpa

After Warranty Service:: Video technical support, Online support

Local Service Location:: None

After-sales Service Provided:: Online support

Certification:: CE ISO

ndustrial pulse jet dust removal filter

CIndustrial cartridge dust removal filterement silo fabric deduster filter syste

Introduction:

The filter cartridge dust collector consists of a filter cartridge as a filter element or adopts a pulse blowing dust collector. The filter cartridge dust collector is divided into inclined insertion type and side installation type according to the installation mode.Hoisting type, upper mounting type. The filter cartridge dust collector can be divided into long fiber polyester filter cartridge dust collector, composite fiber filter cartridge dust collector and antistatic filter cartridge dust collector according to the filter cartridge material.Flame retardant filter cartridge dust collector, coated filter cartridge dust collector, nano filter cartridge dust collector, etc.

Working principle:

The resistance of the filter cartridge dust collector increases with the increase of the thickness of the dust layer on the surface of the filter material. when the resistance reaches a certain specified value, dust is removed. at this time, the pulse controller controls the opening and closing of the electromagnetic pulse valve.When the pulse valve is opened, compressed air in the air bag is injected through the small holes on the injection pipe through the pulse valve to form a high-speed and high-pressure jet flow, thus forming an induced defect flow equivalent to 1 to 2 times the volume of the jet flow.Enter the filter cartridge together, causing instantaneous positive pressure in the filter cartridge and causing bulging and fretting; Dust deposited on the filter material falls off and falls into the ash hopper. dust in the ash hopper passes through the discharge valve .Continuous discharge.

A pplication:

Suitable for mixing operation, dusting operation, circuit board processing, bagging, metal processing, air supply, sandblasting, casting cutting, mixing, drilling, crushing, Stone carving work

Type	Air Volume (m3/h)	Cartridge Qty (pc)	Dimension of cartridge (mm)	Filtration area(m2)	Filtration velocity(m/s)	Compressed Air Required (m3/min)	Fan(KW)
CNHR-4	3000	4	350X660	60	0.85	0.5-0.7	5.5
CNHR-8	6000	8	350X660	120	0.85	0.5-0.7	7.5
CNHR-12	9000	12	350X660	180	0.85	0.5-0.7	11
CNHR-16	12000	16	350X660	240	0.85	0.5-0.7	15
CNHR-24	18000	24	350X660	360	0.85	0.5-0.7	18.5
CNHR-32	24000	32	350X660	480	0.85	0.5-0.7	22
CNHR-36	27000	36	350X660	540	0.85	0.5-0.7	30
CNHR-40	30000	40	350X660	600	0.85	0.5-0.7	37
CNHR-48	36000	48	350X660	720	0.85	0.5-0.7	45
CNHR-56	42000	56	350X660	840	0.85	0.5-0.7	55
CNHR-64	56000	64	350X660	960	0.85	0.5-0.7	75
