Time and material are crucial factors in scaffolding construction. To make the most efficient use of both, the ADTO SERVICE includes the integrated software solution LayPLAN SUITE. Several software packages are on offer for different requirements:
LayPLAN CLASSIC, LayPLAN CAD.
- Product Details
- {{item.text}}
Quick Details
-
Application:
-
CONSTRUCTION
-
Design Style:
-
steel plank with hook
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
ADTO
-
Model Number:
-
SP-3
-
Product name:
-

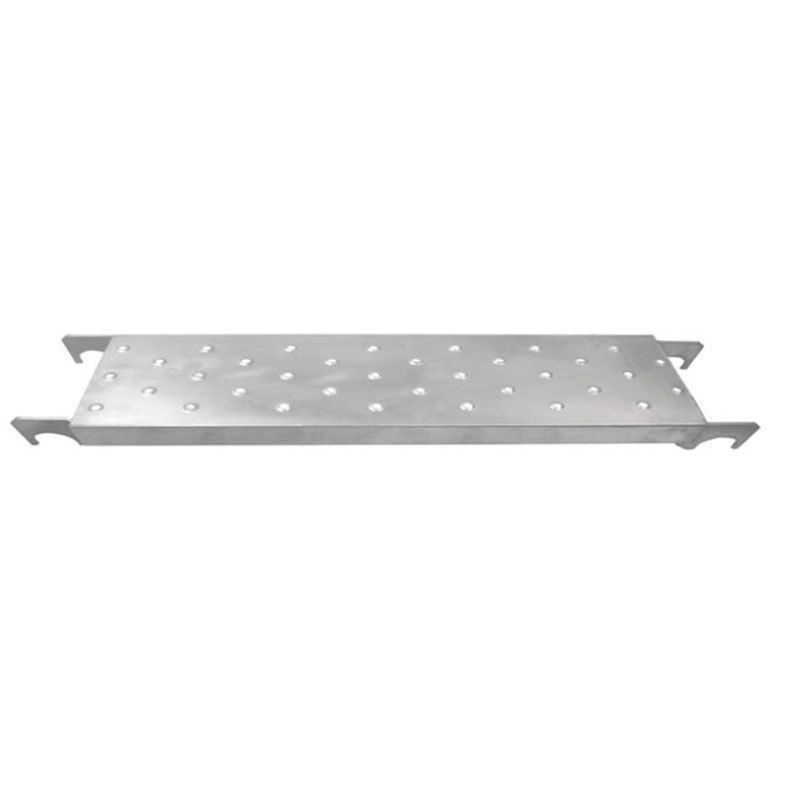

Scaffold Steel Plank with hook
-
Material:
-
Q195 / Q235
-
Surface treatment:
-
Pre-galvanized
-
Width:
-
230mm
-
length:
-
0.6-3m
-
Standard:
-
EN74/BS1139/AS1576
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support, Onsite Installation, Onsite Training, Onsite Inspection
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects
-
Application:
-
CONSTRUCTION
-
Design Style:
-
steel plank with hook
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
ADTO
-
Model Number:
-
SP-3
-
Product name:
-
Scaffold Steel Plank with hook
-
Material:
-
Q195 / Q235
-
Surface treatment:
-
Pre-galvanized
-
Width:
-
230mm
-
length:
-
0.6-3m
-
Standard:
-
EN74/BS1139/AS1576
Products Description
ADTO can produce all types of steel planks, including planks with hooks and without hooks..
ADTO Steel Planks Advantages:
* Light weight, beautiful appearance and strong bearing capacity;
* Effective service life of 5 years, high return on investment;
＊ Fireproof, anti sliding, seamless connection;
＊ Reduce potential safety hazards, and products can be recycled twice when eliminated;
ADTO Steel Planks Advantages:
* Light weight, beautiful appearance and strong bearing capacity;
* Effective service life of 5 years, high return on investment;
＊ Fireproof, anti sliding, seamless connection;
＊ Reduce potential safety hazards, and products can be recycled twice when eliminated;
Product Specifications
Size
: 0.6m to 3m (other sizes are available on request)
Material
: Q195 & Q235 Steel Strip
Standard:
BS EN 12811-1:2003.2004; AS/NZS1577:2013
|
Type 1:
|
|
|
|
Width x Height x Thickness x Length
|
Weight
|
|
|
230 × 63 x 1.8 × 914mm
|
6.7kg
|
|
|
230× 63 × 1.8 × 1200mm
|
8.0kg
|
|
|
230 × 63× 1.8 × 1219mm
|
8.2kg
|
|
|
230 × 63 × 1.8 × 1300mm
|
8.7kg
|
|
|
230 × 63 × 1.8× 1500mm
|
9.7kg
|
|
|
230 × 63 × 1.8 × 1524mm
|
10.4kg
|
|
|
230 × 63 × 1.8 × 1800mm
|
11.5 kg
|
|
|
230 × 63 × 1.8 × 1829mm
|
12.2 kg
|
|
|
230 × 63 × 1.8 × 2070mm
|
13.0kg
|
|
|
230 × 63 × 1.8 × 2134mm
|
14.1kg
|
|
|
230 × 63 × 1.8 × 2400mm
|
14.9kg
|
|
|
230 × 63 × 1.8 × 2438mm
|
15.9kg
|
|
|
230 × 63 × 1.8 × 2743mm
|
17.7 kg
|
|
|
230 × 63 × 1.8 × 3048mm
|
19.6 kg
|
|
|
Type 2:
|
|
|
|
Width x Height x Thickness x Length
|
Weight
|
|
|
230 × 63 × 1.8 × 600mm
|
4.5kg
|
|
|
230 × 63× 1.8×900mm
|
6.2kg
|
|
|
230 × 63× 1.8 × 914mm
|
6.3kg
|
|
|
230 × 63 × 1.8 × 1200mm
|
7.9kg
|
|
|
230 × 63 × 1.8 × 1219mm
|
8.1kg
|
|
|
230× 63 × 1.8 × 1300mm
|
8.5kg
|
|
|
230× 63 × 1.8 × 1500mm
|
9.6kg
|
|
|
230× 63 × 1.8 × 1524mm
|
9.8kg
|
|
|
230 × 63 × 1.8 × 1800mm
|
11.3kg
|
|
|
230 × 63 × 1.8 × 1829mm
|
11.5kg
|
|
|
230 × 63 × 1.8 × 2134mm
|
13.8kg
|
|
|
230 × 63 × 1.8 × 2438mm
|
15.5kg
|
|
|
230 × 63 × 1.8 × 2743mm
|
17.2kg
|
|
|
230× 63 × 1.8 × 3048mm
|
19.0kg
|
|
