Quick Details
-
Material:
-
Custom
-
Weight:
-
3.5
-
Size:
-
Dia 6 Inch, Length 40 inch
-
Power:
-
Custom
-
Productivity:
-
30000L/Hour 50000L/Hour
-
Weight (KG):
-
4 kg
-
Medium:
-
PP/PBT/GF
-
Removal Ratings:
-
1um, 5um, 10um,20um,100um
-
Length:
-
20inch,40inch,60inch
-
Connector:
-
M/PS/PD/K/Blank
-
O-ring options:
-
Silicone/Fluoroelastomer/EPDM/NBR/FEP Encapsulated
-
Diameter (OD):
-
6 inch=152mm
-
Maximum Operating Temperature:
-
82℃/120℃
-
Maximum Operating Pressure Differential:
-
0.38MPa/21℃ 0.24MPa/80℃
Quick Details
-
Core Components:
-
Filter
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
SoluGET
-
Material:
-
Custom
-
Weight:
-
3.5
-
Size:
-
Dia 6 Inch, Length 40 inch
-
Power:
-
Custom
-
Productivity:
-
30000L/Hour 50000L/Hour
-
Weight (KG):
-
4 kg
-
Medium:
-
PP/PBT/GF
-
Removal Ratings:
-
1um, 5um, 10um,20um,100um
-
Length:
-
20inch,40inch,60inch
-
Connector:
-
M/PS/PD/K/Blank
-
O-ring options:
-
Silicone/Fluoroelastomer/EPDM/NBR/FEP Encapsulated
-
Diameter (OD):
-
6 inch=152mm
-
Maximum Operating Temperature:
-
82℃/120℃
-
Maximum Operating Pressure Differential:
-
0.38MPa/21℃ 0.24MPa/80℃

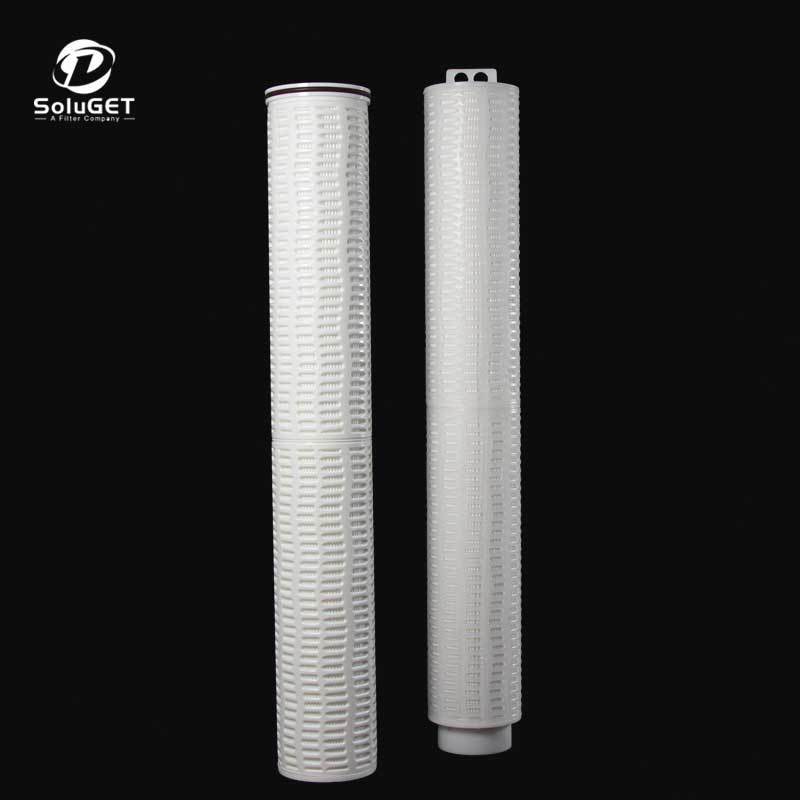

Product Description
HF Series
HF series filter elements have a variety of mediums to choose, including polypropylene, polyethylene terephthalate and glass fiber, which can meet the requirements of different working conditions.
Specification
Material Structure
|
|
|
|
|||
Model number
|
HFPP
|
HFPBT
|
HFGF
|
|||
Filter Medium
|
PP
|
PBT
|
GF
|
|||
Core, cage, and end caps
|
PP
|
PBT
|
PBT
|
Operating Characteristics
|
|
|
|
|||
Model Number
|
HFPP
|
HFPBT
|
HFGF
|
|||
Maximum Operating Temperature
|
82℃
|
120℃
|
120℃
|
|||
Maximum Operating Pressure Differential
|
0.38MPa/21℃
0.24MPa/80℃ |
0.38MPa/21℃
0.24MPa/80℃
|
0.38MPa/21℃
0.24MPa/80℃
|
Filter Cartridge Selection Chart
|
|
|
|
|
||||
HF Series
|
Removal Ratings
|
Length
|
Connector
|
O-ring options
|
||||
|
0.5um
|
330mm
|
Blank
|
Silicone
|
||||
|
1um
|
660mm
|
M
|
Fluoroelastomer
|
||||
|
3um
|
1550mm
|
PS=P+single O-Ring
|
EPDM
|
||||
|
5um
|
|
PD=P+double O-Ring
|
NBR
|
||||
|
10um
|
|
K
|
FEP Encapsulated Silicone
|
||||
|
100um
|
|
|
FEP Encapsulated FKM
|
