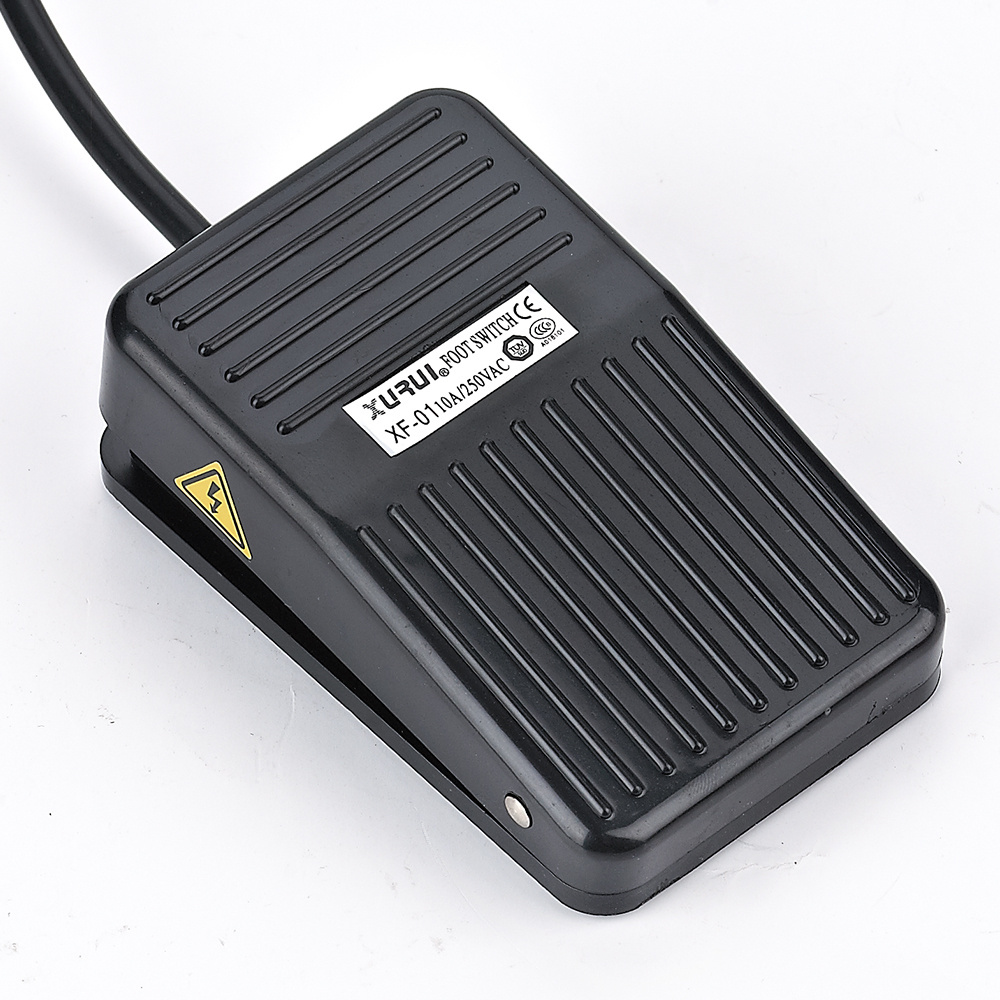

Quick Details
-
Model Number:
-
XF-01
-
Max. Current:
-
10A
Quick Details
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
XURUI
-
Model Number:
-
XF-01
-
Max. Current:
-
10A
- Kinds of shell’s material for choice, such as engineering plastic, steel panel, aluminium alloy, etc;
- Metal shell use the stregenthening to reast the surface, bears the impact, the wearability, thermostable;
- Cable lock-in jacket is made for the cable coming out and it is waterproof, grease proofing;
- Switch bottom is equipped with the rubber pad, for skidproof;
- Widely used for control in industrial automation equipments, transport, pressing, medical treatment, test and etc.
|
Contact resistance |
25mΩ(initial value) |
|
Insulation resistance |
100mΩ(Above) DC500V |
|
Withstand voltage |
≥2000VAC |
|
Mechanical Life |
1,000,000, above |
|
Electrical Life |
100,000 above |
|
Operating temperature |
-20~+70℃ |
|
Operating Humidity |
≤85% |
- According to the difference of load and current value, rated load should be taken note. Current value series is 10A, 15A and 16A;
- When transporting and moving, pls take note of the short circuit or open circuit may happen in internal wiring;
- Please take note of the level of protection when used in water, oil and bug dust. This series has protective type and unprotective type;
- The immediate cause for broken is stress and attack, please pay attention;
- Warning mark 'Danger! High Voltage!' and 'Take note!' remind us pay attention to personal safety and correctly operation.
|
Material |
Plastic |
|
Inner Switch |
|
|
Rating Load |
10A/250VAC |
|
Contact Form |
1C |
|
Outgoing Cable |
0.5mm² × 3 Wire × 0.25m |
|
Protection Degree |
IP54 |
