Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ZHONGHAOXING
-
Voltage:
-
220v/380v/customize
-
Dimension(L*W*H):
-
4300*1600*1800mm
-
Weight (KG):
-
3500 KG
-
Power (kW):
-
51.99kw
-
Product Name:
-
ML620DA Hot selling Four side combination woodworking machines 2 in 1
-
Function:
-
Wood Saw Wood Cut
-
(Converter)FEEDING SPEED:
-
5-35m/min
-
Color:
-
grey
-
Max. Planing Width:
-
200mm
-
Min planing width:
-
20mm
-
Max working thickness:
-
120mm
-
Min working thickness:
-
10mm
-
Saw shaft speed:
-
4500r/min
-
Saw shaft keyway:
-
12*4mm
Quick Details
-
Max.Planing Depth(mm):
-
120 mm
-
Max.Planing Width(mm):
-
200
-
Marketing Type:
-
Hot Product 2022
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ZHONGHAOXING
-
Voltage:
-
220v/380v/customize
-
Dimension(L*W*H):
-
4300*1600*1800mm
-
Weight (KG):
-
3500 KG
-
Power (kW):
-
51.99kw
-
Product Name:
-
ML620DA Hot selling Four side combination woodworking machines 2 in 1
-
Function:
-
Wood Saw Wood Cut
-
(Converter)FEEDING SPEED:
-
5-35m/min
-
Color:
-
grey
-
Max. Planing Width:
-
200mm
-
Min planing width:
-
20mm
-
Max working thickness:
-
120mm
-
Min working thickness:
-
10mm
-
Saw shaft speed:
-
4500r/min
-
Saw shaft keyway:
-
12*4mm

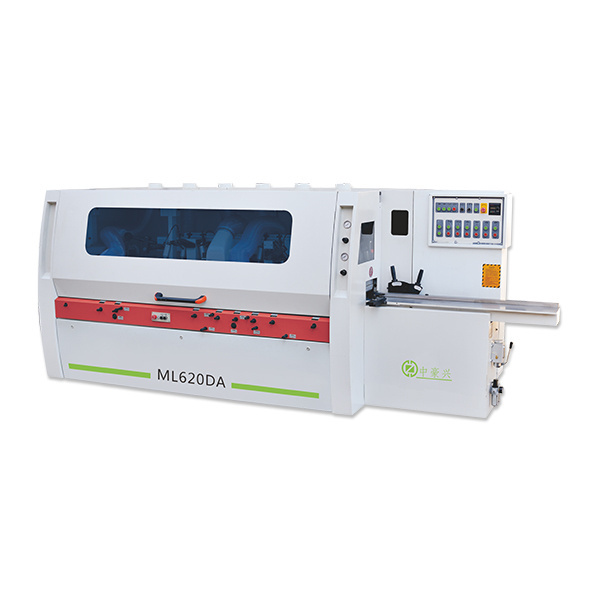

ML620DA Hot selling Four side combination woodworking machines 2 in 1
1.Professional solution, large quantities of wooden panels, sauna board, bed, sofa bottom seat board wood board material specifications.
2.Four side planer saw machine structure is reasonable, the operation is simple and convenient.
3. Saw shaft frequency independent operation, transportation, according to wood hardness choose reasonable transmission speed.
4. Hard chromium plating on the working table, smooth and wear resistance.
5. Four groups of active vertical out of the roller wheel, to ensure that the feeding material is smooth.
6. Saw blade adopts automatic je t cooling device with aut omatic jet, and the usage rate of saw blade is promoted.
7. High efficiency, energy saving, material saving, one machine with multiple purposes .
|
Specification type |
ZHX-M620DA/620D |
|
|
Technical Data |
Maximum working width |
20-200mm |
|
Max working Thickness |
10-120mm |
|
|
Feeding speed |
5-35m/min |
|
|
Cutter shaft diameter |
40mm |
|
|
Cutter shaft speed |
4500r/min |
|
|
Air pressure |
0.3-0.6mpa |
|
|
Motor power |
The first lower shaft |
5.5kw |
|
Feeding motor |
4kw |
|
|
Feeding rising motor |
0.75kw |
|
|
Total power |
51.99KW |
|
|
Cutter Diameter |
The first lower shaft |
125mm |
| Left and right vertical knife |
110-180mm |
|
|
Right Side Spindle diameter |
180-250mm |
|
|
Left Side Spindle diameter |
180-250mm |
|
|
Others |
Feeding Wheel Diameter |
140mm |
|
Weight(KG) |
3500KG |
|
|
Dimensions(L*W*H) |
4300*1600*1800mm |
|
