• Real-time data collection and upload
• 70 data packets collected per second
• Accurate receiving and effective filtering
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Thingyun
-
Product name:
-
MG3 USB gateway
-
Type:
-
2.4GHz WiFi Module
-
Warranty:
-
12 Months
-
Function:
-
Network Transimssion
-
Power supply:
-
USB Port (5V/1A)
-
Dimension:
-
50*24*10.5mm
-
Weight:
-
9g
-
Color:
-
White
-
Features:
-
Low Power Consumption
Quick Details
-
Chipset:
-
ESP32, ESP32
-
Application:
-
Asset tracking/People management
-
Model Number:
-
MG3
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Thingyun
-
Product name:
-
MG3 USB gateway
-
Type:
-
2.4GHz WiFi Module
-
Warranty:
-
12 Months
-
Function:
-
Network Transimssion
-
Power supply:
-
USB Port (5V/1A)
-
Dimension:
-
50*24*10.5mm
-
Weight:
-
9g
-
Color:
-
White
-
Features:
-
Low Power Consumption
Products Description

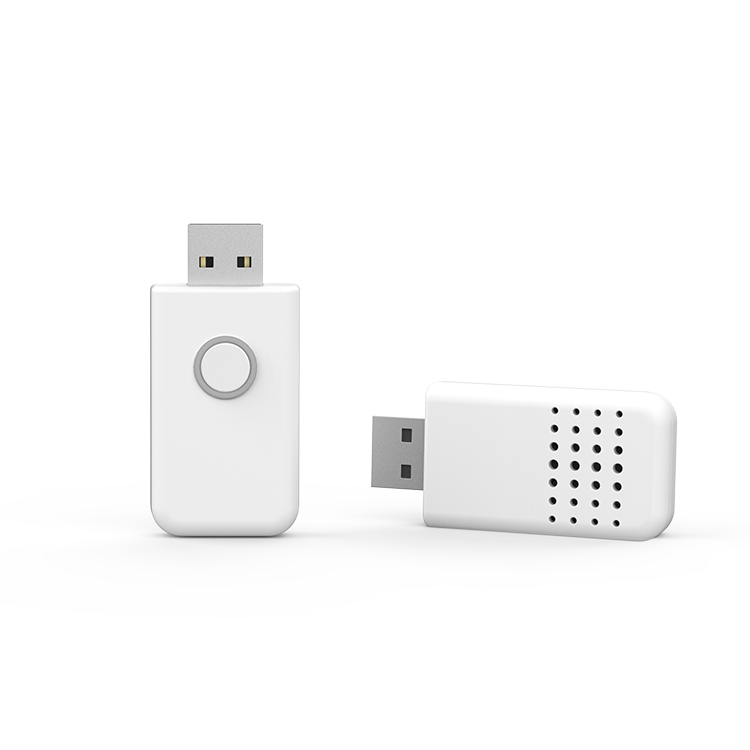

MG3 USB Mini Gateway, powered by USB, is a plug-and-play Bluetooth® Wi-Fi gateway, which is ideal for data transmission and collection of Bluetooth® devices. The collected Bluetooth device signals are encapsulated into JSON packets and sent over Wi-Fi. Users can remotely monitor Bluetooth devices on the cloud platform for typical uses. A system with MG3 can lower the cost and improve efficiency while maintaining precision, making it suitable for being deployed in logistics, healthcare, office, and other scenarios.
|
Name
|
MG3 USB Mini Gateway
|
|
Color
|
White
|
|
Working Temperature
|
-20℃ ~ 55℃
|
|
Weight
|
9 g
|
|
Material
|
ABS
|
|
Bluetooth Version
|
Bluetooth® LE 5.0
|
|
Power Supply
|
USB powered
|
|
Number of Received Broadcast Packets
|
70 packets / second
|
|
Scan Coverage
|
70 meters of covered radius
|
Benefits
• Compatible with various Bluetooth devices
• Tags, sensors and more under centralized control
• Tags, sensors and more under centralized control
• Data transmission under security protocols
• High data security
• High data security
• Lightweight and portable
• OTA upgrade supported, easy maintenance
• Powered by USB on the computer, power bank, and more
• OTA upgrade supported, easy maintenance
• Powered by USB on the computer, power bank, and more
How it Works
① Deploy Bluetooth beacons, sensors, and MG3 gateways according to demands.
②
Turn on Bluetooth beacons, sensors,and gateways and configure the gateway parameters through the App Gateway Configurer.
③
The MG3 gateway scans Bluetooth signals and collects data, and uploads to the corresponding server through
different network protocols.
④
After the data is parsed on the server, users can process and analyze to attain functions such as environmental monitoring and asset management.
loT Starter Kit MHS, with the MG3 bundled-in, ensures a cost-effective healthcare solution to accelerate the deployment and enhance the ad- vancement of smart healthcare, with everything you need in the Kit for patient safety and positioning, medical facility management, and route navigation.
FAQ
1. Do you provide an SDK or API?
Yes, we provide SDK/API along with the sample order.
2. Do you have a demo app for our test?
Yes, we have a demo app for you to scan and connect to configure parameters.
3. What's the delivery time when purchasing in quantities?
For the quantity between 200 PCs to 5K PCs, the delivery time is around 3 to 4 weeks; For the quantity over 5K PCs, it takes around 4 to 6 weeks.
4. What is your MOQ?
The sample MOQ is 3 PCs. If you need any modifications please kindly consult with our sales team.
