Quick Details
-
Brand Name:
-
EPEVER
-
Model Number:
-
Tracer10420AN
-
Work Time (h):
-
24H
-
Max PV Power:
-
5000W
-
Max PV Voltage:
-
200V
-
Certificate:
-
CE RoHs
-
Warranty:
-
1 year, 1 year
-
Product name:
-
MPPT Solar Controller
-
Nominal System Voltage:
-
12/24/36/48VDC or Auto
-
Battery Input Voltage Range:
-
8V~68V
-
Rated charge current:
-
100A
-
Dimension:
-
394*242*143mm
-
Net Weight:
-
7.4kg
-
Grounding:
-
Common negative grounding
-
Ambient temperature range:
-
-25℃~+60℃(Derate above 45℃)
-
Enclosure:
-
IP20
Quick Details
-
Type:
-
MPPT
-
Application:
-
Charger Controller, Solar Working Station, Voltage Controller, Solar System Controller
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
EPEVER
-
Model Number:
-
Tracer10420AN
-
Work Time (h):
-
24H
-
Max PV Power:
-
5000W
-
Max PV Voltage:
-
200V
-
Certificate:
-
CE RoHs
-
Warranty:
-
1 year, 1 year
-
Product name:
-
MPPT Solar Controller
-
Nominal System Voltage:
-
12/24/36/48VDC or Auto
-
Battery Input Voltage Range:
-
8V~68V
-
Rated charge current:
-
100A
-
Dimension:
-
394*242*143mm
-
Net Weight:
-
7.4kg
-
Grounding:
-
Common negative grounding
-
Ambient temperature range:
-
-25℃~+60℃(Derate above 45℃)
-
Enclosure:
-
IP20
Product Description

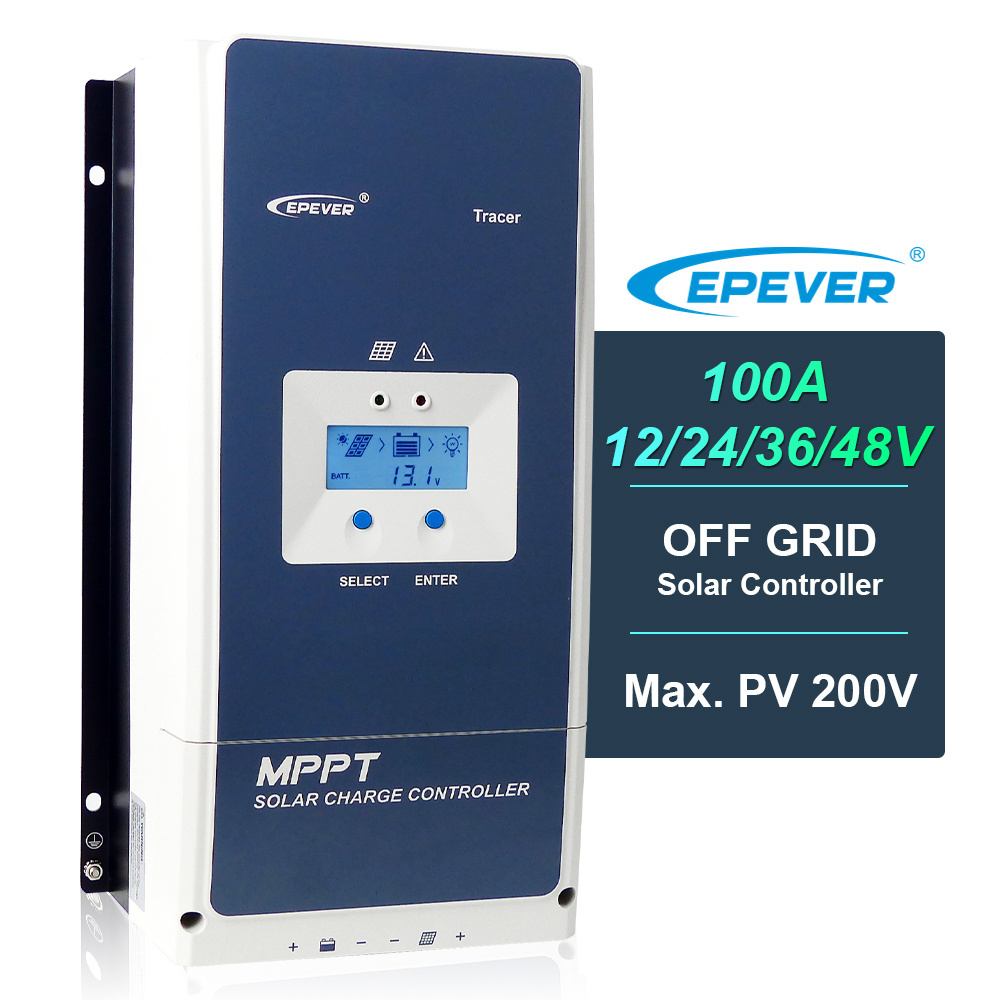

Tracer AN series controller, based on multiphase synchronous rectification technology (MSRT) and advanced MPPT control algorithm,with dual-core processor architecture and common negative design, has the features of high response speed, high reliability, and high industrial standard.
Features:
* CE certification(LVD EN/IEC62109,EMC EN61000-6-1/3)
* High quality & low failure rate components of ST and Infineon to ensure the product’s life
* Advanced MPPT technology & ultra-fast tracking speed, with tracking efficiency no less than 99.5%
* Maximum DC/DC transfer efficiency is as high as 98.6%, full load efficiency is up to 98%
* Advanced MPPT control algorithm will minimize the MPP loss rate and loss time
* The accuracy of the recognition and tracking at the highest point of multiple-peaks MPP
* The wider range of MPP operating voltage.
* Auto control system to limit the charging power & current go over the rated value.
* Support 4 charging options: Sealed, Gel, Flooded and User.
* Battery temperature compensation function
* Real-time energy recording and statistical function
* Automatic over-temperature power reduction function
* Hundred percent full load operation in working environment temperature range within charging & discharging
* Support up to 8 units in parallel to expand system
* Load relay control external load switch signal to realize diversified load work modes
* The first and the second disconnection of load control, contain two relay’s contact.
* Auto-control of utility and generator relay design
* Utility or generator auto-control relays make it easy to compose the hybrid power system
* The remote temperature and the voltage sensor design will collect accurate data of battery temperature and voltage
* Isolated RS485 with 5VDC/200mA to protect output for no power devices with MODBUS protocol
* To monitor or set the parameters by using the phone Apps or PC software.
Features:
* CE certification(LVD EN/IEC62109,EMC EN61000-6-1/3)
* High quality & low failure rate components of ST and Infineon to ensure the product’s life
* Advanced MPPT technology & ultra-fast tracking speed, with tracking efficiency no less than 99.5%
* Maximum DC/DC transfer efficiency is as high as 98.6%, full load efficiency is up to 98%
* Advanced MPPT control algorithm will minimize the MPP loss rate and loss time
* The accuracy of the recognition and tracking at the highest point of multiple-peaks MPP
* The wider range of MPP operating voltage.
* Auto control system to limit the charging power & current go over the rated value.
* Support 4 charging options: Sealed, Gel, Flooded and User.
* Battery temperature compensation function
* Real-time energy recording and statistical function
* Automatic over-temperature power reduction function
* Hundred percent full load operation in working environment temperature range within charging & discharging
* Support up to 8 units in parallel to expand system
* Load relay control external load switch signal to realize diversified load work modes
* The first and the second disconnection of load control, contain two relay’s contact.
* Auto-control of utility and generator relay design
* Utility or generator auto-control relays make it easy to compose the hybrid power system
* The remote temperature and the voltage sensor design will collect accurate data of battery temperature and voltage
* Isolated RS485 with 5VDC/200mA to protect output for no power devices with MODBUS protocol
* To monitor or set the parameters by using the phone Apps or PC software.
Specification
|
Warranty
|
1 year
|
|
Nominal System Voltage
|
12/24/36/48VDC or Auto
|
|
Battery Input Voltage Range
|
8V~68V
|
|
Rated charge current
|
100A
|
|
Dimension
|
394*242*143mm
|
|
Net Weight
|
7.4kg
|
|
Grounding
|
Common negative grounding
|
|
Warranty
|
1 year
|
|
Ambient temperature range
|
-25℃~+60℃(Derate above 45℃)
|
|
Enclosure
|
IP20
|
