Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
LANGCHEN
-
Dimension(L*W*H):
-
customzied
-
Weight:
-
0.2 KG
-
Warranty:
-
1 year
-
Working Temperature Range:
-
0 - 250 ℃
-
Usage condition::
-
max temperature 250 ℃
-
Certification:
-
CE ROGH ISO
-
Warrently:
-
1 year
-
Normal temperature resistance:
-
customized
-
wattage:
-
customized
-
voltage:
-
customized
-
thickness:
-
1.5 Mm (standard)
-
Use:
-
Heat insulation and remove moisture
-
MOQ:
-
1 PCS
-
Cable length:
-
customized
Quick Details
-
Type:
-
Air Heater
-
Power Source:
-
Electric
-
Voltage:
-
customzied
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
LANGCHEN
-
Dimension(L*W*H):
-
customzied
-
Weight:
-
0.2 KG
-
Warranty:
-
1 year
-
Working Temperature Range:
-
0 - 250 ℃
-
Usage condition::
-
max temperature 250 ℃
-
Certification:
-
CE ROGH ISO
-
Warrently:
-
1 year
-
Normal temperature resistance:
-
customized
-
wattage:
-
customized
-
voltage:
-
customized
-
thickness:
-
1.5 Mm (standard)
-
Use:
-
Heat insulation and remove moisture
-
MOQ:
-
1 PCS
-
Cable length:
-
customized
Description
Silicone softness and tropical heating film, heating blanket Jinsheng electric heat Jinsheng silicone electric heating film silica gel heater is mainly composed of nickel chromium alloy electric heating wire and glass fiber reinforced silicone rubber insulation cloth high temperature compression. It has the characteristics of fast heating, uniform temperature, high thermal efficiency, high strength, easy to use, long safe life, not easy to aging, can bend the surface of the object, can evenly transfer heat to each part in contact with the heated object.
Technical parameter:
Temperature use range-60℃ - -250℃ long-term heating, heating core has high resistance gold wire and metal etching foil two kinds.
1) The highest temperature resistance of insulation materials: 300℃
2) Maximum operating temperature: 250℃
3) Insulation resistance: 200 MΩ / DC 1000V
4) Compressive strength: AC1500v / 5S
5) Power deviation: ± 5%
6) Maximum 1.2 mXm minimum 15mm 15mm thickness 1.5mm (thinnest 0.8mm, maximum thickness 4.5mm) Lead length: standard 130mm, beyond the above size can be specially ordered.
7) The back plus back glue or called pressure sensitive glue, double-sided adhesive, can make the silica gel heating sheet firmly stick to the surface of the added object. Easy to install.
Note: Production can be made according to the voltage, power, size, product shape (such as oval, cone, etc.).
Installation method: this product due to different shapes, according to the actual site selection of pressure, double-sided adhesive paste, punching positioning, room temperature vulcanization and other methods for installation and use. Safety life is up to five years.

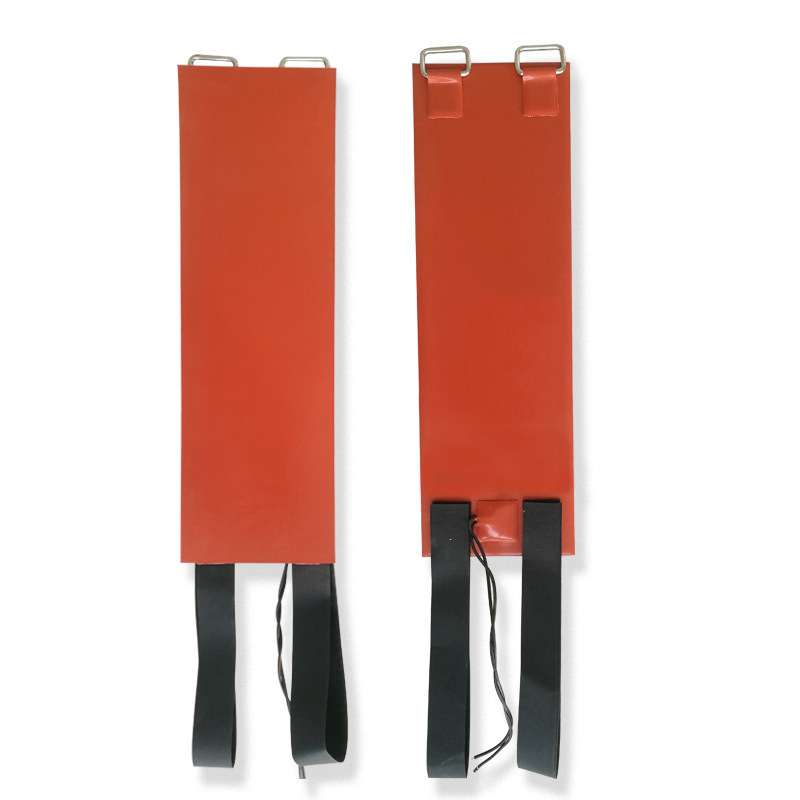

PHOTO SHOW :
Delivery time
---7-15 working days if uugent can be negotiable
Shipping method
---Express: UPS, FEDEX, DHL, TNT, EMS, ect
---Air shipping: Please choose your convenient shipping method according your detail requirement.
---Sea shipping: large quntity order
How to oder products?
---Send inquiry to us or contact with us via email,skype or trademanager
---Confirming the model, specification, price, qty, delivery time and payment method
---Sending invoice to customer
---Customer makes payment and send us receipt
---Arranging production
---Sending products picture to customer after the production is ready
---Shipping products to customer
