Quick Details
-
Model Number:
-
LS2T-B(J2-B)
-
The range of wire:
-
CU 0.30-1.20MM,AL0.30-1.40MM
-
Machine Type:
-
Press Cold welding manipulator
-
Warranty:
-
1 Year
-
Applicable Industries::
-
cable making Industries
Quick Details
-
Use:
-
cold welding
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
SWAN INT'L
-
Model Number:
-
LS2T-B(J2-B)
-
The range of wire:
-
CU 0.30-1.20MM,AL0.30-1.40MM
-
Machine Type:
-
Press Cold welding manipulator
-
Warranty:
-
1 Year
-
Applicable Industries::
-
cable making Industries
Application
For Cu 0.30-1.20 mm Al 0.30-1.40 mm wire welding
Details Images
Product Description

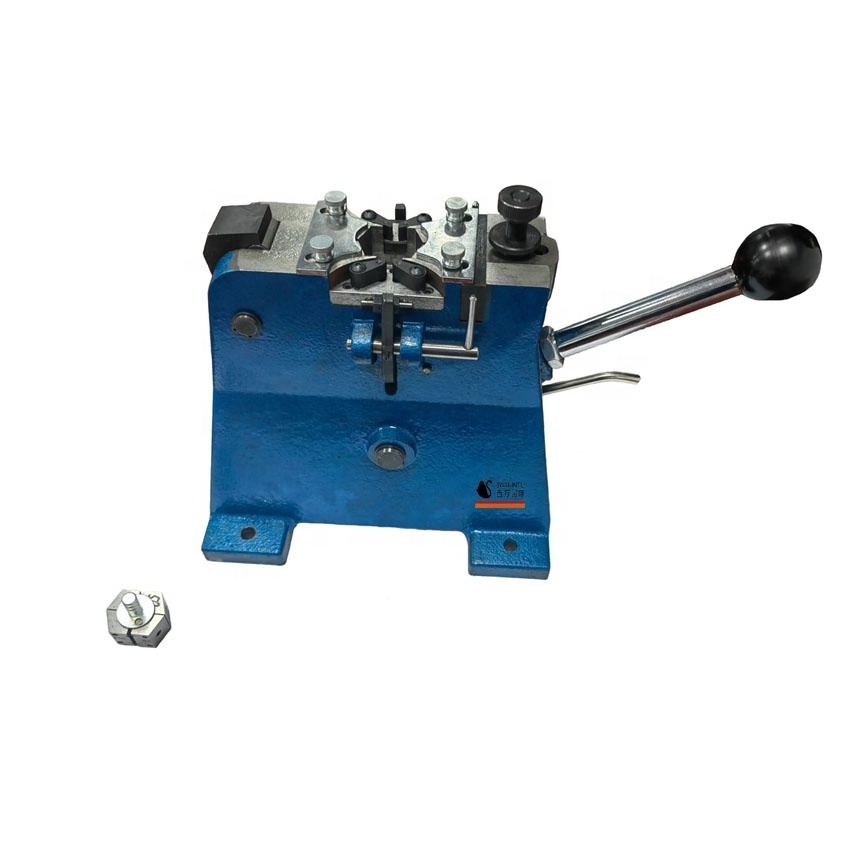

J2 Desktop Cold Welding Machine
J2 Desktop Cold welding machine is one of our special products, precision casting, the inner groove and plane of the upper body are finely ground by grinding machine, its opening mechanism is fully enclosed, which can prevent the copper chips from jamming the machine and causing bad wiring, so the design of the whole machine is very reasonable and ensures high precision. It is especially suitable for wiring in enameled wire workshop and finished product workshop. The machine is mainly used for export or domestic large enterprises.
Related Product
|
Model
|
J0
|
J1
|
J2
|
J3
|
J5
(with 5.5KW)
|
|
Wire range for Cu(mm)
|
0.045-0.15
|
0.10-0.50
|
0.30-1.20
|
1.00-3.25
|
4.00-8.00
|
|
wire range for Al(mm)
|
0.07-0.15
|
0.10-0.50
|
0.30-1.40
|
1.00-5.00
|
4.00-15.00
|
|
Size(mm)
|
150*40*155
|
160*50*160
|
220*160*230
|
280*180*300
|
1190*570*1100
|
|
Weight(g)
|
500
|
650
|
1100
|
3300
|
650k
|
About cold welder(cold welding machine)
The cold welder is a tool to joint nonferrous wires with the method of cold butt weld,There is no need to use electricity,heat,flux and electrode,thus saving such troublesome preteating works of metal wire as cutting and cleaning the wire.
It only needs to thread two wire ends into a welding die,to match a suitable die depending upon the size of the wire,and then to press a handle of the welding machine several times,and the two wire ends get jointed.The result of such a welding is the same as the wire before welding,its tensile strength at the joint of the welded wire is good(equal to or even bigger than other wire)and is not broken at th joint.lts resistivity is not bigger than that of original wire ,therefore such welding is not to be compared with other welding method.
The merit of cold welding means simplicity in operation,with no need of extraordinary skill.With the method it is possible to ensure the reliability of welding,it is the most reliable and the most economic method to joint nonferrous wires and their allbys.
The merit of cold welding means simplicity in operation,with no need of extraordinary skill.With the method it is possible to ensure the reliability of welding,it is the most reliable and the most economic method to joint nonferrous wires and their allbys.
Specification
|
item
|
value
|
|
Place of Origin
|
China
|
|
|
Shanghai
|
|
Brand Name
|
SWAN INT'L
|
|
Model Number
|
LS2T-B(J2-B)
|
|
Usage
|
cold welding
|
|
LxWxH
|
220x160x230mm
|
|
Weight
|
11KG
|
