Quick Details
-
Product name:
-
SOUTH G1
-
channel:
-
220 channels
-
Weight:
-
970g
-
UHF Range:
-
5 km optimal conditions
-
Software:
-
EGstar ,survce ,fieldgenius optional
-
GPS:
-
L1C/A, L1C,L2C, L2E, L5
-
Galileo:
-
E1, E5A, E5B,GALILEO GIOVE-B, GIOVE-A
-
BDS:
-
B1, B2,B3
-
Humidity:
-
100% condensation
-
Dust and Waterproof:
-
IP67
Quick Details
-
Warranty:
-
One year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SOUTH
-
Product name:
-
SOUTH G1
-
channel:
-
220 channels
-
Weight:
-
970g
-
UHF Range:
-
5 km optimal conditions
-
Software:
-
EGstar ,survce ,fieldgenius optional
-
GPS:
-
L1C/A, L1C,L2C, L2E, L5
-
Galileo:
-
E1, E5A, E5B,GALILEO GIOVE-B, GIOVE-A
-
BDS:
-
B1, B2,B3
-
Humidity:
-
100% condensation
-
Dust and Waterproof:
-
IP67
Product Description
SOUTH Galaxy G1, new generation integrated RTK system with smaller size and innovative design, leads
the direction of new generation RTK with excellent performance, provides high-efficiency and intelligent surveying experience to customers. It isn't simply smaller, it's better in everywhere.
the direction of new generation RTK with excellent performance, provides high-efficiency and intelligent surveying experience to customers. It isn't simply smaller, it's better in everywhere.
1.220 channels, support GPS/GLONASS/Galileo/BeiDou/SBAS
2.SuperRTK technology : Radio Router/ Radio Repeater/Eagle mode/CSD model/LARK mode
3.Buil-in radio modem with 1/2/3W
4.Built-in network modem (4G/3G/2G) and UHF data transmission
5.LINUX OS, Web UI, wifi, SMS functions, for smart and easy access to management and settings
6.8Gb SDD Built-in Memory; OTG function,for downloading data in field
7.Tilt Survey and E-Bubble function
8.Small, lightweight and robust design suitable for a diverse work environment
Specification
|
Survering Performance
|
|
|
|
Channel
|
220 Channels
|
|
|
Signal Tracking
|
BDS B1, B2, B3
|
|
|
|
GPS L1C/A, L1C, L2C, L2E, L5
|
|
|
|
GLONASS L1C/A, L1P, L2C/A, L2P, L3
|
|
|
|
SBAS L1C/A, L5(Just for the satellites supporting L5)
|
|
|
|
Galileo GOIVE-A, GOIVE-B, E1, E5A, E5B
|
|
|
GNSS features
|
Positioning output rate: 1Hz~50Hz
|
|
|
|
Initialization time: <10s
|
|
|
|
Initialization reliability: >99.99%
|
|
|
Positioning Precision
|
|
|
|
Code differential GNSS Positioning
|
Horization : ± 0.25m + 1ppm
|
|
|
|
Vertical: ± 0.5m + 1ppm
|
|
|
|
SBAS positioning accuracy: typically<5m 3DRMS
|
|
|
Static GNSS Surveying
|
Horization : ± 2.5 mm + 0.5 ppm
|
|
|
|
Vertical: ± 5 mm + 0.5 ppm
|
|
|
Real-Time Kinematic Surveying
|
Horization: ± 8 mm + 1 ppm
|
|
|
|
Vertical: ± 15 mm + 1 ppm
|
|
|
Network RTK
|
Horization: ± 8 mm + 0.5 ppm
|
|
|
|
Vertical: ± 15 mm + 0.5 ppm
|
|
|
RTK initialization time
|
2~8s
|
|
|
User Interaction
|
|
|
|
Operating system
|
Linux
|
|
|
Buttons
|
Single button operation
|
|
|
Indicators
|
Three LED indicators lights
|
|
|
Web UI
|
Freely to configure and monitor the receiver by accessing to the
|
|
|
|
web server via WI-FI and USB
|
|
|
Voice guide
|
iVoice intelligent voice technology provides status and voice guide
|
|
|
|
Supporting Chinese,English,Korean,Russian,Portuguese,Spanish,
|
|
|
|
Trukish and user define
|
|
|
Secondary development
|
Providing secondary development package
|
|
|
Hardware performance
|
|
|
|
Dimension
|
134×134×118 (mm)
|
|
|
Weight
|
1kg(including installed battery)
|
|
|
Material
|
Magnesium aluminum alloy shell
|
|
|
Operating
|
45℃~+60℃
|
|
|
Storage
|
55℃~+85℃
|
|
|
Humidity
|
100% Non-condensing
|
|
|
Waterproof/Dustproof
|
IP67 standard,protected from long time immersion to depth of 1m
|
|
|
|
IP67 standard,fully protected against blowing dust
|
|
|
Shock and Vibration
|
Withstand 3 meters pole drop onto the cement ground naturally
|
|
|
Power Supply
|
9-25V DC, overvoltage protection
|
|
|
Battery
|
Rechargeable,removable Lithium-ion battery,7.4V; standard four batteries
|
|
|
|
power package(optional)
|
|
|
Battery Life
|
Single battery: > 7h(static mode)
|
|
|
|
> 5h(internal UHF base mode)
|
|
|
|
> 6h(rover mode)
|
|
|
Communications and Data Storage
|
|
|
|
I/O Port
|
5PIN LEMO external power port + RS232
|
|
|
|
7PIN external USB (OTG) + Ethernet
|
|
|
|
1 radio antenna interface, SIM card solt
|
|
|
Wireless Modem
|
Built-in radio, 1W/2W/3W switchable,typical work range can be 8KM
|
|
|
|
Raido and internet repater switchable
|
|
|
Frequency range
|
410-470MHZ
|
|
|
Communication protocol
|
Trim Talk450s,TrimMark3,PCC EOT,SOUTH
|
|
|
Cellular Mobile Network
|
WCDMA/CDMA2000/TDD-LTE/FDD-LTE 4G network modem, downward
|
|
|
|
compatible with 3G GPRS/EDGE
|
|
|
Double Module Bluetooth
|
BLEBluetooth 4.0 standard,support for android,ios cellphone connection
|
|
|
|
Bluetooth 2.1+EDR standard
|
|
|
NFC Communication (Optional)
|
Realizing close range(shorter than 10cm)automatic pair between receiver and
|
|
|
|
controller(controller equipped NFC wireless communication module needed)
|
|
|
External Devices
|
Optional external GPRS/EDGE dual-mode communication module, switchable;
|
|
|
|
allow to connect external WLAN card
|
|
|
WIFI
|
|
|
|
Standard
|
802.11 b/g standard
|
|
|
WIFI Hotspot
|
The WIFI hotspot allows any mobile terminal to connect and access to the
|
|
|
|
internal webserver for the control and moditor receiver
|
|
|
WIFI data link
|
To work as the datalink that receiver is able to broadcast and receive
|
|
|
|
differential data via WIFI
|
|
|
Data Storage/Transmission
|
|
|
|
Data Storage
|
8GB SSD internal storage
|
|
|
|
Support external USB storage and automatical cycle storage
|
|
|
|
Changeable record interval, up to 50Hz raw data download
|
|
|
Data Transmission
|
USB data transmission, supporting FTP/HTTP data download
|
|
|
Data Format
|
Differential data format: CMR+, CMRx, RTCM2.1, RTCM2.3, RTCM3.0,
|
|
|
|
RTCM3.1,RTCM3.2
|
|
|
|
GPS output data format : NMEA 0183, PJK plane coordinates,
|
|
|
|
Binary code, Trimble GSOF
|
|
|
|
Network model support: VRS, FKP, MAC, fully support NTRIP protcol
|
|
|
Inertial sensing system
|
|
|
|
Tilt Survey
|
Built-in tilt compensator, correcting coordinates automatically according to the
|
|
|
|
tilt direction and angle of the centering rod
|
|
|
Electronic bubble
|
Controller software display electronic bubble,
|
|
|
|
checking leveling status of the centering rod real time
|
|
|
Thermometer
|
Bulit-in themomter sensors, adopting intelligent temperature control technology
|
|
|
|
which can mornitor and adjust the temperature of receiver in real time
|
|

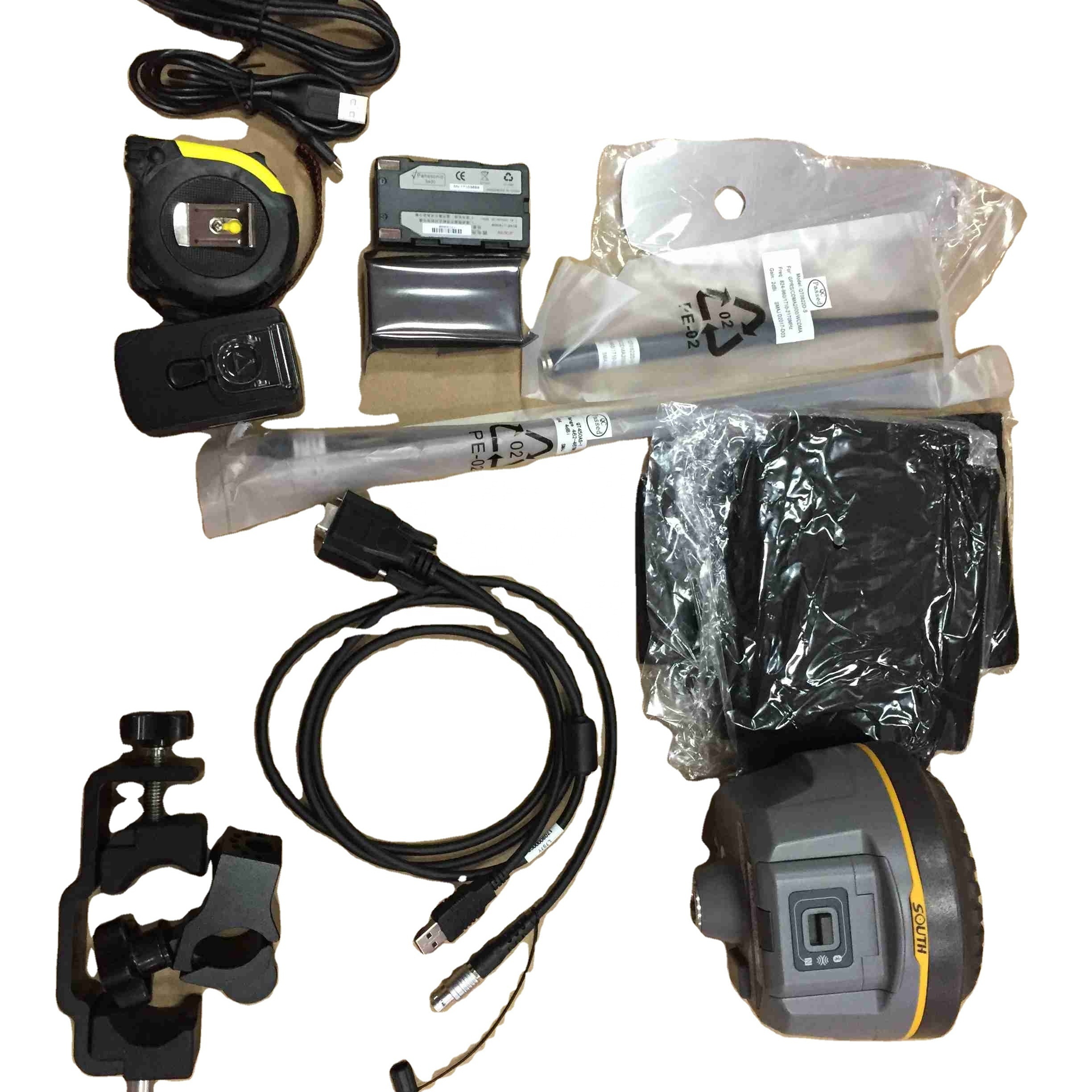

Packing & Delivery
