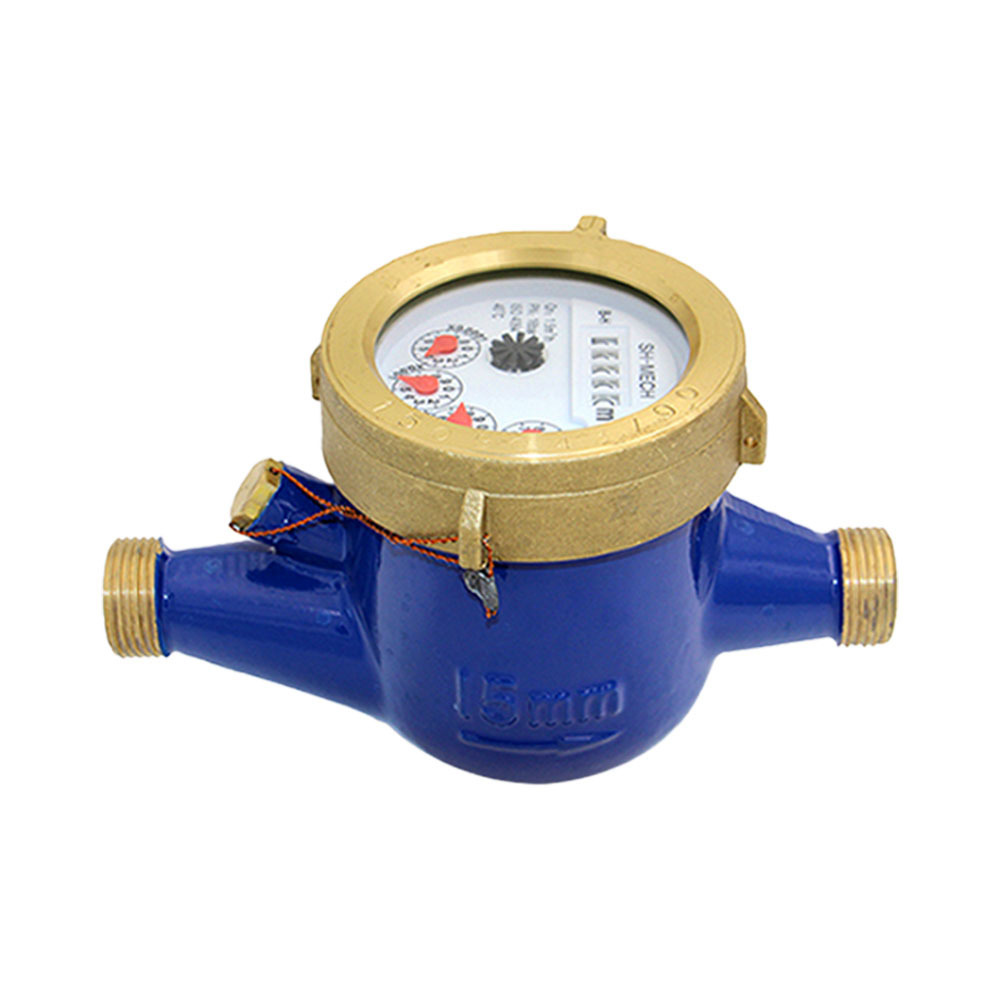

2024 Wesdom ISO4064 Multi Jet Wet Type Brass Volumetric Water Meter Horizontal Volumetric Nylon Water Meter price

2024 Wesdom ISO4064 Multi Jet Wet Type Brass Volumetric Water Meter Horizontal Volumetric Nylon Water Meter price

FOB Reference Price: Get Latest Price

≥5 Pieces

US $11.25

≥500 Pieces

US $10.25

≥1000 Pieces

US $9.35

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: WESDOM

Model Number:: LXHY

Body material:: Brass/Plastic

Gearing box:: HIPS

Connection:: Male Thread

Pressure:: less than1.6MPa

Grade:: CLASS B

Precision:: ±5%

Standard:: ISO4064

Temperature:: 0.1℃~40℃

Color:: Blue

Quick Details

Warranty:: 12 months

Type:: Multi-jet meters, Compound meters

Place of Origin:: Henan, China

Brand Name:: WESDOM

Model Number:: LXHY

Body material:: Brass/Plastic

Gearing box:: HIPS

Connection:: Male Thread

Pressure:: less than1.6MPa

Grade:: CLASS B

Precision:: ±5%

Standard:: ISO4064

Temperature:: 0.1℃~40℃

Color:: Blue

Features

--Magnetic Drive,Lower transmission resistance.
--Magnetic shield, for external magnetic field protection.
--Sealed dry register ensures long time clear reading.
--External regulating device.

Accressories

2pcs coupling. 2pcs coupling nuts and 2pcs washers.

Product name:	Water meter
Port Size:	DN15~DN20mm
Brand Name:	WESDOM
Medium：	Water
Class:	Class C
Connection:	Threade NPT Or BSP
Pressure:	PN16
Working Temperature:	0.1℃~50℃
Certification:	ISO4064
Customized support:	OEM

Standards Compliance
Technical data conform to international standard ISO 4064.

Application
Measuring the volume of cold portable water passing through the pipeline.Also suitable for pure water.

Optional Features
--Register sealed type: Dry type; Semi-dry type; Super-dry type.
--Accuracy: R=80; 100;125;160.
--Size: 15~50mm.
--Cold / hot water.
--Non return valve.- Reed switch option.
--Several lengths and connections availavle on request.
--Thread end type: BSP/NPT.

Working Conditions
--The Max.Admissible water pressure 1.6MPa.
--Resisting water temperature: 50℃.

WESDOM GROUP has been in valve industry for more than 25 years , has exported products to 32 countries like Tanzania, Zambia, South Africa, Pakistan, Malaysia, UAE, Saudi Arabia, Turkey, Peru, Mexico, etc. Meanwhile, WESDOM GROUP also involved in many projects which are for construction, petroleum, water and gas territories.

Are you the manufacture?
Yes, we are professional on valves, fittings and water meters, own 5 factories in China. In addition to valves, pipe fittings and water meters, WESDOM is also committed to the development of piping relating products in order to provide customers with more convenient services. Now WESDOM is not only a valve manufacturer, but also an industrial piping solution provider.
How you ensure your quality?
Before delivery, we make 100% test for each product to ensure its quality, also we will supply the MTC, Certificate of Quality and Certificate of Warranty. Our warranty is 18months.
Do you have engineers in your company?
Yes, we have engineers in each of our factories, and also there are 5 engineers in our office, so we not only could supply professional solutions to you, also we could supply installation guidance and excellent after-service.
How to get free samples?
Send your address,your telephone number,post code,and express account number to our mail box,and told us which samples you need and samples specification.
Can you produce products with my own brand?
Yes,we can offer OEM services.
Do you have any international certificate?
Yes,we have API, ISO and etc.
How long does my order take to be delivered?
It usually takes 5 to 30 days,which generally depends on the quantity of your order and our storage.
What if I find a problem with the product?
Okay, we will solve it for you!
