Quick Details
-
Controller Battery:
-
4.8V
-
Type:
-
DIY Toy
-
Description:
-
Intelligent Robot Toys
-
Color:
-
Customized
-
Name:
-
Multifunction Battery Operated Robot
-
Certificate:
-
ROHS
-
Pack:
-
Color Box
-
Selling point:
-
Great Gift
-
Product Name:
-
2WD Mini Robot Mobile Platform Kit
-
Feature:
-
Multi-function
-
Toy:
-
DIY Educational Robot Toy
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
FT-DC-130D
-
Remote Distance:
-
100M
-
Controller Battery:
-
4.8V
-
Type:
-
DIY Toy
-
Description:
-
Intelligent Robot Toys
-
Color:
-
Customized
-
Name:
-
Multifunction Battery Operated Robot
-
Certificate:
-
ROHS
-
Pack:
-
Color Box
-
Selling point:
-
Great Gift
-
Product Name:
-
2WD Mini Robot Mobile Platform Kit
-
Feature:
-
Multi-function
-
Toy:
-
DIY Educational Robot Toy
Product Description
We offer customized services. Please let us know your requirements.
Contact us
Skype: Jenny-fitec
Whats App: 0086 13686413808
WeChat: 0086 13686413808
Specifications:

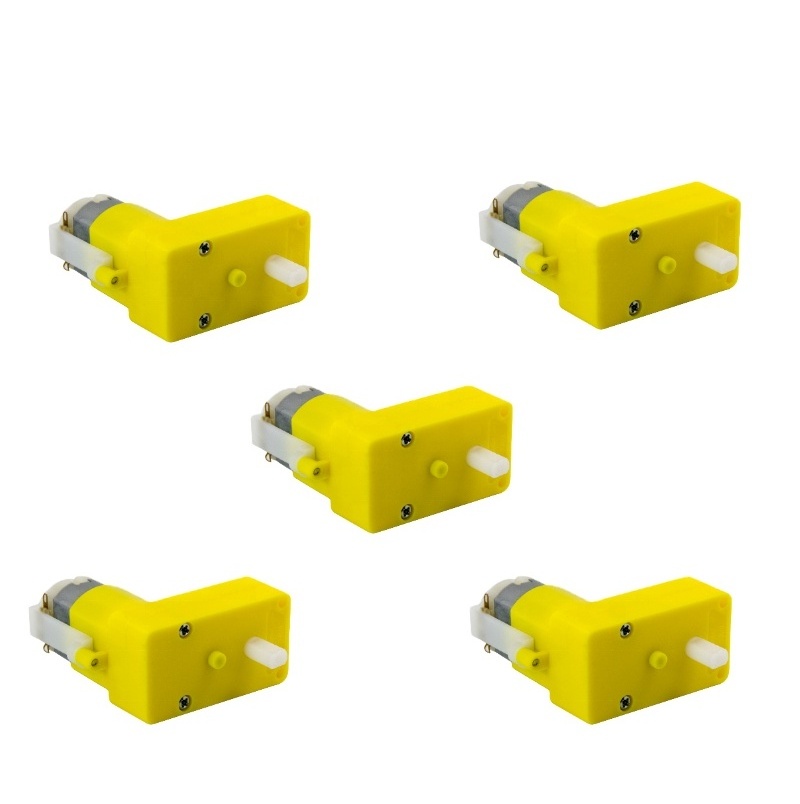

Motor: Core Motor
Operating Speed (3V): 200+/-10% RPM
Operating Speed (6V): 90+/-10% RPM
Stall Torque (6V): 0.8kg.cm
Dimensions: 70x22x18mm
Weight: 30g
Gear Ratio: 1:48
DC130 TT motor box GearRatio:1:48,1:120,1:180, 1:220,1:256,1:288) total 6 types
Operating Voltage:3.0~12.0V
Output Torque:1~5 kgf.cm
MOTOR:carbon
Connector Wire Length: 100 mm.
Advantage:
1.Imported aluminum,
The motor is made of high-quality imported aluminum, corrosion-resistant and not easy to rust
2.High quality coil
Adopt domestic high-quality coil
It is more durable and not easy to generate heat
3.Processing technology
Motor drive external wiring
Use different colors, easy to distinguish
More suitable for production demand
The speed sensor is a speed measurement module with wide voltage, high resolution, short response speed, and switch output. It can measure the motor speed when paired with a black encoder (the specifications of the measured motor are related to the encoder). The D-shaped hole diameter of the encoder provided now is 4mm. It can be used for motors with an output shaft diameter of 4mm.
On the small car, there are two wheels that are not equipped with gears. By using a D-shaped hole encoder, we can easily install the encoder onto the rotating shaft of the tank wheel. As a 20 wire encoder is used, the diameter of the tank wheel is 4.7cm. Therefore, we can calculate the minimum accuracy that the encoder can detect as 3.14 * 4.7cm/20=0.74 cm=7.4 mm. Can meet the ordinary precision control of tank vehicle motion;
1> Module operating voltage: 4.5-5.5V;
2> Pressure drop of launch tube: Vf=1.6V
3> Current of transmitting tube: If<20mA
4> Signal output: A and B channels; TTL level
5> Resolution accuracy: 0.01mm
6> Measurement frequency: 100KHz
7> Disc diameter: 24mm;
8> D-shaped hole inner diameter of coding disc: 4mm;
9> Encoding disk resolution: 20 lines;
10> Speed sensor configuration: This configuration can measure the speed of one motor;
Specification
|
item
|
value
|
|
Place of Origin
|
China
|
|
|
Guangdong
|
|
Model Number
|
FT-DC-130D
|
|
Remote Distance
|
100M
|
|
State of Assembly
|
Unassembled Kit
|
|
Controller Battery
|
4.8V
|
|
Control Channels
|
12 Channels & Up
|
|
Package Includes
|
Original Box
|
|
Material
|
Resin
|
|
Power Source
|
Electric
|
|
Scale
|
1:12
|
|
Features
|
App-Controlled, Auto Return, GPS, Integrated Camera
|
|
Age Range
|
0 to 24 Months, 8 to 13 Years, 14 Years & up
|
|
Video Capture Resolution
|
8K UHD
|
|
Camera Mount Type
|
3-axis Gimbal
|
|
Operator Skill Level
|
Intermediate
|
|
Indoor/Outdoor Use
|
Outdoor
|
|
Type
|
DIY Toy
|
|
Description
|
Intelligent Robot Toys
|
|
Color
|
Customized
|
|
Name
|
Multifunction Battery Operated Robot
|
|
Certificate
|
ROHS
|
|
Pack
|
Color Box
|
|
Selling point
|
Great Gift
|
|
Product Name
|
2WD Mini Robot Mobile Platform Kit
|
|
Feature
|
Multi-function
|
|
Toy
|
DIY Educational Robot Toy
|
Packing & Delivery
CARTON BOX
