Suits to pack candy, tea, nuts, sugar, dates, biscuit, frozen food, rice, cookies, coffee beans, cereals, dried fruit, chocolate, expanded food, microwave popcorn, grain, snack food, vegetable, salad, all kinds of nuts and pet food etc.
- Product Details
- {{item.text}}
Quick Details
-
Weight (KG):
-
850
-
Voltage:
-
220V/380V Customized
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Honetop
-
Dimension(L*W*H):
-
(L)3500*(W)2500*(H)3700mm
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Main Function:
-
biltong packaging machine
-
Machine Material:
-
#304 stainless steel
-
Packing Material:
-
OPP/CPP. PET/PE. PET-AL/PE composite material
-
Filling range:
-
10-2000g
-
Capacity:
-
15-70bags/min
-
Film Width:
-
180-420mm
-
Bag-making Size:
-
(L)80-300mm,(W)80-200mm
-
Machine Warranty:
-
one year, longlife service
Quick Details
-
Function:
-
FILLING, Sealing, Wrapping, counting,bag-making,coding
-
Packaging Type:
-
Film
-
Packaging Material:
-
Paper, Plastic
-
Weight (KG):
-
850
-
Voltage:
-
220V/380V Customized
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Honetop
-
Dimension(L*W*H):
-
(L)3500*(W)2500*(H)3700mm
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Main Function:
-
biltong packaging machine
-
Machine Material:
-
#304 stainless steel
-
Packing Material:
-
OPP/CPP. PET/PE. PET-AL/PE composite material
-
Filling range:
-
10-2000g
-
Capacity:
-
15-70bags/min
-
Film Width:
-
180-420mm
-
Bag-making Size:
-
(L)80-300mm,(W)80-200mm
-
Machine Warranty:
-
one year, longlife service
Product Description

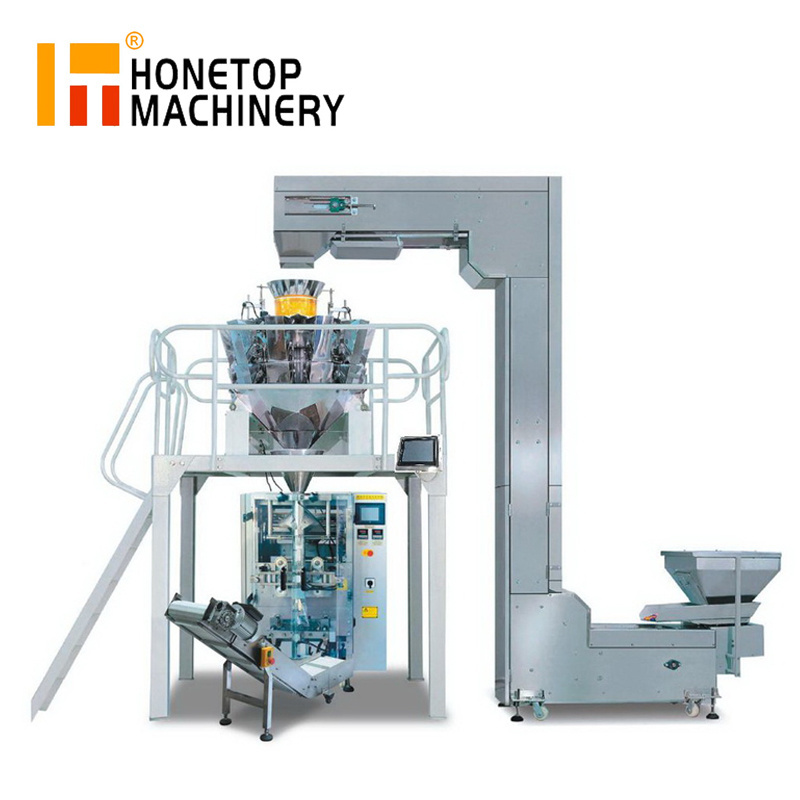

Fully Automatic Precision Weight 500g 1Kg Bag Nuts Coffee Beans Rice High Quality Biltong Packaging Machine
|
SPECIFICATIONS FOR PACKAGING MACHINE HTL-420C
|
|
|
|
|||
|
Packing specification
|
Bag size range
|
L80mm - 300mm
|
W80mm - 200mm
|
|||
|
|
Packing weight
|
10gr - 2000gr
|
|
|||
|
|
Packing speed
|
25- 60 bags/min
|
|
|||
|
Main performance parameters
|
Total power
|
3.5 kw
|
Kw/Hr
|
|||
|
|
Compressed air Consumption
|
0.36
|
m
3
/min
|
|||
|
|
Air pressure
|
0.6
|
mpa
|
|||
|
Main Control System
|
PLC
|
Schneider
|
France
|
|||
|
|
HMI
|
Schneider
|
France
|
|||
|
|
SERVO MOTOR
|
Schneider
|
France
|
|||
|
|
Machine Dimensions
|
(L)1750*(W)1050*(H)3800mm
|
|
|||
|
|
Machine Weight
|
850kgs
|
|
|||
Kinds of Granule & Solid Packing
Kinds of laminated material films
Pillow bags, pillow bags with bottom gusset, quad bags etc
Main Features
1. Automatic feeding, measuring, bag-making, deviation, filling, sealing, date printing and finished product output .
The whole machine controlled by PLC (
Schneider/France
) and Touch Screen (
Schneider/France
).
2. Servo motor (
Schneider/France
) drawing film.
3. Independent temperature control system (
Schneider/France
).
4. Horizontal and vertical sealing temperature control independently.
5. Simple and fast bag size changeover without tools.
6. Easy to maintain-low maintenance.
7. Work environment quiet, low noise, saving energy.
Detailed Images
Machine Parts
Name: HMI
Brand: Schneider
Original: France
Machine Parts
Name:
PLC
Brand:
Schneider
Original:
France
Machine Parts
Name:
Servo Motor
Brand:
Schneider
Original:
France
Machine Parts
Name:
Temperature Controller
Brand:
Schneider
Original:
France
Related Products
Certifications
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
|
Packaging for VFFS Machine
|
|
|
|
Size (mm)
|
1950 (L) * 1300 (W) * 1700 (H)
|
|
|
Weight
|
660kgs
|
|
|
Packaging Details
|
1st. Use PE film for packing machine first
2nd. Use wooden box packed finaly.
Note: All wooden box will be fumigated for exporting to any country.
|
|
|
Packaging for 10 head weigher
|
|
|
|
Size (mm)
|
1100 (L) * 1100 (W) * 1500 (H)
|
|
|
Weight
|
430kgs
|
|
|
Packaging
Details
|
1st. Use PE film for packing machine first
2nd. Use wooden box packed finaly. Note: All wooden box will be fumigated for exporting to any country. |
|
