manual telescopic mast pole and pneumatic telescopic mast pole is suitable for car,ship or land.It can help light transmission and camera and other equipment rise and drop to a predetermined height after its work.The company's products are also widely used in golf, soccer stadium lighting at night.
- Product Details
- {{item.text}}
Quick Details
-
Application:
-
lightning, WiFi Antennas ,VHF / UHF Antennas,camera,
-
Extended length:
-
2-45m china made manual pole mast
-
Closed length:
-
1-4m (Bottom base included)
-
Material:
-
aluminum alloy, stainless steel, fiberglass
-
Wind load::
-
working rate:25m/s Max rate:35m/s
-
Surface treatment:
-
Anodizing
-
number of sections:
-
3-11china made manual pole mast
-
Temperature::
-
working temp:-40--+50C Storage Temp:-55--+70C
-
Bottom base::
-
Thickness: 10mm
-
Rotation platform:
-
Diameter:100-180mm
Quick Details
-
Brand Name:
-
talents
-
Model Number:
-
Guyed Tower
-
Place of Origin:
-
Tianjin, China
-
Application:
-
lightning, WiFi Antennas ,VHF / UHF Antennas,camera,
-
Extended length:
-
2-45m china made manual pole mast
-
Closed length:
-
1-4m (Bottom base included)
-
Material:
-
aluminum alloy, stainless steel, fiberglass
-
Wind load::
-
working rate:25m/s Max rate:35m/s
-
Surface treatment:
-
Anodizing
-
number of sections:
-
3-11china made manual pole mast
-
Temperature::
-
working temp:-40--+50C Storage Temp:-55--+70C
-
Bottom base::
-
Thickness: 10mm
-
Rotation platform:
-
Diameter:100-180mm
Product Description

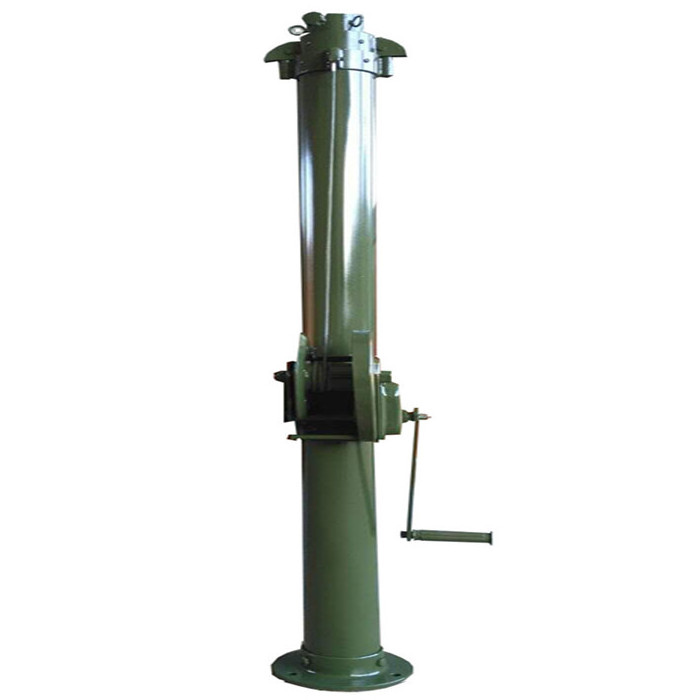

3-30m customized aluminum alloy telescopic mast pole
Appllication
Detailed Images
Material:
Main Pole
:
aluminum alloy , stainless steel, fiberglass
Bottom base,rotation platform and tripod
:
iron steel
Technology: painting
Color of manual pole :
We usually process three colors of Army green, the original color of aluminum, black, but any particular colour OEM is available, most of the customers prefer army green.
The whole unit will be in army green when closed, but when extended, the main pole will be in origin color of aluminum alloy only with top 4cm of each pole section in army green color.
The
manual pole
with energy saving and environmental protection, large play load, low noise, fast lifting, might be of your interest.Our product has the advantages of large play load, low noise, fast lifting, strong buffering & stable performance and the like. With high strength aluminum alloy, our products can easily meet the needs of different height and load in different places. It can be installed on the ground or on the vehicle to ensure the application effect. It can help lamplight, camera, Antenna, mobile and other equipment rise and drop to a predetermined height after its work. It also plays an important role in natural disasters, emergency rescue at night and lightning at the Golf course and large football field.
Actually, we, as the specialized golden supplier for telescopic mast since 1995, have many masts available: hand lifting, motorized lifting and pneumatic lifting with extended length from 2 meters to 45 meters, the largest play loads up to 300 kgs.
|
Accessories of
manual pole
|
|
|
Main pole
|
1 unit
|
|
Pulling cord box with handle bars
|
3units
|
|
Handle lifting bar
|
2pieces
|
|
Tripod
|
1unit
|
|
Stainless steel sticks
|
6pieces
|
|
Ground anchor
|
3 pieces
|
|
Hand- operated valve (pneumatic mast)
|
1 piece
|
|
Air compressor(pneumatic mast)
|
1 piece
|
|
PU tube(pneumatic mast)
|
2 piece
|
|
Top platform
|
1 piece
|
|
Motor(electric mast)
|
1 piece
|
|
Electrical equipment control box(electric mast)
|
1 unit
|
|
Remote-controller(electric mast)
|
2 piece
|
|
Car clamps (when mouted on the car)
|
1 piece
|
|
Top plate( can be customized)
|
1 piece
|
Notes:
(1)With high strength aluminum alloy, our products can easily meet the needs of different height and load in different places. When the mast is mounted on the ground, a tripod and pulling cord are useful to firm it.
(2)We will supply you with a top plate for free if you want to connect our mast with antenna or a transmitter. And you could give us the size and specifications of the hole to match it.
(3)With different materials and ways of manufacture, the prices are quite different. The hand lifting mast will be the cheapest one , and the motorized lifting mast wants a few more expensive. In addition to product type, we also need your requirements for the top bearing, height and other particulars. Our quotation depending on all your requirements of this mast.
(4)We will fix a small steel rope with rings between the tops of bottom section and the top section as a lock when the pole is retracted if you needed.
Specifications of manual pole
Closed length:1-4.0m (Bottom base included)
Extended length: 2-45m (Bottom base included)
Max.payload: 300kgs
Lifting method: Hand lifting,Pneumatic, Motorized
|
Extended height
(m) |
Closed height
(m) |
Section number
|
Top diameter
(mm) |
Bottom diameter
(mm) |
Loading weight
(kg) |
|
4
|
1.47
|
3
|
30
|
50
|
1-15
|
|
5
|
1.20
|
5
|
30
|
80
|
1-15
|
|
6
|
1.50
|
5
|
30
|
70
|
1-15
|
|
6
|
1.30
|
6
|
50
|
160
|
1-60
|
|
6
|
1.70
|
5
|
60
|
130
|
1-50
|
|
8
|
1.65
|
7
|
30
|
90
|
1-15
|
|
9
|
1.80
|
7
|
30
|
90
|
1-15
|
|
9
|
1.80
|
7
|
40
|
105
|
1-30
|
|
10
|
2.10
|
6
|
30
|
80
|
1-10
|
|
10
|
1.95
|
7
|
30
|
90
|
1-15
|
|
10
|
1.95
|
7
|
40
|
105
|
1-30
|
|
10
|
1.95
|
7
|
50
|
130
|
1-60
|
|
12
|
2.10
|
8
|
30
|
105
|
1-15
|
|
12
|
2.10
|
8
|
40
|
130
|
1-30
|
|
15
|
2.40
|
8
|
30
|
105
|
1-15
|
|
15
|
2.40
|
8
|
40
|
130
|
1-30
|
|
18
|
2.45
|
9
|
30
|
130
|
1-10
|
|
18
|
3.00
|
8
|
50
|
150
|
1-30
|
|
20
|
2.90
|
9
|
30
|
130
|
1-10
|
Our Company
Talents Enterprise co. ltd., was founded in China. since 1995, we devote ourselves to the export supply of telescopic masts made of aluminum alloy, stainless steel, fiberglass and carbon fiber. We have a professional team for the solutions and designing for the OEM and ODM of the telescopic mast and for the after sale services. We have been a 12 years golden supplier on Alibaba, we have built up a complete quality control system and Multi-way fast delivery on service. We are supplying one year free after-sale warranty to the buyer. What you are asking for is our motive power of task, we wish our great business platform could well-meet what you demand.
Our Service
Mast operation precautions
1.No overloading.
2.Ensure the area in which the mast is deployed is free of obstructions and overhead power lines.
3.For motorized mast :The crank handle of mast must be disengaged when operated electrically.
4.For pneumatic mast:DO NOT remove any of the exhaust valves in an attempt to retract the mast quicker, this action removes control over the rate of decent.
5.For motorized mast:When operated manually, the motorized telescopic antenna mast must be in a power off state.
6.Any abnormal phenomena( such as inflexible or stuck) occurs when lifting, you should stop it immediately, identify the reasons, and lift it after cleaning troubles.
7.Operating environment requirements:
working temperature: pneumatic mast -15--+60℃. manual and motorized mast -50--+60℃.
8.Wind load: 50-80km/(without Guy rope ), 100-120Km/h( with Guy rope)
Maintenance
1.Waterproof and dust proof cover should be put into outdoor storage
2.If there is a situation that is not smooth or obvious noise during lifting mast,add lubricating oil to make sure inner Mechanical parts work well. Suggest to add oil to the mast every 2-3 month.
3.Regularly check the connection parts in normal condition.
4.Change seals easily on regular time can make mast in good using conditions after using 20thousand times.
