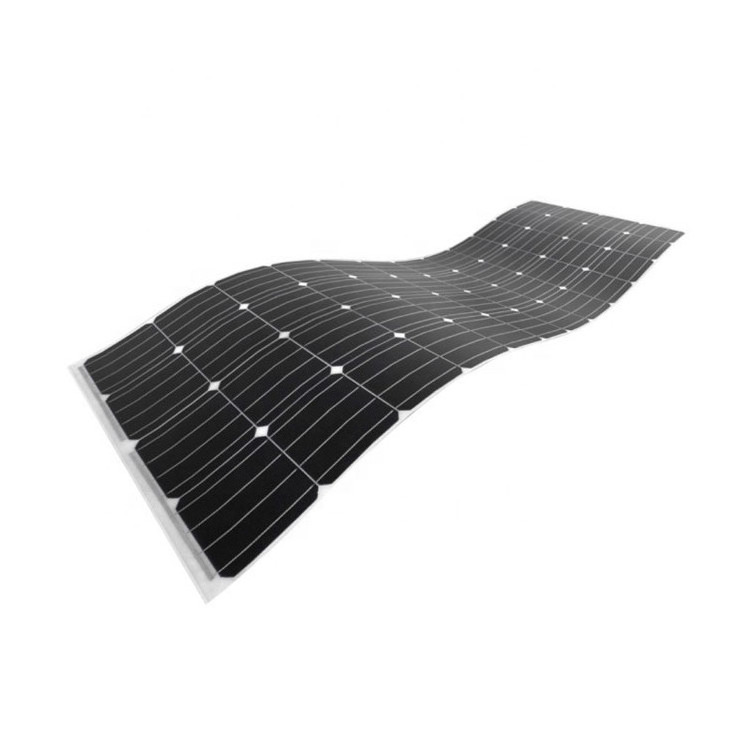

180W ETFE Flexible Solar Panel Kit with 2 USB Char ger for Bivouac Mono
180W ETFE Flexible Solar Panel Kit with 2 USB Char ger for Bivouac Mono
180W ETFE Flexible Solar Panel Kit with 2 USB Char ger for Bivouac Mono
180W ETFE Flexible Solar Panel Kit with 2 USB Char ger for Bivouac Mono
180W ETFE Flexible Solar Panel Kit with 2 USB Char ger for Bivouac Mono
180W ETFE Flexible Solar Panel Kit with 2 USB Char ger for Bivouac Mono
180W ETFE Flexible Solar Panel Kit with 2 USB Char ger for Bivouac Mono
180W ETFE Flexible Solar Panel Kit with 2 USB Char ger for Bivouac Mono

180W ETFE Flexible Solar Panel Kit with 2 USB Char ger for Bivouac Mono

FOB Reference Price: Get Latest Price
≥2 Pieces
US $105
≥100 Pieces
US $85
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Place of Origin:
Guangdong, China
Panel Dimensions:
1470*670*3MM
Panel Efficiency:
23.70%
Product name:
Monocrystalline 180W ETFE Flexible Solar Panel Kit with 2 USB Chager
Power:
180W
Maximum working voltage:
18.8V
Maximum working current:
9.57A
Flexibility:
160 degrees
Weight:
3.15kg
Solar cell:
A-grade
Cell Efficiency:
23.70%
Type:
Flexible

Quick Details

Cell size:
182mmx182mm
Brand Name:
FGET
Model Number:
180W-F
Place of Origin:
Guangdong, China
Panel Dimensions:
1470*670*3MM
Panel Efficiency:
23.70%
Product name:
Monocrystalline 180W ETFE Flexible Solar Panel Kit with 2 USB Chager
Power:
180W
Maximum working voltage:
18.8V
Maximum working current:
9.57A
Flexibility:
160 degrees
Weight:
3.15kg
Solar cell:
A-grade
Cell Efficiency:
23.70%
Type:
Flexible
Product Description

Monocrystalline 180W ETFE Flexible Solar Panel Kit with 2 USB Chager for Bivouac

FGET designs incredible options in the market for flexible solar panels and other solar-related products, making it one of the most valuable brands in the industry. These FGET flexible bendable solar panels are made of a monocrystalline solar cell which is advanced laminated into the water/dust resistant thin film. The 180W flexible solar panel is bendable up to 30 degrees so that you can install it on uneven and bent surfaces conveniently. Perfect for all of life’s adventures. And it supporting parallel, series, or a combination of the two; For off-grid or for on-grid system.
Product Paramenters
Parameters
FGET-ETFE180WA
Peak power Pm(W)
180±3%
Open circuit voltage Voc(V)
22.6
Max. power voltage Vmp(V)
18.8
Max. power current Imp(A)
9.57
Short circuit current Isc(A)
10.15
Solar cells Efficiency
23.70%
Dimensions(L*W*T)
148O*670*3mm
solar cell / No. of cells and connections
Sunpower silicon /36 series
Front cover(material/thickness)
ETFE/0.025mm
Encapsulant(material)
Ethylene vinyl acetate(EVA)
Frame(material/collor)
No
Junction box protection degree
≥IP65
Cable /Cable connector Model
2-4SQMM,USB/MC4/5521/SAE
Application Class
Class A
Flexible Solar Panel Date Sheet
Model
Power (w)
Voltage (v)
Material
Weight (kg)
Size (mm)
FGET15W-F
15W
18V
PET/ETFE
0.8kg (1.76 lbs)
380*280*3mm
FGET20W-F
20W
18V
PET/ETFE
1.0kg (2.20 lbs)
580*280*3mm
FGET30W-F
30W
18V
PET/ETFE
1.0kg (2.20 lbs)
525*345*3mm
FGET50W-F
50W
18V
PET/ETFE
1.4kg (3.08 lbs)
630*540*3mm
FGET60W-F
60W
18V
PET/ETFE
1.9kg (4.19 lbs)
1040*340*3mm
FGET75W-F
75W
18V
PET/ETFE
1.9kg (4.18 lbs)
830*515*3mm
FGET80W-F
80W
18V
PET/ETFE
2.2kg (4.85 lbs)
1000*515*3mm
FGET90W-F
90W
18V
PET/ETFE
2.5kg (5.51 lbs)
1050*540*3mm
FGET100W-F
100W
18V
PET/ETFE
2.8kg (6.17 lbs)
1180*540*3mm
FGET120W-F
120W
18V
PET/ETFE
3.0kg (6.61lbs)
1330*520*3mm
FGET150W-F
150W
18V
PET/ETFE
4.3kg (9.48 lbs)
1470*670*3mm
FGET180W-F
180W
18V
PET/ETFE
4.3kg (9.48 lbs)
1470*670*3mm
FGET200W-F
200W
36V
PET/ETFE
5.6kg (12.35 lbs)
1580*808*3mm
FGET250W-F
250W
36V
PET/ETFE
5.6kg (12.35 lbs)
1320*990*3mm


Key Features:
* Includes pre-drilled holes for easy installation.
* Easily mounted by using Velcro.
* Strong enough as to withstand 1 inch hailstones.

Key Specifications:
* Dimensions:1480* 670 * 3mm
* Peak Wattage 180W
* Curve angle up to 160 degrees
