Quick Details
-
Fork Length:
-
1070MM
-
Fork Width:
-
125MM
-
Overall Dimensions:
-
2600*1150*2055
-
Weight (KG):
-
1500 kg
-
Capacity:
-
1500kg 2000kg 3000kg
-
Battery type:
-
Lithium Battery 24V/40Ah
-
Lifting height:
-
1.6m/2m/2.5m/3m/3.5m
-
After-sales Service Provided:
-
Online Guidan
-
Controller:
-
Control Button
-
Color:
-
Customer Demanded
-
Certification:
-
CE Certification
-
Wheel:
-
Nylon PU
-
Package:
-
Seaworthy Packing
-
Key word:
-
Lifting Pallet Stacker
Quick Details
-
Warranty:
-
More than 5 years
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
subei
-
Fork Length:
-
1070MM
-
Fork Width:
-
125MM
-
Overall Dimensions:
-
2600*1150*2055
-
Weight (KG):
-
1500 kg
-
Capacity:
-
1500kg 2000kg 3000kg
-
Battery type:
-
Lithium Battery 24V/40Ah
-
Lifting height:
-
1.6m/2m/2.5m/3m/3.5m
-
After-sales Service Provided:
-
Online Guidan
-
Controller:
-
Control Button
-
Color:
-
Customer Demanded
-
Certification:
-
CE Certification
-
Wheel:
-
Nylon PU
-
Package:
-
Seaworthy Packing
-
Key word:
-
Lifting Pallet Stacker
Specification
|
Model
|
|
SDYG 1016/1020/1025/1030
|
SDYG 1516/1520/1525/1530
|
SDYG-1016/2020
|
|
Load capacity
|
KG
|
1000
|
1500
|
2000
|
|
Load center
|
MM
|
600
|
600
|
600
|
|
Operation type
|
|
Pedestrian
|
Pedestrian
|
Pedestrian
|
|
Wheel type
|
|
Nylon
|
Nylon
|
Nylon
|
|
Bearing wheel size
|
MM
|
80*60
|
80*60
|
80*60
|
|
Steering wheel
|
MM
|
180*50
|
180*50
|
180*50
|
|
Min. fork height
|
MM
|
90
|
90
|
90
|
|
Max.fork height
|
MM
|
1600/2000/2500/3000/3500
|
1600/2000/2500/3000/3500
|
1600/2000
|
|
Overall fork width
|
MM
|
320-710
|
320-710
|
320-710
|
|
Inside width
|
MM
|
20-320
|
20-320
|
20-320
|
|
Fork length
|
MM
|
1000
|
1000
|
1000
|
|
Overall length
|
MM
|
1660
|
1660
|
1660
|
|
Overall width
|
MM
|
770
|
770
|
770
|
|
Min turning radius
|
MM
|
1350
|
1450
|
1450
|
|
Lift motor
|
KW
|
1.6
|
2
|
2
|
|
Battery Voltage
|
V/AH
|
12/120
|
12/120
|
12/120
|
|
Battery weight
|
KG
|
36
|
36
|
36
|
|
Service weight
|
KG
|
340/390/410/430/450
|
360/410/430/450/470
|
430/470
|

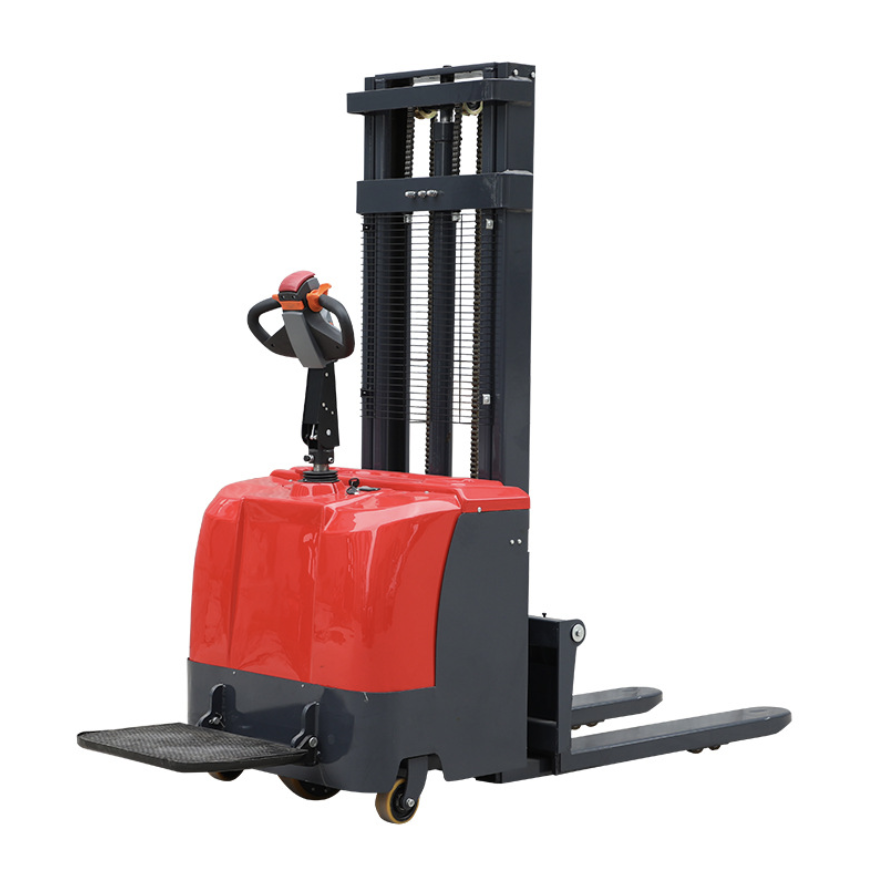

1.5ton 2ton 2.5ton full electric stacker
Full electric stacker refer to various wheeled trucks for loading and unloading, stacking, stacking and short-distance
transportation of palletized goods. The International Organization for Standardization ISO/TC110 is called an industrial vehicle.
It has simple structure, flexible control, good micro-movement, and high explosion-proof safety performance. It is suitable for
operations in narrow passages and limited spaces. It is an ideal equipment for loading and unloading pallets in high-bay
warehouses and workshops.
Full electric stacker refer to various wheeled trucks for loading and unloading, stacking, stacking and short-distance
transportation of palletized goods. The International Organization for Standardization ISO/TC110 is called an industrial vehicle.
It has simple structure, flexible control, good micro-movement, and high explosion-proof safety performance. It is suitable for
operations in narrow passages and limited spaces. It is an ideal equipment for loading and unloading pallets in high-bay
warehouses and workshops.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
