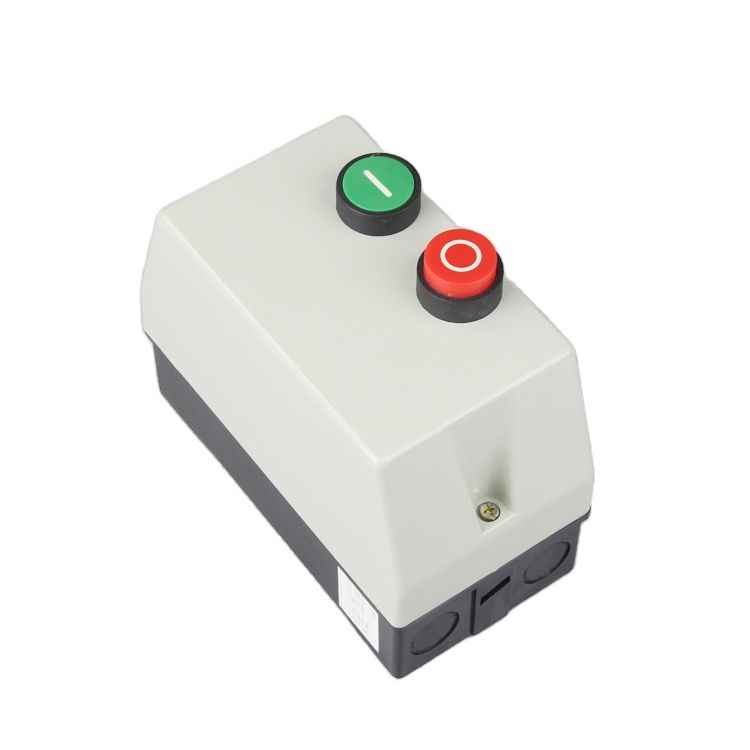

YDT Cheap price high quality AC electrical magnetic starter motor soft starter

YDT Cheap price high quality AC electrical magnetic starter motor soft starter

FOB Reference Price: Get Latest Price

≥100 Pieces

US $1

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Main Circuit Rating Voltage:: 600V

Main Circuit Rating Current:: 20A

Place of Origin:: Zhejiang, China

Brand Name:: YDT

Model Number:: SE1-12

Housing material:: reinforced ABS plastic

Standard:: IEC60947-4-1 magnetic starter

Rated insulation voltage:: 600V AC magnetic starter

Rated operational current:: 12A(AC-3 380v)

Rated thermal current:: 20A electrical magnetic starter

Rated controlled power:: 5.5W(400v)

Function:: For start and halt of the electromotor

Ambient temperature:: -5℃~+40℃

Degree of protection:: IP65

Quick Details

Electricity Type:: AC

Number of Pole:: 3

Phase:: 3

Main Circuit Rating Voltage:: 600V

Main Circuit Rating Current:: 20A

Place of Origin:: Zhejiang, China

Brand Name:: YDT

Model Number:: SE1-12

Housing material:: reinforced ABS plastic

Standard:: IEC60947-4-1 magnetic starter

Rated insulation voltage:: 600V AC magnetic starter

Rated operational current:: 12A(AC-3 380v)

Rated thermal current:: 20A electrical magnetic starter

Rated controlled power:: 5.5W(400v)

Function:: For start and halt of the electromotor

Ambient temperature:: -5℃~+40℃

Degree of protection:: IP65

YDT Cheap price high quality AC electrical magnetic starter motor soft starter

Product Description

SE1 -12 CE CB ( LE1-D12 ) electrical ac magnetic starter with high quality and competitive prive

1.About electrical magnetic starter

1.1 Electric ratings:AC 50/60Hz,690V,up to 95A;

1.2 Application:control the direct start and halt of the electromotor;

protect the motor from overload and phase failure;

1.3 Altitude;not exceeding 2000m;

1.4 Ambient temperature:-5°c ~ +40°c;

1.5 Degree of protection:IP65;

1.6 Standard:IEC/EN 60947-4-1.

2.The component list of ac magnetic starter

2.1 shell:it is made of fire-resisting and reinforced plastic

2.2 contactor with 85% silver contact point;

2.3 thermal overload relay;

3 .Main technical data for magnetic starter

Model	Rated thermal Current Ith(A)	Rated Insula- tion voltage	Rated operational Current(A)				Rated controlled power (KW)
			AC-3		AC-4		220V 230V	380V 400V	415V	440V	550V	660V 690V
			380V	660V	380V	660V	220V 230V	380V 400V	415V	440V	550V	660V 690V
SE1-09	20	600	9	6.6	3.5	1.5			0.37	0.37	0.37	0.37
								0.37	0,.55	0,.55	0,.55	0,.55
							0.37	0.75	11	11	1.1	1.1
							0.75	1.5	1.5	1.5	2.2	2.2
							1.1	2,2	2,2	2.2	3.7	3.7
							1.5	3	3.7	3.7	4	4
							2.2	4	4	4	5.5	5.5
SE1-12	20		12	8.9	5	2	3	5.5	5.5	5.5	7.5	7.5
SE1-18	32		18	10.6	7.7	3.8	4	7.5	9	9	10	10
SE1-25	40		25	18	8.5	4.4	5.5	11	11	11	15	15
SE1-32	50		32	21	12	7.5	7.5	15	15	15	18.5	18.5
SE1-40	60		40	34	18.5	9	11	18.5	22	22	22	30
SE1-50	80		50	39	24	12	15	22	25	30	30	33
SE1-65	80		65	42	28	14	18.5	30	37	37	37	37
SE1-80	100		80	49	37	17.3	22	37	45	45	55	45
SE1-95	100		95	49	44	21.3	25	45	45	55	55	45
