Quick Details
-
Compression:
-
H.265/HEVC & H.264/AVC
-
Protocol:
-
HLS(M3U8), HTTP/UDP/RTSP, RTMP, O NVIF
-
Encoder Decoder:
-
for Real Time IPTV
-
Audio Compression:
-
D olby AC3, AAC, MP3
-
Resolution:
-
1080P@30fps
-
Input:
-
4*H DMI+2*3.5mm in
-
Output:
-
TS over IP(1000M)
-
Certification:
-
ROHS,CE
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
DIGICAST
-
Model Number:
-
DMB-8904A-EC
-
Compression:
-
H.265/HEVC & H.264/AVC
-
Protocol:
-
HLS(M3U8), HTTP/UDP/RTSP, RTMP, O NVIF
-
Encoder Decoder:
-
for Real Time IPTV
-
Audio Compression:
-
D olby AC3, AAC, MP3
-
Resolution:
-
1080P@30fps
-
Input:
-
4*H DMI+2*3.5mm in
-
Output:
-
TS over IP(1000M)
-
Certification:
-
ROHS,CE
|
SPECIFICATIONS
|
|
|
|
Video Encoding
|
Video compression: H.264/AVC High/Main/Baseline Profile Level 4.0
Frame rate: up to 30fps Video input: 4*H DMI (HDCP protocol) Resolution: Main stream: 1920x1080, 1680x1056, 1280x720, 1024x576, 850x480, 720x576, 720x540, 720x480, 720x404, 704x576, 640x480, 640x360, auto Second Stream: 1920x1080, 1680x1056, 1280x720, 1024x576, 850x480, 720x576, 720x540, 720x480, 720x404, 704x576, 640x480, 640x360, auto Third Stream: 720x576, 720x540, 720x480, 720x404, 704x576, 640x480, 640x300, 352x288, 320x240, 320x180 auto. Fourth Stream: 720x576, 720x540, 720x480, 720x404, 704x576, 640x480, 640x300, 352x288, 320x240, 320x180 auto. Bit-rate: 16kbps~12Mbps, CBR/VBR Video pre-processing: Noise reduction, Sharpen, Filtering |
|
|
Audio Encoding
|
Audio compression:
D olby AC3
, AAC, AAC+, AAC++, MP3, MP2
Audio input: 4*Full HD embedded + 2*3.5mm Sampling accuracy: 24-bit Bit Rate: 48kbps~320kbps Sample-rate: 44.1KHz, 48KHz |
|
|
IP Streaming Output
|
Transport protocol: TS over IP output, HLS, RTSP, HTTP, UDP and RTMP protocol
For each Full HD to IP output, supporting output 4 groups TS over IP streams (for each group the HLS, HTTP, RTSP, UDP and RTMP protocol all enabled). with 4 different resolutions (up to 1080p) and 4 different bitrates to meet different size screen and different bandwidth condition. Connector: RJ45, 1000M |
|
|
GENERAL OPTIONS
|
|
|
|
Physical and Power
|
Voltage: 12V DC
Consumption: less than 20W. Operating temperature: 0~45℃(operation), -20~65℃(storage) Dimensions: 175mm(W)*112mm(D)*60mm(H) Weight: 0.6Kg/pc |
|
OVERVIEW

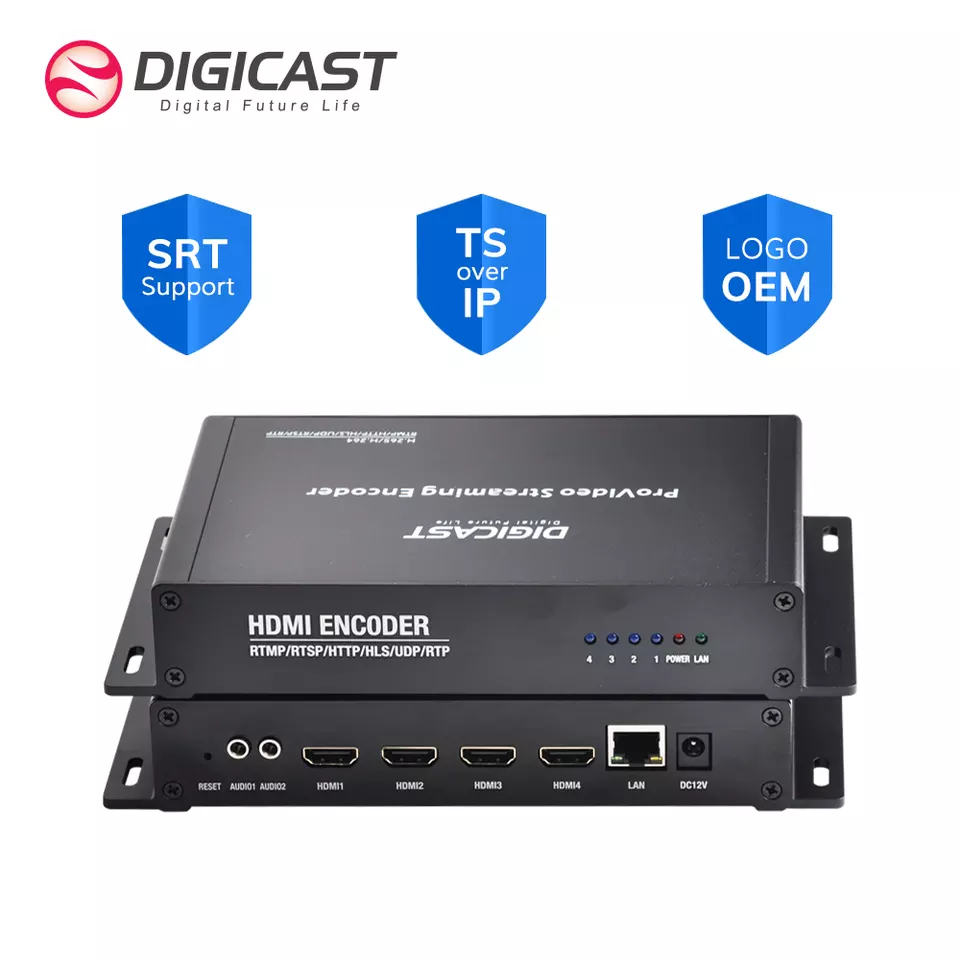

Digicast multiscreen multiprotocol series IPTV Encoder are designed to address the increasing demand for video delivery to Internet and mobile devices. DMB-8904A-EC Classic H.264/H.265 HD 4 Channel IPTV Encoder supports audio and video collection by 4-Ch HD HDMI input. For HDM input, each channel of HDMI input supports output 4 groups IP streams with four different resolution (up to 1080p) and four different bitrates to meet different size screen and different bandwidth condition. Each group of IP stream supports kinds of main protocols output (HLS, RTMP, HTTP, RTSP, UDP), this enable Encoder to deliver H.264/H.265 IP streams by independent IP output to various servers for IPTV & OTT application. Such as Facebook Server, YouTube Server, Ustream Server, Adobe Flash Server, Wowza Media Server, Windows Media Server and some other servers based on HLS/UDP/RTSP/RTMP/HTTP/ONVIF protocols. Moreover, providing username, password matching function which required from destination server, to avoid the streaming which do not authorized.
FEATURES
*Video Input: 4-Channel HDMI work simultaneously
*Video Compression: HD H.265/H.264/MPEG-4 AVC, up to 1080P@30fps
*Dolby AC3 audio compression
*Support H.265/H.264 High/Main/Baseline Profile and AC3, AAC, MP3, MP2 audio compression
*All protocols (HLS, RTMP, HTTP, RTSP, UDP) can be working simultaneously
*Support output up to 4 groups TS over IP streams with 4 different resolutions and 4 different bitrates by each HDMI channel input
*Having 2*Jack(3.5mm) and 4*HDMI embedded audio input
* Support RTMP User name and Pass word for authentication of IPTV Server
*Capable of OSD settings for logo, text and Scroll Caption; Adjustable of audio gain;
*Bitrate mode: CBR/VBR
*Capable of image parameter settings
*Configurable of Multi-Screen, Multi-Protocol, Low bitrate with high quality image.
*Any iOS browsers (iPhone, iPad, MacBook etc.) can have streams from IPTV Streaming Encoder in Anytime, Anywhere by HLS protocol without install any software players.
*Any terminal devices/decoders can have streams from IPTV Streaming Encoder directly by RTMP protocol with software players (such as VLC).
*Support HDCP protocol
*Support ONVIF Network Video Protocol
*Support multiple equipment display at the same time on a computer
*System supports WINDOWS XP/VISTA/SERVER2003/SERVER2008/WIN7 32 and WIN7 64, LINUX
*Web-based management.
*Full-duplex mode 1000M
With our professional & experienced design team, we can provide OEM service by replacing your company logo on chassis, software interface as well as carton.
2.What about your Warranty?
We provide new free spare parts in 5 years because of the product quality problems, except for man-made damage.
3.About the shipping way?
Customers can choose their own logistics company when placing orders. Or contact us to specify our desired logistics company. Such as FedEx/ UPS/EMS/ ARAMEX/DHL etc. If you need to know the specific shipping time, please contact us.
4.Provide remote technical support service
Our engineers can provide professional technical support services to customers through remote software, such as Teamviewer,anydesk whatsapp etc.
5.How does your factory do regarding quality control
Quality is very important and always be put at the first place,Every product will be tested before it is shipped to ensure that
every device is delivered to you with high quality
6.Can this stream to the Facebook, YouTube and so on. Is that compatible with the OBS Streaming Software?
Yes. our encoder could stream to the Facebook, YouTube, Twitch etc. And the OBS software uses RTMP protocol, so this encoder could compatible with the OBS.
7.I never use this device before/I don’t know if the device suit our local market, Can I get a sample for test firstly.
Yes, even if we are doing wholesale business, We could fully understand the further cooperation is based on time and the goods’ quality. So one set of sample is totally welcomed.
|
