Quick Details
-
Dimensions(L*W*H):
-
16500*2950*2850 mm
-
Weight:
-
21000 kg
-
Max. printing width:
-
1100mm
-
Max. Printing speed:
-
120m/min
-
Plate cylinder diameter:
-
120mm-300mm
-
max Unwinding diameter:
-
600 mm
-
max rewinding diameter:
-
600 mm
-
printing unit:
-
8 colors
-
Overall deminsion:
-
16500*2950*2850mm
-
total power:
-
155 kw
-
Certification:
-
CE/ISO9001
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
WITY
-
Voltage:
-
380V 50Hz
-
Dimensions(L*W*H):
-
16500*2950*2850 mm
-
Weight:
-
21000 kg
-
Max. printing width:
-
1100mm
-
Max. Printing speed:
-
120m/min
-
Plate cylinder diameter:
-
120mm-300mm
-
max Unwinding diameter:
-
600 mm
-
max rewinding diameter:
-
600 mm
-
printing unit:
-
8 colors
-
Overall deminsion:
-
16500*2950*2850mm
-
total power:
-
155 kw
-
Certification:
-
CE/ISO9001
Description

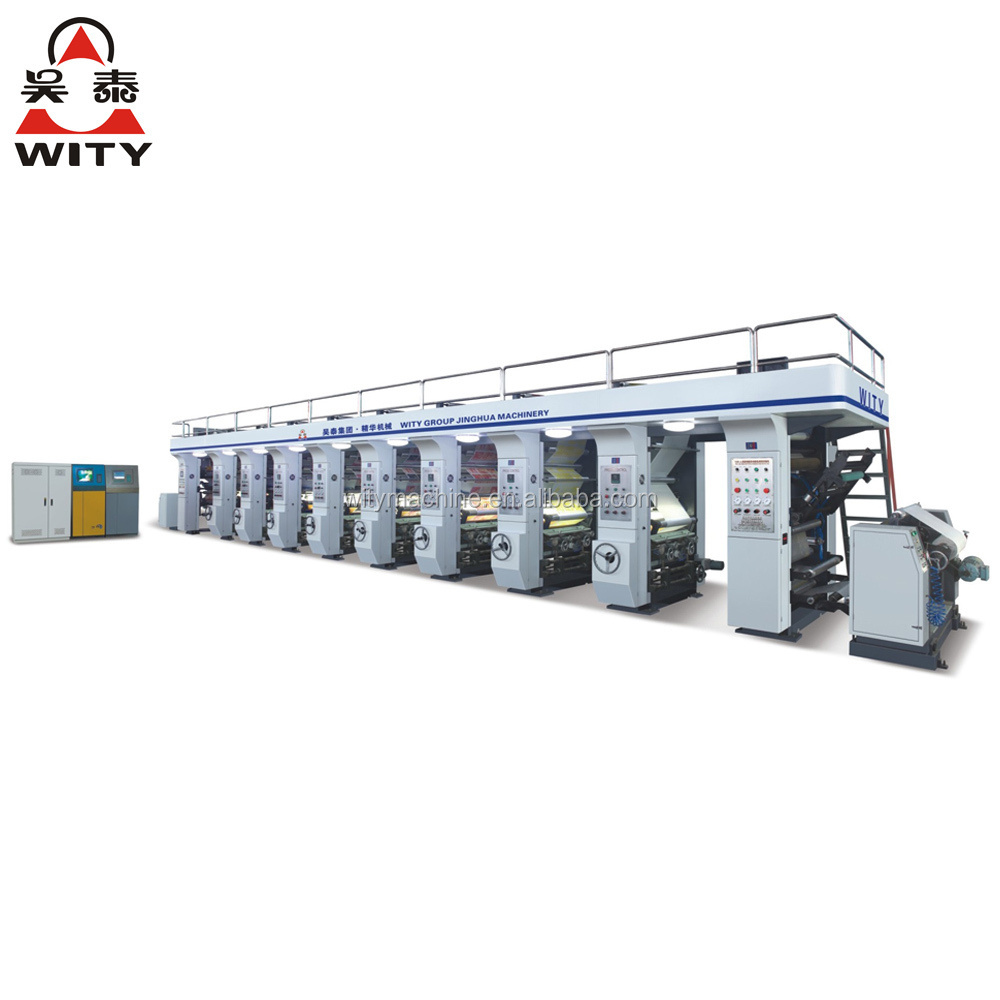

This machine is suitable for many kinds of plastic film, paper etc roll material printing, three-motor tension control in closed loop, computer register, shaftless, pneumatic blade, converter adjust speed, steady tension, actually register, high capacity, reasonable design, easy to operate and reliable quality.
Note: the instead options according to client’s demand: five motor tension synchronous control system, can add obverse and inverse double side printing structure,horizontal color register structure.
Features
a) double air-shaft in rewinding,high speed auto receiving material without stop
b) double air-shaft in unwinding,semi-automatic cutting and receiving
c) air cooling device
d) water cooling device (option)
e) float roll type double air cylinder for pressing
f) shaftless type plate cylinder loading
g) double layers cycle hot oven for drying
h) computer register system(brand according to clients)
i) inspection unit(brand according to clients)
j) obverse and inverse double side printing device (option)
k) Film tension adpots three motor sychronous system SIEMENS brand motors and YASKAWA brand inverter (main motor, unwinding traction, rewinding traction)
Specification
|
Model
|
YAD-81100A2
|
|
inner diameter of core
|
76 mm
|
|
diameter of material
|
600 mm
|
|
diameter of printing plate
|
110-300 mm
|
|
width of printing
|
1100 mm
|
|
register precision
|
+/- 0.15 mm
|
|
printing speed
|
60-120 m/min
|
|
total power
|
about 150 kw
|
|
overall dimensions(mm)
|
12500x3100x2850 mm
|
|
weight
|
About 17000 kg
|
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
