Quick Details
-
Brand Name:
-
haolong
-
Model Number:
-
EP1000
-
Material:
-
PP
-
Maximum power:
-
10VA/50VA
-
Maximum switching voltage:
-
100AC/DC,220AC/DC
-
Maximum switching current:
-
0.5A/1.5A
-
Maximum contact resistance:
-
10MΩ
-
Temperature range:
-
-30~+85℃
-
Float material:
-
PP
-
Shell material:
-
PP
-
Accuracy:
-
±2mm
-
Working pressure:
-
15Bar
-
Life span:
-
1 million times
Quick Details
-
Grade:
-
DIY, Industrial
-
Warranty:
-
1 year
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
haolong
-
Model Number:
-
EP1000
-
Material:
-
PP
-
Maximum power:
-
10VA/50VA
-
Maximum switching voltage:
-
100AC/DC,220AC/DC
-
Maximum switching current:
-
0.5A/1.5A
-
Maximum contact resistance:
-
10MΩ
-
Temperature range:
-
-30~+85℃
-
Float material:
-
PP
-
Shell material:
-
PP
-
Accuracy:
-
±2mm
-
Working pressure:
-
15Bar
-
Life span:
-
1 million times

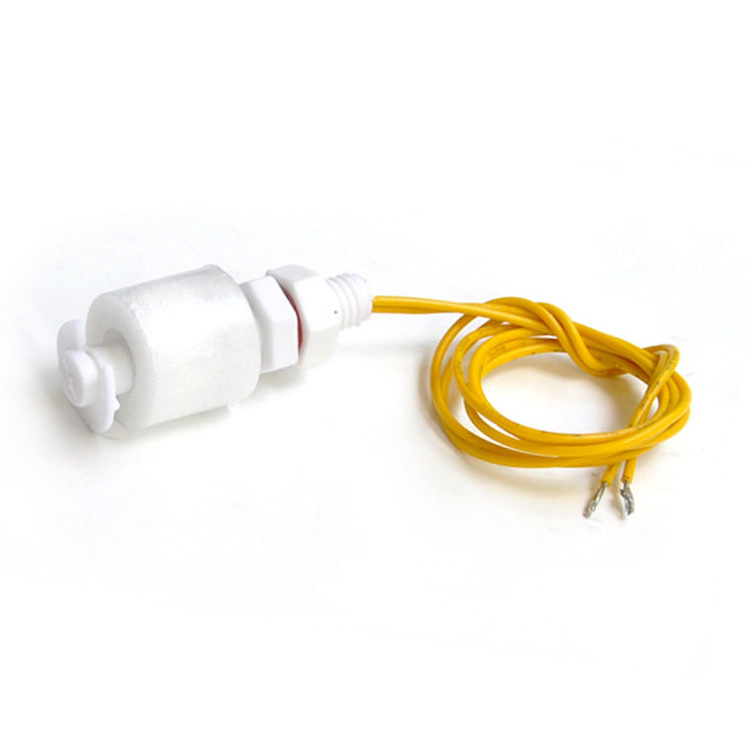

EP1000 Small PP plastic single ball level open/water level controller/water level sensor
Product Features
The model is made of PP polypropylene, easy to use, safe and reliable liquid level control device, it has smaller volume, faster speed, longer working life, lower cost, better corrosion resistance, and stronger resistance to load impact than general mechanical switches. It has been widely used in shipbuilding, papermaking, medicine, printing, generator equipment, plastic auxiliary machinery, petrochemical industry, food industry, water treatment, electrician, dye industry, hydraulic machinery and so on.
Working principle
In a closed non-magnetic tube, one (or more) reed switch is installed, and then the tube is passed through one (or more) hollow ball which has a ring magnet inside. The rising or falling of the liquid level will drive the float. The balls move together to cause the reed switch in the non-magnetic tube to pick up or break, and output a switch signal.
Technical Parameters
|
Project |
Parameter |
|
|
Product number |
A |
B |
|
Maximum power |
10VA |
50VA |
|
Maximum switching voltage |
100AC/DC |
220AC/DC |
|
Maximum switching current |
0.5A |
1.5A |
|
Maximum breakdown voltage |
110AC/DC |
300AC/DC |
|
Maximum contact resistance |
10M Ω |
|
|
Temperature range |
- 3 0~ + 85℃ |
|
|
Float material |
PP |
|
|
Shell material |
PP |
|
|
Accuracy |
±2mm |
|
|
L ife span |
1 million times |
|
|
Working pressure |
15Bar |
|
|
Installation method |
Vertical or vertical mounting (vertical ±20°) M8, M10 |
|
|
Product range |
Can be customized according to customer requirements |
|
FAQ
Q: Are you a trading company or a manufacturer?
A: We are factories.
Q: How long will you give me?
A: We will contact you within 8 hours as soon as possible.
Q: How long is your delivery time?
A: If the goods are in stock, delivery is usually within 1-2 days. Or about 15 days if the goods are not in stock, calculated according to the order quantity.
Q: Is your product quality guaranteed?
A: Yes, our products can only be released after at least two quality inspections have been passed. After the company and the company’s factory have actually inspected the factory of Alibaba’s Northwest China headquarters, the products are allowed to be sold at the Alibaba International Station. To provide users with quality products and pre-sale service.
