1.It can work with 3 axis / 4 axis / 5 axis, just as you like !
2.Cross slippery paltform and havier base made it a higher precision.
3.Built in frequencey converter and without controller box.
4.Can engrave material which hardness below 45.
5.1500w/2200w water-cooled spindle
6.Vedio supported
7.CE approval
- Product Details
- {{item.text}}
Quick Details
-
Range of Spindle Speed(r.p.m):
-
1 - 24000
-
Positioning Accuracy (mm):
-
0.1
-
Repeatability (X/Y/Z) (mm):
-
0.3
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
chinacnczone
-
Model Number:
-
HY3040 5axis
-
Table Travel (mm):
-
300*400*150
-
Year:
-
2019
-
Voltage:
-
220v/110v
-
Dimension(L*W*H):
-
550*680*450
-
Weight (KG):
-
95
-
Spindle Motor Power(kW):
-
2.2
-
Max. Table Load(kg):
-
10 kg
-
Certification:
-
ce
-
Effective Stroke:
-
300x400x(150)mm
-
Repeat positioning accuracy:
-
0.01mm
-
Processing speed:
-
0-4000mm/minute
-
table maximum load:
-
15kg
-
material:
-
Stainless steel tailgate
-
Input Poewr:
-
220AC power supply
-
Output Current:
-
Drive 4.5A (peak 5A)
-
Driven approach:
-
Bipolar constant current PWMdrive output
-
Drive motor:
-
57x78 steper motors, two-phase 4 wire stepper motor
Quick Details
-
Table Travel (X) (mm):
-
300 mm
-
Table Travel (Y) (mm):
-
400 mm
-
Table Travel (Z) (mm):
-
150 mm
-
Range of Spindle Speed(r.p.m):
-
1 - 24000
-
Positioning Accuracy (mm):
-
0.1
-
Repeatability (X/Y/Z) (mm):
-
0.3
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
chinacnczone
-
Model Number:
-
HY3040 5axis
-
Table Travel (mm):
-
300*400*150
-
Year:
-
2019
-
Voltage:
-
220v/110v
-
Dimension(L*W*H):
-
550*680*450
-
Weight (KG):
-
95
-
Spindle Motor Power(kW):
-
2.2
-
Max. Table Load(kg):
-
10 kg
-
Certification:
-
ce
-
Effective Stroke:
-
300x400x(150)mm
-
Repeat positioning accuracy:
-
0.01mm
-
Processing speed:
-
0-4000mm/minute
-
table maximum load:
-
15kg
-
material:
-
Stainless steel tailgate
-
Input Poewr:
-
220AC power supply
-
Output Current:
-
Drive 4.5A (peak 5A)
-
Driven approach:
-
Bipolar constant current PWMdrive output
-
Drive motor:
-
57x78 steper motors, two-phase 4 wire stepper motor
Product Description

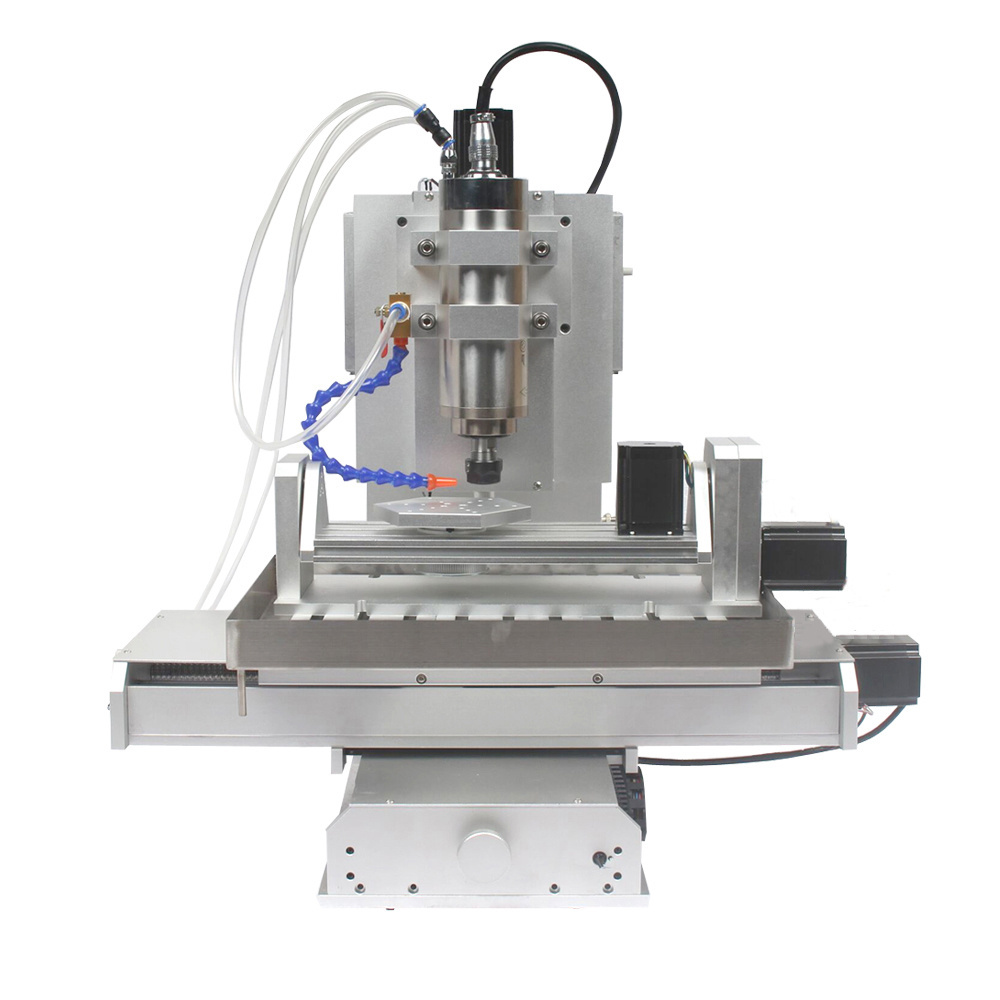

HY3040 CNC router 5axis wood working machine for aluminum
Products Description
* Stable stock, CE certified factory, fast delivery for max production. Offer one-stop solution for engraving business.
|
Effective working travel
|
|
300(X)mm*400(Y)mm*150(Z)mm
|
|
||
|
Shape dimension
|
|
655(L)mm*604(W)mm*550(H)mm
|
|
||
|
Frame materials
|
|
Aluminum alloy 6063 and 6061 the unique and dedicated mold extrusion profiles. let counterfeiters dwarfs
|
|
||
|
acceptable material thickness
|
|
≤180mm
|
|
||
|
Driving units
|
X/Y/Z axis
|
SFUR1605-DFC7-P0 ball screw
|
|
||
|
Sliding units
|
X axis
|
Dia.20mm chrome plate shafts
|
|
||
|
|
Y axis
|
Dia.16mm chrome plate shafts
|
|
||
|
|
Z axis
|
Dia.13mm chrome plate shafts
|
|
||
|
X,Y,Z Axis Stepping motor type
|
|
57 two-phase 3A 180N.cm 76mm length
|
|
||
|
A,B Axis Stepping motor type
|
|
57 two-phase 4A 180N.cm 112mm length
|
|
||
|
Support 4th Axis(rotary) maximum clamping diameter
|
|
Center height 65mm, 3 Jaw 80mm Chuck, Maximum clamping 125mm,Tailstock maximum expansion length 50mm , Maximum clamping weight 30kg
|
|
||
|
5th axis working travel
|
|
120(X)mm*120(Y)mm*80(Z) 360 degree 30-90 degree suggested Plate dia, 180mm
|
|
||
|
Spindle motor
|
|
Brand new 1500W/2200W water cooling spindle, 24000RPM
|
|
||
|
Principal axis collet
|
|
ER11 1-7mm; ER-20 1-13mm
|
|
||
|
Repeat accuracy
|
|
0.05mm
|
|
||
|
Spindle precision
|
|
radial beat accuracy 0.03 mm
|
|
||
|
Operating system
|
|
Win10 and below
|
|
||
|
Maximum speed
|
|
0-4000mm/min
|
|
||
|
Control unit
|
|
nMotion USB motion card, higher accuracy, better quality
|
|
||
|
Computer connection
|
|
USB port
|
|
||
|
Command code
|
|
G code, nc, ncc, txt, tap
|
|
||
|
Operating Voltage
|
|
AC220V/110V
|
|
||
|
Accessories
|
|
bits, tool kits etc.
|
|
||
|
Warranty
|
|
1 Year, 3months for the spindle
|
|
||
|
Package size
|
|
One wooden box, 80*74*90 cm
|
|
||
|
Gross weight
|
|
95KG
|
|
||
Our Advantages
Overseas warehouse in the United States
Overseas warehouses in Russia
Overseas warehouse in Germany
Overseas warehouse in Poland
Easy operating because:
1.
It can work with 3 axis / 4 axis / 5 axis, just as you like !
2.
Independent high-speed micro computer intelligent controller.
3.
Independent drivers for each axis.
4.
Mach 3 software USB connection
5.
Upgraded with more stable structure than old type
6.
Built in frequencey converter and without controller box.
7.
Higher precision because:
8.
Cross slippery platform design rather than gantry design.
9.
Aluminum base sheet is heavy which can make sure less vibration when work.
10.
With auto-checking
function.
11.
1500/2200w water-cooled spindle.
12.
Ball screw
13.
Stainless Steel sink for bits cooling
14.
You can buy this machine from us without any worry because:
15.
CE approved.
16.
Video support.
17.
English manual available.
18.
Mach 3 software send with the machine as a CD.
19.
Can engrave material which hardness below 45.
If you need any of USB 6 axis handwheel, Dial Gauge, Detector Edge Firder, Micrometer, CNC manual pliers, please contact sales for purchase.
