Quick Details
-
Rated Voltage:
-
1kV-500kV
-
Tensile Strength:
-
10kN
-
Name:
-
composite station post insulator
-
Section length:
-
550mm
-
Electrical arc distance:
-
398mm
-
Lightning impulse withstand voltage:
-
230kV
-
Frequency withstand voltage (wet, 1min):
-
95kV
-
Creepage distance:
-
1230mm
-
Service Life:
-
5000-hour weather ageing
-
Usage:
-
Easy installation and maintenance-free
-
Voltage:
-
40.5kv-800kv
Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Histe
-
Model Number:
-
FZS and FZSW
-
Rated Voltage:
-
1kV-500kV
-
Tensile Strength:
-
10kN
-
Name:
-
composite station post insulator
-
Section length:
-
550mm
-
Electrical arc distance:
-
398mm
-
Lightning impulse withstand voltage:
-
230kV
-
Frequency withstand voltage (wet, 1min):
-
95kV
-
Creepage distance:
-
1230mm
-
Service Life:
-
5000-hour weather ageing
-
Usage:
-
Easy installation and maintenance-free
-
Voltage:
-
40.5kv-800kv

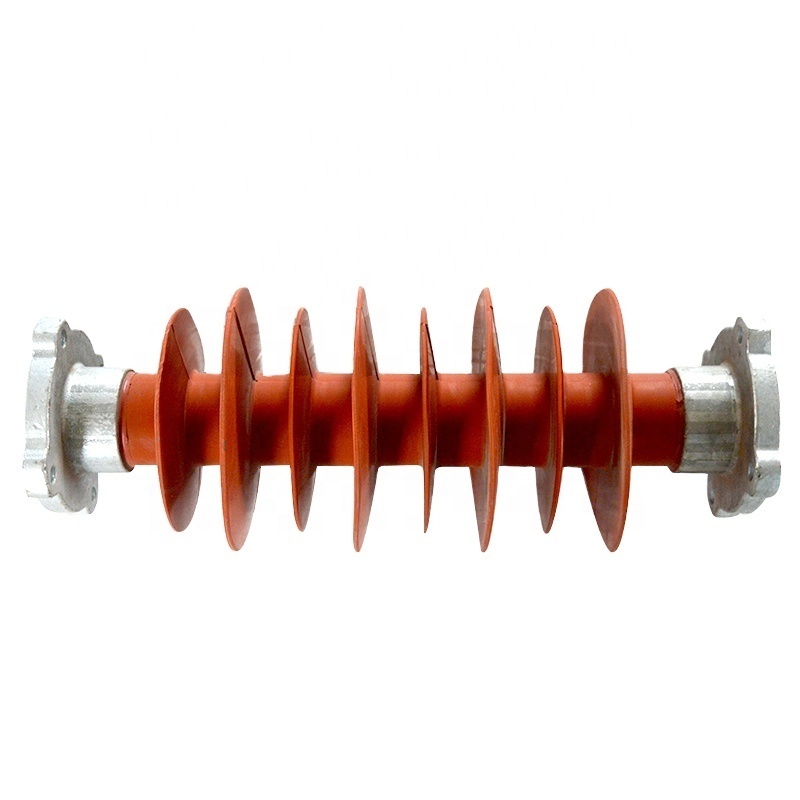

Composite post type insulator
Product features and advantages:
1.The silicon rubber shed booster is smooth and compact
2.Perfect hydrophobic performance, good resistance to aging, tracking and erosion.
3.High-strength acid-resistant FRP rod ensures the reliability of composite insulator.
4.The arcing corona ring well distributes the electric field along the insulator’s axe to prevent corona phenomenon and secure the insulator from heavy damage in end fitting in case of flashover.
5.The end fitting and FRP rod are connected with imported end-fitting crimping equipment ,ensures the mechanical performance of the product.
6.The unique end fitting sealing structure improves product sealing reliability.
7.The strict inspection measures ensure the perfect quality of every product.
8.We can design and produce according to the drawings and detailed requirements of customers.
Technology parameters
| Product name |
Product Model |
Rated
voltage
|
Rated mechanical bending load |
Structure height H (mm) |
Minmun arc
distance
|
Min. creepage distance (mm) |
Lightning impulse voltage (kV) |
P.F. wet withstand voltage (kV) |
|
Composite pin Insulator |
FPQ-20/20T | 15 | 5 | 295 | 195 | 465 | 110 | 50 |
| FPQ-35/20T | 35 | 20 | 680 | 450 | 810 | 230 | 95 | |
| Composite cross-arm Insulator | FSW-35/100 | 35 | 100 | 650 | 450 | 1015 | 230 | 95 |
| FSW-110/120 | 110 | 120 | 1350 | 1000 | 3150 | 550 | 230 | |
|
Composite tension Insulator |
FXBWL-15/100 | 15 | 100 | 380 | 200 | 400 | 95 | 60 |
| FXBWL-35/100 | 35 | 100 | 680 | 450 | 1370 | 250 | 105 | |
|
Composite post Insulator |
FZSW-15/4 | 10 | 4 | 230 | 180 | 485 | 85 | 45 |
| FZSW-20/4 | 20 | 4 | 350 | 320 | 750 | 130 | 90 | |
| FZSW-35/8 | 35 | 8 | 510 | 455 | 1320 | 230 | 95 | |
| FZSW-72.5/10 | 66 | 10 | 780 | 690 | 2260 | 350 | 150 | |
| FZSW-126/10 | 110 | 10 | 1200 | 1080 | 2750 | 500 | 230 | |
| FZSW252/12 | 220 | 12 | 2400 | 2160 | 5500 | 1000 | 460 |
(1) Quality Assurances
We have a strictly quality control process from the raw material to finished products. Advanced testing lab to make sure products quality and improve our creative ability. Quality and Safety is the soul of our products.
(2) Excellent Services
Many years of manufacturing experience and rich export business help us to establish a well-trained sales service team for all customers.
(3) Fast Deliveries
Strong manufacture capacity to satisfy urgent leading time. It is around 15-25 working days after we receive the payment. It varies according to the different products and quantity.
(4) OEM ODM and MOQ
Strong R&D team for quick new products’ development, we welcome OEM, ODM and customize request order. Whether selecting a current product from our catalog or seeking engineering assistance for your application. You can tell us about your sourcing requirements.
Normally our MOQ is 100pcs per models. We also produce OEM and ODM as you requirement. We are developing worldwide agent.
