Quick Details
-
Power:
-
180
-
Dimension(L*W*H):
-
4140x2280x2425MM
-
Weight:
-
14.5T
-
Product name:
-
Crusher Plant Price Vsi Artificial Sand Making Machinery
-
Best Feed Size (MM):
-
35-40
-
Rotation Speed (R/MIN):
-
1520-1690
-
The Machines classification:
-
Sand Making System
-
Application:
-
Quarry, sand concrete, dry mortar, manufactured sand, power plant etc.
-
Processed Materials:
-
Cobble, granite, basalt,iron ore, limestone, calcite, quartzite etc.
-
Color:
-
Customizable
-
Spare Parts Supply:
-
Life Long Provide
-
After sale Service:
-
Life-long Service
-
Certification:
-
CE, ISO, SGS
Quick Details
-
Place of Origin:
-
Jiangxi, China
-
Brand Name:
-
JXSC
-
Voltage:
-
380V 50Hz, 380V 50Hz
-
Power:
-
180
-
Dimension(L*W*H):
-
4140x2280x2425MM
-
Weight:
-
14.5T
-
Product name:
-
Crusher Plant Price Vsi Artificial Sand Making Machinery
-
Best Feed Size (MM):
-
35-40
-
Rotation Speed (R/MIN):
-
1520-1690
-
The Machines classification:
-
Sand Making System
-
Application:
-
Quarry, sand concrete, dry mortar, manufactured sand, power plant etc.
-
Processed Materials:
-
Cobble, granite, basalt,iron ore, limestone, calcite, quartzite etc.
-
Color:
-
Customizable
-
Spare Parts Supply:
-
Life Long Provide
-
After sale Service:
-
Life-long Service
-
Certification:
-
CE, ISO, SGS

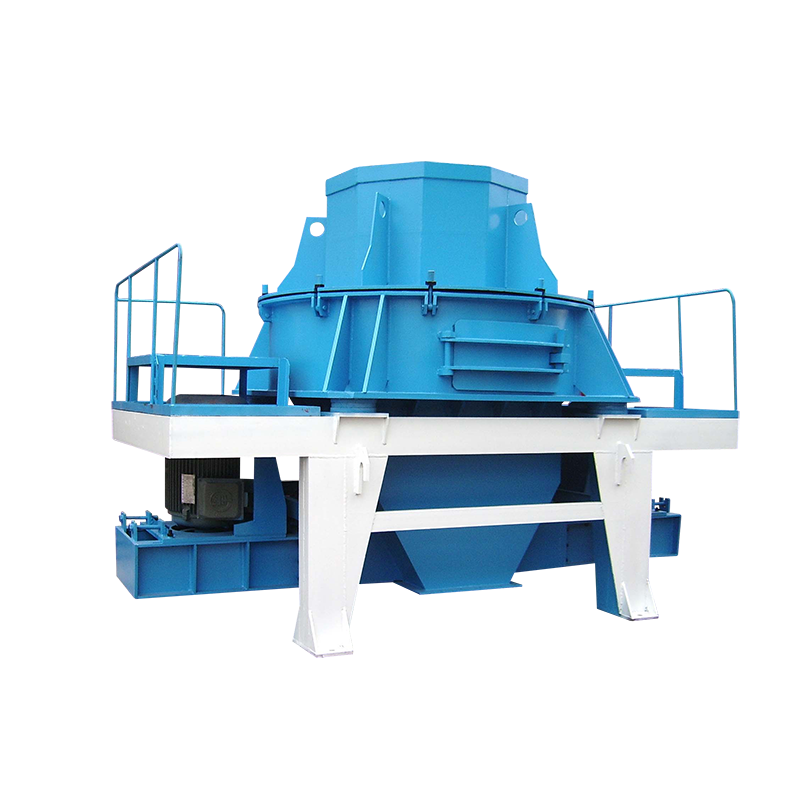

Small Fixed Sand Maker Hydraulic River Stone Quartz Sand Crusher Plant Price Vsi Artificial Sand Making Machinery
Product introduction:
VSI sand maker is high performance sand making equipment with foreign technology. It is the perfect combination of unique design of rotor structure, wear-resisting material process, crushing speed optimization and hydraulic design. It Is a model of professional fine grinding technology and machinery manufacturing, and also is a fully reflection of the new technology and new process.
Application Field:
Quarry, sand concrete, dry mortar, manufactured sand, power plant desulfurization, quartz sand, etc.
Suitable Material:
Cobble, granite, basalt,iron ore, limestone, calcite, quartzite, diabase, etc.
Principle of Operation:
Material from the upper vertical machine fall into a high-speed rotating impeller, with the high speed centrifugal force, material impact and crush with the other part of umbrella shaped material distributed near the impeller. After hitting each other, material will form an eddy between the impeller and casing, and repeatedly hit ,friction and shattered each other. Material discharged vertically from the bottom, screening out the required finished product granularity by screening equipment.
Performance characteristics:
1) The crushing cavity internal items can be changed or repaired easily and fast,because of adopting hydraulic drive cover device.
2) With the unique feeding crusher structure, it is convenient to realize the"stone crushing stone" and "stone crushing metal", can crush and shaping stones.
3) With the unique dustproof sealing system, completely avoid the external dust into the lubricating parts.
4) High quality materials and advanced technology, improve the equipment quality and appearance, low failure rate to ensure.
5) The best design of crushing cavity, prolong the service time of wearing parts and reduce the cost.
|
Model
|
Capacity (T/H)
|
|
Best Feed Size (mm)
|
|
Rotation Speed (r/min)
|
Power For Double Motor (KW)
|
Dimension L×W×H (mm)
|
Weight
(t)
|
Power Supply
|
||
|
|
Center And Ring Feeding
|
Center Feeding
|
Soft Material
|
Hard Material
|
|
|
|
|
|
||
|
VSI7611
|
120-180
|
60-90
|
35
|
30
|
1700-1890
|
110
|
3700×2150 ×2100
|
11.8
|
380V 50Hz
|
||
|
VSI8518
|
200-260
|
100-130
|
40
|
35
|
1520-1690
|
180
|
4140×2280 ×2425
|
14.5
|
|
||
|
VSI9526
|
300-380
|
150-190
|
45
|
40
|
1360-1510
|
264
|
4560×2447 ×2778
|
17.8
|
|
||
|
VSI1140
|
450-520
|
225-260
|
50
|
45
|
1180-1310
|
400
|
5000×2700 ×3300
|
25.6
|
|
||
|
VSI1145
|
500-640
|
250-360
|
50
|
45
|
1200-1390
|
440
|
5100×2790 ×3320
|
26
|
|
||
Jiangxi shicheng Mine Machinery Factory
was established in 1985, it's a professional machinery factory special in mining equipment research, manufacturing, sales and offers professional mine processing plant workflow design, plant installation, equipment maintenance, beneficiation processing technology guidance service as one of the metallurgical machinery equipment factory. Our products are exported to Africa, Nigeria, Zambia, Zimbabwe, Congo, Uganda, Mozambique, Angola, Southeast Asia, South America and many other coutries and regions.We are committed to creating high quality and efficient crushing and screening equipment,quality is our eternal pursuit and responsibility.
Our Workshop
Our Customers
Our successful cases
Zimbabwe cone crusher production line site
Malaysian impact crusher production line
Democratic Republic of the Congo customer's production line
●
Pre-sales service:
We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.
●
Sales service:
Send technicians to the jobsite guiding the installation and adjustment, training operators and finishing the check and accept together with you.
●
After-sales service:
To establish long term friendship, we will reg-ularly pay return visit to customers. Supplying technique, building design, instruction, installation and debugging for free.
●
Lifelong service:
One year warranty to make sure your machine runs constantly.Always offer lifelong service and provide spare parts for a long term.
●How long is the guarantee?
All of our products are guaranteed for one year. If products quality is not consistent with the description as we described or the promise before you place order, we promise 100% refund.
●
What is the delivery time?
According to the specific data provided by the customer,our customized crushing machine`s delivery time is 30-48 days.
●
What is the nearest port?
Xiamen, Guangzhou, Shenzhen
●
What is the trade terms?
CIF,FOB,DDU ect is acceptable.
●
Service and Payment Terms?
We can accept T/T and L/C; 30% deposit, 70% balance before delivery, which is international trade practice; Finished product pictures will provide to customers before delivery.
