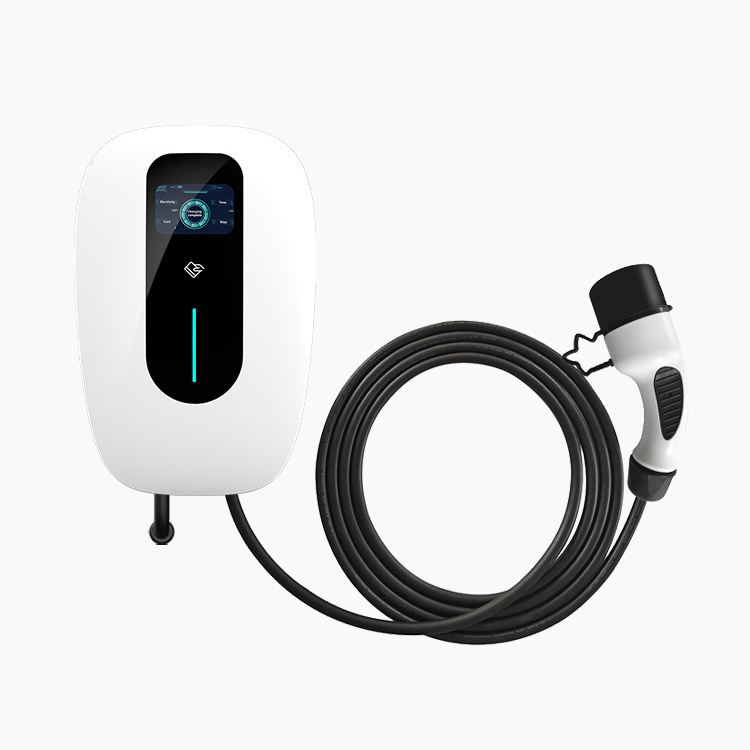

Factory OEM EV Chargers Electric Car BYD ev Fast Charger Europe Type 2 ev Charger

Factory OEM EV Chargers Electric Car BYD ev Fast Charger Europe Type 2 ev Charger

FOB Reference Price: Get Latest Price

≥2 Pieces

US $359

≥6 Pieces

US $345

≥100 Pieces

US $335

Free Inquiry

Customized Request

Explore More Products

OEM ODM Electric Car EV Charger Type 2 AC Wall Box Home EV Charging Station With 4.3 Inch LCD Display

$ 140 - $ 150

Commercial Electric Car Charging Station Fast Portable Ev 120kw Ocpp Dc Charger

$ 305 - $ 320

Ev Charger Station Level 2 Ac 32A Ev Charging Pile For New Energy Car

$ 125 - $ 165

Portable Ev Charger Floor Mounted Dc Electric Car Fast Charging Station

$ 4410 - $ 5580

Product Details

{{item.text}}

Quick Details

Application:: ev car Charging

Warranty:: 1 Year

Certificate:: CE ROHS

Rated Output Power:: 11kw

Charging Standards:: IEC62196

Rated Current:: 16 Amp

Start Method:: RFID Card + Bluetoth APP

Color:: White Black Blue Orange Purple

Cable length:: 3.5m/5m/7.5m

Rated Voltage:: 380V -400V AC

Quick Details

Place of Origin:: Sichuan, China

Model Number:: GS11-AC-B01

Brand Name:: Green Science

Application:: ev car Charging

Warranty:: 1 Year

Certificate:: CE ROHS

Rated Output Power:: 11kw

Charging Standards:: IEC62196

Rated Current:: 16 Amp

Start Method:: RFID Card + Bluetoth APP

Color:: White Black Blue Orange Purple

Cable length:: 3.5m/5m/7.5m

Rated Voltage:: 380V -400V AC

Products Description

Factory OEM EV Chargers Electric Car BYD ev Fast Charger Europe Type 2 ev Charger

Product Paramenters

Data	Model	GS7-AC-HO1	GS11-AC-HO1	GS22-AC-HO1
Input	Power Supply	1P+N+PE	3P+N+PE	3P+N+PE
		Rated Voltage	230V AC	400V AC	400V AC
		Rated Current	32A	16A	32A
Output	Output Voltage	230V AC	400V AC	400V AC
		Output Current	32A	16A	32A
		Rated Power	7KW	11KW	22KW
User Interface	Charging Port	Type 2
		Cable Length	3.5M /5M /7.5M
		LED Indicator	Yellow/Green/Red
		Start Mode	Plug&Play / RFID Card / APP
		Emergency Stop	YES
Communication	WIFI	Optional
		3G/4G/5G	Optional
		OCPP	OCPP 1.6 Json (OCPP 2.0 Optional)
Package	Unit Size	340285147mm
		Package Size	480350210mm	480350210mm	480350210mm
		Net Weight	3.8KGS	4.5KGS	4.5KGS
		Gross Weight	4KGS	5KGS	5KGS

PEN Fault Detection

Most UK families are wired with a PME system (Protective Multiple Earth), where the earth wiring runs to a main supply point connected to a neutral conductor which is earthed at multiple points. These systems have the potential for a rare fault called neutral failure, where an upstream disconnection due to degrading or corrosion could increase the risk of electric shock.

PEN Fault Detection: For TN-C-S systems without grounding at the user’s end (as shown above), when the PEN line to the household is cut off due to a line fault and the rear end of the PEN line is in suspension without repeated earthing, and the distribution box RCD is not working properly at this time, the voltage of the protective ground PE is equal to the voltage of the fire line L.

If not equipped with this protection,the shell of the EV in charging will be charged with a voltage equal to the fire line L
voltage. If there are no other appliances except the EV charger, the leakage current will exceed 30mA and the person will not be able to disengage himself, which is a safety hazard; if there are even other appliances, the leakage current can easily exceed 100mA, which is very fatal.

Dynamic load balancing

The dynamic load balancing EV charger is a device that ensures that the overall energy balance of the system is maintained. The energy balance is determined by the charging power and the charging current. The charging power of the dynamic load balancing EV charger is determined by the current flowing through it. It saves energy by adapting the charging capacity to the current demand.

In a more complicated situation, if many EV chargers charge simultaneously, the EV chargers may consume a large amount of energy from the grid. This sudden addition of power may cause the power grid to become overloaded. The dynamic load balancing EV charger can handle this problem. It can divide the burden of the grid evenly among several EV chargers and protect the power grid from damage caused by overloading.

The dynamic load balancing EV charger can detect when the power grid is overburdened and adjust its operation accordingly. It may then control the charging of the EV charger, allowing for energy savings to be realized.

The dynamic load balancing EV charger can also monitor the charging voltage of the vehicle so that it can help save power when the car is fully charged. It can scan the grid load and save energy.

Who We Are

Passion, Sincerity, Professionalism

Sichuan Green Science & Technology Co. Ltd was founded in 2016, locates in Chengdu national Hi-tech development zone. We dedicate in providing package technique and products solution for intelligent efficient and safe application of energy resources, and for energy saving and emission reduction.

Our products cover portable charger, AC charger, DC charger, and software platform equipped with OCPP 1.6 protocol, providing smart charging service for both hardware and software. We also can customize products by customer’s sample or design concept with competitive price in a short time.

Our value is "Passion, Sincerity, Professionalism." Here you can enjoy a professional technical team to solve your technical problems; enthusiastic sales professionals to provide you with the most suitable solution to your needs; online or on-site factory inspection at any time. Any require about EV charger please feel free to contact us, hope we will have a long-term mutual benefit relationship in near future.

We are here for you !

Some Installations

Packing & Delivery

Packing	1.Genuine Packing
		2.Netural Packing
		3.Customized Packing
Shipping	1.By Express	DHL.UPS,FEDEX,TNT.EMS etc
		2.By Air	Fast Shipping High Cost
		3.By Sea	Low Cost slow Shipping
Payment	T/T.Western Union,PayPal,Ali Pay and more

FAQ

Q1: What is your terms of packing of EV Charging point? A: We pack our EV Charging Point in cartons. Q2: What's the MOQ? A: Most of our products are in stock,no MOQ.If you have customized requirements, please contact us. We will provide specific solutions for your requirements. Q3: Can you produce according to the samples? A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures. Q4: What is your sample policy? A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost. Q5: Do you test all your goods before delivery? A: Yes, we have 100% test before delivery. If you can't find the exact product you need in the picture, don't walk away. Welcome to contact us at any time or send us the sample and we will reply you as soon as possible.
