Quick Details
-
Brand Name:
-
YDKL
-
Material:
-
UPVC
-
Pressure:
-
200psi/PN16
-
Temperature:
-
0-27 Degree-C
-
Standard:
-
DIN/ JIS / ANSI /BS/CNS
-
Connect way:
-
Socket / Thread / Flange
-
Design:
-
Full Port Design
-
O-Ring:
-
Double O-Ring Stem Seal
-
Seals:
-
FPM or EPDM Seals
-
Torque:
-
low torque and adjustable seat retainer
-
Product name:
-
3 4 inch plastic toilet shut off valve
Quick Details
-
Port Size:
-
1/2"--4''
-
Place of Origin:
-
Hebei, China
-
Model Number:
-
KL-motorized
-
Brand Name:
-
YDKL
-
Material:
-
UPVC
-
Pressure:
-
200psi/PN16
-
Temperature:
-
0-27 Degree-C
-
Standard:
-
DIN/ JIS / ANSI /BS/CNS
-
Connect way:
-
Socket / Thread / Flange
-
Design:
-
Full Port Design
-
O-Ring:
-
Double O-Ring Stem Seal
-
Seals:
-
FPM or EPDM Seals
-
Torque:
-
low torque and adjustable seat retainer
-
Product name:
-
3 4 inch plastic toilet shut off valve

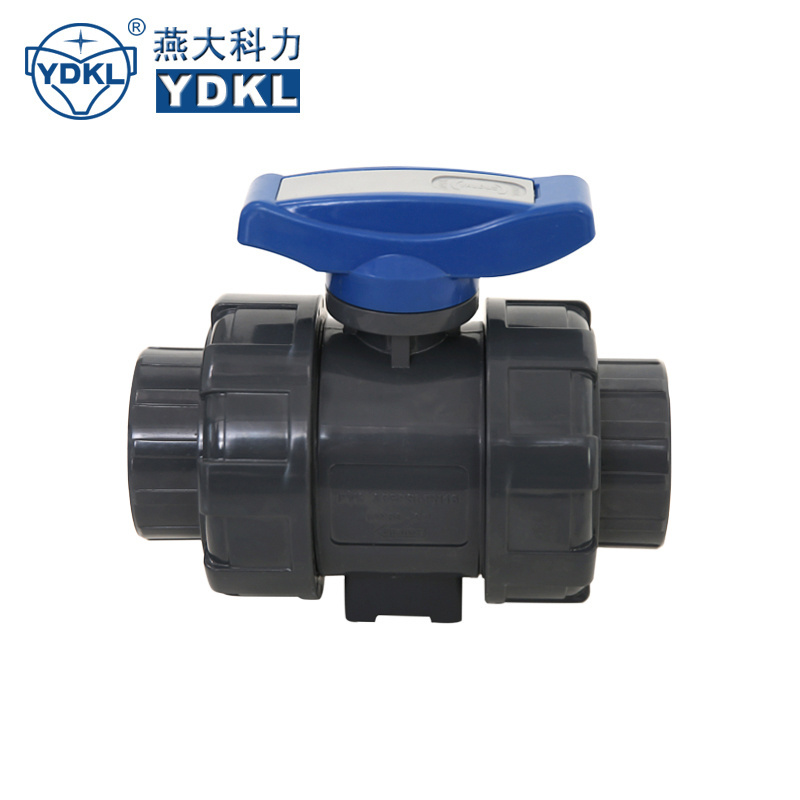

3 4 inch plastic toilet shut off valve
|
FEATURES Size: DN15-1/2” to DN100-4” Material: PVC / PP / CPVC /PVDF Liner: EPDM / FPM Connect Way: Thread / Slip /Flange Standard: DIN / ANSI /JIS / NPT/ BSPT Options: Manual Type /ready for actuator type/Pneumatic and Electric actuator type |
|
EXPLOSIVE CHART
|
NO |
PARTS |
PCS |
MATERIALS |
|
1 |
Cap |
1 |
PVC |
|
2 |
Handle |
1 |
PVC |
|
3 |
O-ring |
2 |
EPDM |
|
4 |
Stem |
1 |
PVC |
|
5 |
Seal Carrier |
1 |
PVC |
|
6 |
Ball |
1 |
PVC |
|
7 |
Ball Seat |
2 |
PTFE |
|
8 |
O-ring |
2 |
EPDM |
|
9 |
O-ring |
1 |
EPDM |
|
10 |
End Connector |
2 |
PVC |
|
11 |
Union Nut |
2 |
PVC |
|
12 |
Body |
1 |
PVC |
|
13 |
Flange |
1 |
PVC |
|
14 |
O-ring |
2 |
EPDM |
Product Details
