Linear: Basic Air Cylinder

Basic linear cylinders are used to provide straight-line, in/out linear movement for a variety of applications. Available as single acting (spring extend or spring return) and double acting styles with single rod or double rod configurations, non-rotating, and precision non-rotating models.

Body styles include crimped, round, or tie rod. Single acting cylinders develop thrust in one direction and have lower air consumption compared with the equivalent size of double acting cylinders. With a double acting air cylinder, air pressure may be alternately applied to provide force in both directions.

Series: CQ2-Z , NCQ2-Z , NCM , NCJ2 , NCG , NCA1 , CJ2 , CM2 , CG1 , MB , CS1 , CS2 , C85 , C96

Linear: Compact Cylinders

A compact cylinder functions in the same manner as a basic cylinder with both single acting and double acting, single or double rod, and non-rotating models. However, SMC compact cylinders minimize space requirements allowing for precise, direct mounting in the least amount of space possible.

Series: CQ2-Z , NCQ2-Z , NCQ8 , CQS , CQM , CVQ , RQ , CLQ

Linear: Rodless Air Cylinder

A rodless air cylinder differs from a basic air cylinder in that no piston rod extends outside the cylinder body. Instead, the internal piston is connected to an external carriage, by means of a magnetic or mechanical coupling system.

SMC's rodless air cylinders are ideal for long stroke applications because they are unaffected by rod overhang, bending, piston binding, and uneven seal wear, and for use in confined areas where space is a premium.

Series: CY , REA , MY1 , MY2 , MY3

Guided Air Cylinders

Guided cylinders utilize guide rods mounted parallel to the piston rod to provide stable, non-rotating, high side load performance. SMC offers dual rod, heavy duty and precision models. Like rodless cylinders, SMC guide rod cylinders reduce rod bending, piston bending and uneven seal wear. Low profile guided actuator series are available for restrictive space limitations.

Series: CXS , MGP , MGQ , MGG , MGC , MGF , MTS

Slide Table Actuators

SMC guided actuators are utilized in applications that call for high rigidity and high accuracy. Typically, an air cylinder and a precision guide are required to meet these needs; however the MX series integrates the guide table and air cylinder into one precisely machined component. MXQ series endless track linear guide produces a table cylinder having excellent rigidity, linearity and non-rotating accuracy.

The MX series provides approximately twice the force output of a conventional cylinder through the engineering of a twin piston design.

Series: MXS , MXQ , MXH , MXF , MXW , MXJ , MXP , MXY

Rotary Actuators

SMC manufactures both Rack and Pinion and Vane style pneumatic rotary actuator products. Combination rotary models combine compact linear cylinders and rotational capability. Combinations are also available that include rotary gripper capabilities. When the application calls for rotational motion less than one revolution, rotary cylinders can mount right at the equipment joint without taking up space with long stroke lengths, which would be required to do the same job with a linear cylinder. SMC's pneumatic rotary actuator units can achieve arc lengths of 90°, 180°, 190°, or even 270°, depending on the configuration. SMC offers both electric and pneumatic rotary actuator products.

Series: MSU , CRB1 , MSQ , NCRQ , NCRA1 , MK-Z , MRQ , MHRQ

Air Grippers

SMC offers one of the most extensive lines of pneumatic grippers (air grippers) in the industry today. The series include pneumatic rotary grippers, two, three and four finger parallel styles that are ideal for gripping and centering; a wide opening parallel model, designed to accommodate many different sized parts; a heavy duty style, suitable for a wide range of applications; an angular model, speed adjustment built in; a toggle to give reliable gripping support; a low-contamination style, equipped with a protective boot; and electric models.

Series: MHZ , MHK , MHL , MHR , MHS , MHQ , MHF , MHC , MHY , MHW , MHT , MHRQ

Specialty & Engineered Cylinder Designs

When your application requires that a task be performed that can not be completed with standard air cylinders, SMC can help you find the solution. SMC offers a variety of specialty air cylinders including Sine (smooth acceleration), Load Stopping, and Clamp to name a few. For example, the transportation of delicate items often requires greater control of cylinder speed, acceleration and deceleration than is afforded by traditional pneumatic cylinders. For this reason, SMC has developed a RE series of sine cylinders. These cylinders facilitate high-speed transportation of work but have very smooth actuation (similar to sine wave).

For your demanding applications our large engineering department can customize a product solution for you. Need a special variation on our standard pneumatic rotary actuator? No problem. We can create a three-stop rotary unit to meet your custom needs.

Series: REC , REA , RS , CKZ2N, CK, MK

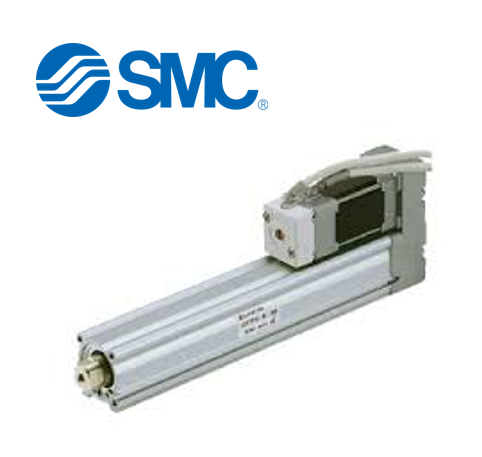

Electric Actuators

Electric actuators offer distinct advantages over their pneumatic counterparts. Acceleration and speed are controlled and predictable. Multiple positions are possible with high precision and repeatability. Pushing forces can be programmed. With no need for compressed air, infrastructure and energy costs are lower. LE is SMC's current line of electric actuators, designed with a focus on easy setup and operation. Function parameters come preset, plus an "Easy Mode" setting option allows you to be operational quickly. The LE line is available in a variety of types including: sliders, rod and guided rod, slide tables, rotary, grippers, and miniature. Accessories include actuator controllers, and gateways.

Series: LEFS, LEFB, LEY, LES, LEH, LER, LEP, LEL, LEM, LEC
AC Servo Sliders, AC Servo Rod

Hydraulic Cylinders

SMC hydraulic cylinders offer a wide choice of operating pressures, tube bore sizes, and standardized strokes. Available in lightweight, compact aluminum body. Direct mounting style provides space savings.

Series: CH2 , CH

Accessories

SMC also offers a large selection of accessory products, to further compliment our abundant line of cylinder products. These include rod clevises, mounting brackets and alignment couplers, for attachment. Positioning feedback is provided by the largest selection of auto switches available from any pneumatic manufacturer. To control speed we offer shock absorbers, quick exhausts and flow controls in a wide variety of sizes and configurations.

Series: NRB , NJ , AS , AQ
