- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
OEM
-
Model Number:
-
N35-N52
-
Product Name:
-

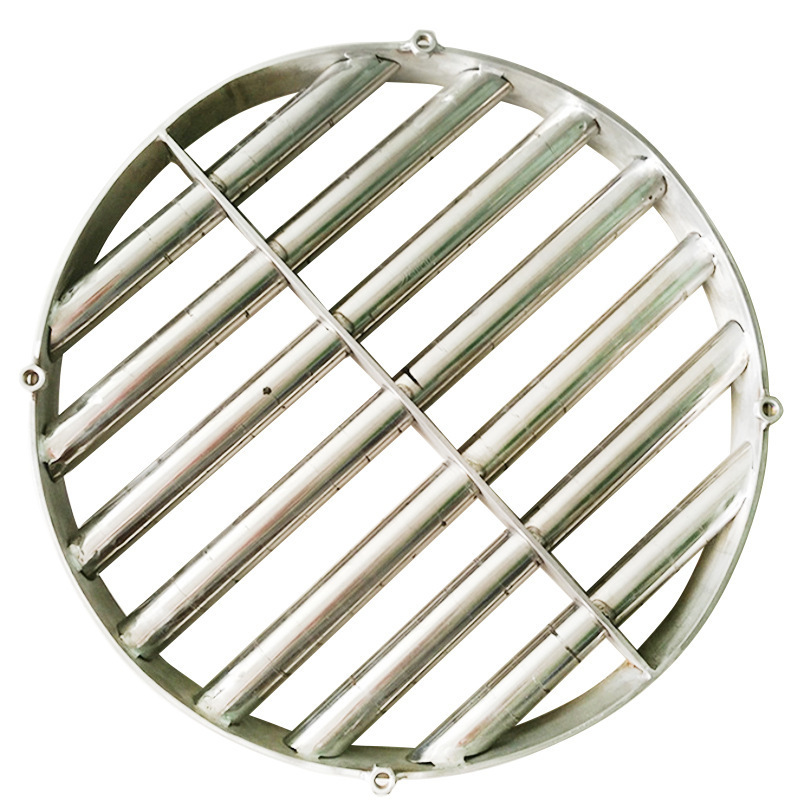

Neodymium Magnet Cleaning Magnetic Frame Magnetic Filter Separator
-
Material:
-
Neodymium iron boron
-
Processing:
-
Sintered Permanent Neodymium Magnet
-
Magnetism direction:
-
Customzied Specific Requirements
-
Coating:
-
Ni+Cu+Ni, Zn, Epoxy, Au, Ni+Cu+Ni+Cr,etc.
-
Testing:
-
Salt Spray Testing
-
Working Temperature:
-
80-220 Degree Centigrade
-
Founded:
-
Since 2011
-
Certification:
-
ISO 9001,IATF16949
Quick Details
-
Tolerance:
-
±1%
-
Grade:
-
NdFeB
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
OEM
-
Model Number:
-
N35-N52
-
Product Name:
-
Neodymium Magnet Cleaning Magnetic Frame Magnetic Filter Separator
-
Material:
-
Neodymium iron boron
-
Processing:
-
Sintered Permanent Neodymium Magnet
-
Magnetism direction:
-
Customzied Specific Requirements
-
Coating:
-
Ni+Cu+Ni, Zn, Epoxy, Au, Ni+Cu+Ni+Cr,etc.
-
Testing:
-
Salt Spray Testing
-
Working Temperature:
-
80-220 Degree Centigrade
-
Founded:
-
Since 2011
-
Certification:
-
ISO 9001,IATF16949
Product Description
Grades of Neodymium
N35, N38, N42, N38SH.....is neodymium magnets grade. As a very general rule, the higher the grade (the number following the 'N'),the stronger the magnet. The highest grade of neodymium magnet currently available is N52. Any letter following the grade refers to the temperature rating of the magnet. If there are no letters following the grade, then the magnet is standard temperature neodymium. The temperature ratings are standard (no designation) - M- H - SH - UH - EH. You find the temperature rating of each grade on our Specifications of Neodymium Magnets Page.
Magnet Shapes
Platings/Coatings
There are a variety of options for coatings, but nickel is the most common and usually preferred. Our nickel plated magnets are actually triple plated with layers of nickel, copper, and nickel again. This triple coating makes our magnets much more durable than the more common single nickel plated magnets. Some other options for coating are zinc, tin, copper, epoxy,silver and gold.Our gold plated magnets are actually quadruple plated with nickel, copper, nickel and a top coating of gold.
|
Description:
|
Ndfeb Magnet
|
|
|
|
|||
|
Material:
|
Neodymium-Iron-Boron
|
|
|
|
|||
|
Product Name:
|
NdFeB Magnets,Sintered Rare Earth Magnets,Neodymium-Iron-Boron Magnets,Permanent Magnets
|
|
|
|
|||
|
Working
Temperature:
|
Grade
|
Temperature
|
|
|
|||
|
|
N28-N48
|
80ºC
|
|
|
|||
|
|
N50-N55
|
60ºC
|
|
|
|||
|
|
30M-52M
|
100ºC
|
|
|
|||
|
|
28H-50H
|
120ºC
|
|
|
|||
|
|
28SH-48SH
|
150ºC
|
|
|
|||
|
|
28UH-42UH
|
180ºC
|
|
|
|||
|
|
28EH-38EH
|
200ºC
|
|
|
|||
|
|
28AH-33AH
|
200ºC
|
|
|
|||
|
Magnet Shape:
|
Disc,Cylinder,Block,Ring,Countersunk,Segment,Trapezoid and Irregular shapes and more.Customized shapes are available
|
|
|
|
|||
|
Magnet Coating:
|
Ni,Zn,Au,Ag,Epoxy,Passivated,etc
|
|
|
|
|||
|
|
Very high resistance to demagnetization
|
|
|
|
|||
|
|
High energy for size
|
|
|
|
|||
|
|
Good in ambient temperature
|
|
|
|
|||
|
|
Moderately priced
|
|
|
|
|||
|
|
The material is corrosive and should be coated for long term maximum energy output
|
|
|
|
|||
|
|
Low working temperature for heat applications, but higher levels of heat resistance materials are being introduced periodically
|
|
|
|
|||
|
Applications:
|
Sensors,motors,filter automobiles,magnetics holders,loudspeakers,wind generators, medical equipments, etc.
|
|
|
|
|||
Production Flow
R&d and Testing Center
Packing & Delivery
We also can customize carton according your requirement.
About Us
We focuse on designing ,researching,developing,manufacturing and selling magnets and Magnetic Assemblies. we mainly engaged in the marketing of sintered and bonded NdFeb Magnets, Alnico Magnets, SMCO Magnets, Ferrite Magnets, Rubber Magnets, magnetic tools and assemblie .We occupies a total area of 15000 m2, building area of 20000m2, and employed world class manufacturing production and modern facilities.We have sophisticated testing instruments. We could produce customized magnets and help our clients to choose the suitable magnets with favourable price.
FAQ
Q1: Are you trading company or manufacturer?
A: We are a professional manufacturer of magnets with more than 11-year experience.Our factory is near shanghai airports, We warmly welcome clients to come to our factory for visit and cooperation.
Q2: How long is your delivery time?
A: Generally it is 3 days if the magnets are in stock. Or it will take 15-20 days to manufacture.
Q3: Can you provide samples? Is it free or extra?
A: Yes. We could offer samples for free charge if the magnets are in stock but you need to pay the delivery cost.
Q4: Can you add my logo to the products?
A: Yes.
Q5: Can you provide OEM or ODM service?
A: Yes. OEM & ODM are warmly welcome.
Q6: How do you control your quality?
A: To ensure the quality of the products, every production procedure is inspected strictly by the professional QC team from all aspect, and such prudence makes every piece product qualified.
