Quick Details
-
Dimension(L*W*H):
-
2.4mx0.8mx1.4m
-
Weight:
-
750kg
-
Warranty:
-
12 Months
-
Mobility:
-
portable
-
Product name:
-

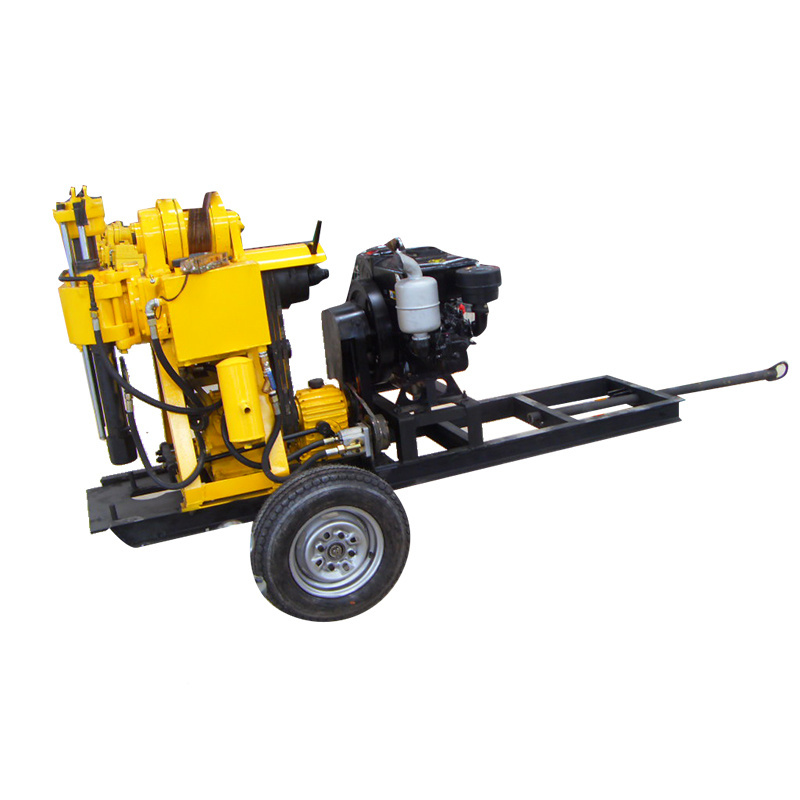

medium size mechanical water well drill rig
-
Drilling depth:
-
200m
-
Drilling diameter:
-
75-325mm
-
Application:
-
water well drilling and soil test
-
Drill pipe size:
-
50mmx4.2m
-
Drill angle:
-
65-90 degree
-
Spindle speed:
-
64/128/287/557r/m
-
Max Winch pull capacity:
-
2500kg
-
Mud pump:
-
145L/Min
-
Drill mast:
-
6.5m
-
Certification:
-
ISO9001-2000
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Yotal
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
2.4mx0.8mx1.4m
-
Weight:
-
750kg
-
Warranty:
-
12 Months
-
Mobility:
-
portable
-
Product name:
-
medium size mechanical water well drill rig
-
Drilling depth:
-
200m
-
Drilling diameter:
-
75-325mm
-
Application:
-
water well drilling and soil test
-
Drill pipe size:
-
50mmx4.2m
-
Drill angle:
-
65-90 degree
-
Spindle speed:
-
64/128/287/557r/m
-
Max Winch pull capacity:
-
2500kg
-
Mud pump:
-
145L/Min
-
Drill mast:
-
6.5m
-
Certification:
-
ISO9001-2000
Product Application
Drill for Water well, Geological exploration/investigation, Soil sample taking,Soil test, SPT Test, Mining project, etc.
Main Features
1.Drills up to 250m deep, 75-300mm diameter , trailer mounted.
2. Hydraulic control, diesel engine/electric engine , trailer mounted.
3. Drill on soil, sand, gravel, thick\hard rocks, marble, Quartz, and any other hard ground, etc.
4. In the accessory list there are alloy bit for soil, diamond bit for rock, PDC bit for small rock.
5. It is a full set of machine with all 200m accessory can be used upon arrival.
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Machine Parts
Name: Diesel engine
Brand: changchai
Original: China
Domestic famous engines, strong driving force, low fuel consumption, 14.7KW
Main Features
Name:
Mud pump
Brand:
YT
Original:China
Flow: 145L/min
Max pressure: 2MPa
Times/min: 93
Inlet hose dia:51mm
Outlet hose dia: 38mm
Machine parts
Name: Drilling pipe/rod.
Brand: YT
50mm /60mm diameter
4.2m length
Main Features
Name:
Skid mounted
Brand:YT
Original: China
Skid mounted and trailer mounted
Machine part
Name: SPT Tools
Main parts
Alloy bit: for sand, soil drilling
Diamond bit: rock, hard rock, quarry, marble , gold ground drilling
3 wing bit: Hole opening drilling
1400m core drill rig
91.8% Response Rate
Hydraulic DTH water well Drill rig
91.8% Response Rate
Anchoring Drill rig
91.8% Response Rate
600m core drill rig
91.8% Response Rate
crawler core drill rig.
91.8% Response Rate
Tractor core drill rig
91.8% Response Rate
2.The machine are expected to be functioning 10years with ability of spare parts.
3.You can enjoy technical support by phone call or email forever.We will respond quickly to provide a prompt solution.
4.On-site training could be executed if this term is included in the contracts agreed.
5.We can assign our engineers abroad for on-site service if this term is included in the contracts agreed
