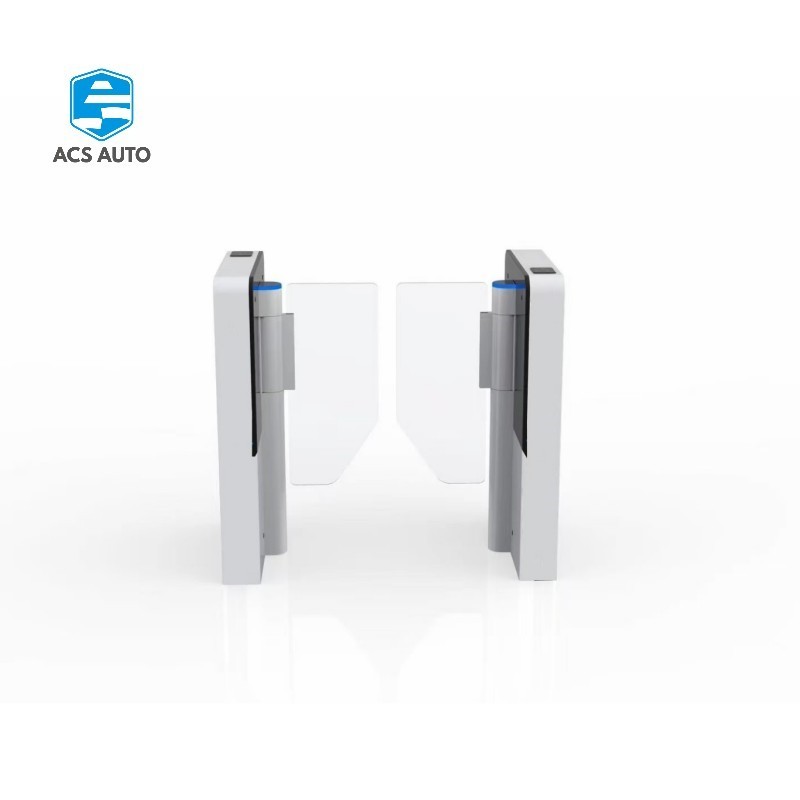

Commercial Smart Access Control Automatic Swing Barrier Speed Gate

Commercial Smart Access Control Automatic Swing Barrier Speed Gate

FOB Reference Price: Get Latest Price

≥2 Pieces

US $899

≥20 Pieces

US $799

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Power Supply:: AC100~240V

Material:: Aluminum Alloy

Channel Width:: 600-900mm

Passing Speed:: 35-40Persons/min

Unlock Time:: 0.2s

Size:: L600*W120*H980mm

MCBF:: 5 Million Cycles

Quick Details

Place of Origin:: Guangdong,China, Guangdong,China

Brand Name:: ACS AUTO, ACS AUTO

Model Number:: ACS 101, ACS 101

Power Supply:: AC100~240V

Material:: Aluminum Alloy

Channel Width:: 600-900mm

Passing Speed:: 35-40Persons/min

Unlock Time:: 0.2s

Size:: L600*W120*H980mm

MCBF:: 5 Million Cycles

Specification

Product name	Access Control Speed Gate
Material	Full 10mm Acrylic +1.5mm Painted Cold Plate
Size	600130980 mm
Working voltage	24V 40W
Passage Direction	Single directional/Bi-directional
Operating temperature	-25℃ ~ +60℃, RH ≤90%
passage width	600mm
Pass speed	30-45persons/min
Weight	65kg
Communication Interface	RS485, Dry contact
Power Input	DC100-240V,50/60HZ
Operating Time	0.3 -0.9seconds(Adjustable)
MCBF	5 Million Clycles Times
Mechanism	Brushless Servo Motor+Encoder+Clutch
Light	3-Color Stripes+ Cube Light

Products Description

Cold Plate Paint

High level of craftsmanship
Bright colors, variety of choices
Easy to clean and maintain

Button Infrared

Easy installation and long distance, accurate transmission, good dustproof and waterproof effect

Swipe Panel

Anti-scratch acrylic material

Highly integrated and modular

Easy to disassemble and fix the direction

Column Indicator

Adopt integrated mold design,

Easy disassembly and assembly, soft lighting

Light color can be switched according to demand

Case

Packing & Delivery

Foam+Carton BOX+Seaworthy Wooden

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging
services will be provided.

FAQ

Q1: Can we connect your access control system with our system?
A: Yes, we provide SDK and Software development service with connection port.

Q2: Are your bollard/turnstile/barrier gates waterproof?
A: Yes, our bollard turnstile/barrier gates have water proof feature.

Q3: How can we install those bollard/turnstile/barrier gates? Is it easy to do?
A:Yes, it's really easy to install, we have done most of the jobs before sending our products. You just need fix the gates with screws, and connect power supply cables and internet cables.

Q4: Can you produce as per our size?
A: We can offer the customization service as per your detail requirement, and we also can design the unique turnstile products according to your real site to make different size, software and features.
