Quick Details
-
Max. Loading Capacity:
-
5000L
-
Weight (KG):
-
380 KG
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Duan Yue
-
Voltage:
-
Customized
-
Dimension(L*W*H):
-
Customized
-
Power (kW):
-
5.5 kW
-
Machinery Test Report:
-
Not provided
-
Product name:
-
Mixing Tank / Liquid soap mixing tank/stainless steel mixing tank
-
Function::
-
Homogenzing/mixing tank stainless
-
Capacity::
-
50-5000L
-
Heating method:
-
Electric heating or steam heating
-
Jacket:
-
3 Layers
-
Stirrer type:
-
High Speed Homogenizer
-
Homogening speed:
-
0-3600 R/min
-
Motor Brand:
-
ABB/SIEMENS
-
Control:
-
PLC+ Touch Screen/Button control
-
Advantage:
-
Easy Control
Quick Details
-
Barrel Volume (L):
-
300
-
Max. Loading Volume (L):
-
5000 L
-
Range of Spindle Speed(r.p.m):
-
1 - 63 r.p.m
-
Max. Loading Capacity:
-
5000L
-
Weight (KG):
-
380 KG
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Duan Yue
-
Voltage:
-
Customized
-
Dimension(L*W*H):
-
Customized
-
Power (kW):
-
5.5 kW
-
Machinery Test Report:
-
Not provided
-
Product name:
-
Mixing Tank / Liquid soap mixing tank/stainless steel mixing tank
-
Function::
-
Homogenzing/mixing tank stainless
-
Capacity::
-
50-5000L
-
Heating method:
-
Electric heating or steam heating
-
Jacket:
-
3 Layers
-
Stirrer type:
-
High Speed Homogenizer
-
Homogening speed:
-
0-3600 R/min
-
Motor Brand:
-
ABB/SIEMENS
-
Control:
-
PLC+ Touch Screen/Button control
-
Advantage:
-
Easy Control
Products Description

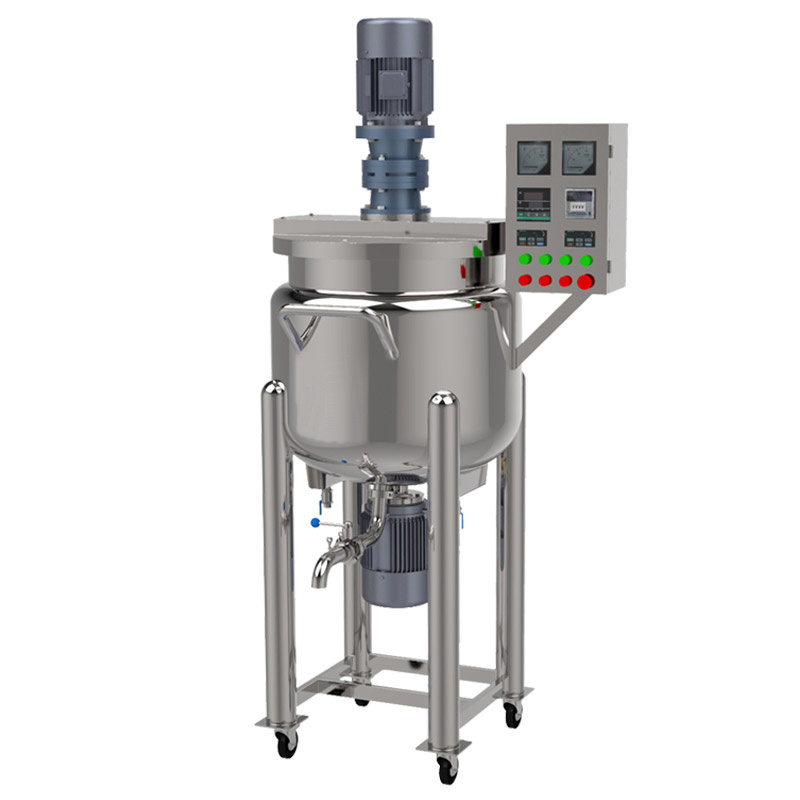

Skin Whitening Cream Mixing Equipment Homogenizer Mixer Cosmetic Body Cream Making Machine
Product Feature
1. The all-round wall scraping mixing adots the frequency converter for speed adjustment, so that high quality products of different processes according to customer requirements.
2.The diversified high-speed homogenizer can powerfully mix solid and liquid raw materials and can rapidly dissolve many indissoluble materials such as AES,AESA,LSA,etc. during the liquid detergent production process so as to save energy consumption and shorten production period.
3.The pot body is welded by imported three -layer stainless steel plate.The tank body and pipes adopt mirror polishing ,which fully confirms to GMP requirement.
4.According to costomer requirement,the tank can heat and heat and cool materials. The heating way including steam heating and eletric heating. Easy to discharge, bottom direct discharge or by transfer pump.
Product Details
Product Paramenters
|
Model
|
Capacity(L)
|
Mixing Power
|
Mixing Speed
|
Homohenizing Power
|
Homohenizing Speed
|
Heating Method
|
|
PME-500
|
500
|
2.2
|
0-65
|
5.5-7.5
|
3000
|
Steam Heating or Electric Heating (Optional)
|
|
PME-1000
|
1000
|
4
|
0-65
|
7.5-11
|
3000
|
|
|
PME-2000
|
2000
|
5.5
|
0-53
|
11-15
|
3000
|
|
|
PME-3000
|
3000
|
7.5
|
0-53
|
18
|
3000
|
|
|
PME-5000
|
5000
|
11
|
0-42
|
22
|
3000
|
|
|
PME-10000
|
10000
|
15
|
0-42
|
30
|
3000
|
|
