Rated Load:1200W (incandescent lamp) 300W (energy-saving lamp)
Explore More Products
- Product Details
- {{item.text}}
Quick Details
-
HF System:
-
5.8GHz CW radar, ISM band
-
Ambient Light:
-
3-2000LUX (adjustable)
-
Time-Delay:
-
Min. 10sec±3sec Max. 12min±1min
-
Rated Load:
-
1200W (incandescent lamp) 300W (energy-saving lamp)
-
Detection motion speed:
-
100W (incandescent lamp) 300W (energy-saving lamp)2
-
Installation Height:
-
1.5m-3.5m
-
Name:
-
Microwave Sensor Switch
Quick Details
-
Usage:
-
Ray Sensor
-
Detection Range:
-
360°
-
Power Source:
-
220-240V/AC
-
HF System:
-
5.8GHz CW radar, ISM band
-
Ambient Light:
-
3-2000LUX (adjustable)
-
Time-Delay:
-
Min. 10sec±3sec Max. 12min±1min
-
Rated Load:
-
1200W (incandescent lamp) 300W (energy-saving lamp)
-
Detection motion speed:
-
100W (incandescent lamp) 300W (energy-saving lamp)2
-
Installation Height:
-
1.5m-3.5m
-
Name:
-
Microwave Sensor Switch
Specification
|
Specifications:
|
|
|
|
Detection Range
|
360°
|
|
|
Power Source
|
220V/AC-240V/AC
|
|
|
Power Frequency
|
50/60Hz
|
|
|
HF System
|
5.8GHz CW radar, ISM band
|
|
|
Time-Delay
|
Min. 10sec±3sec Max.12min±1min
|
|
|
Power Consumption
|
0.9W
|
|
|
Ambient Light
|
3-2000LUX (adjustable)
|
|
|
Installation
Height
|
1.5m~3.5m
|
|

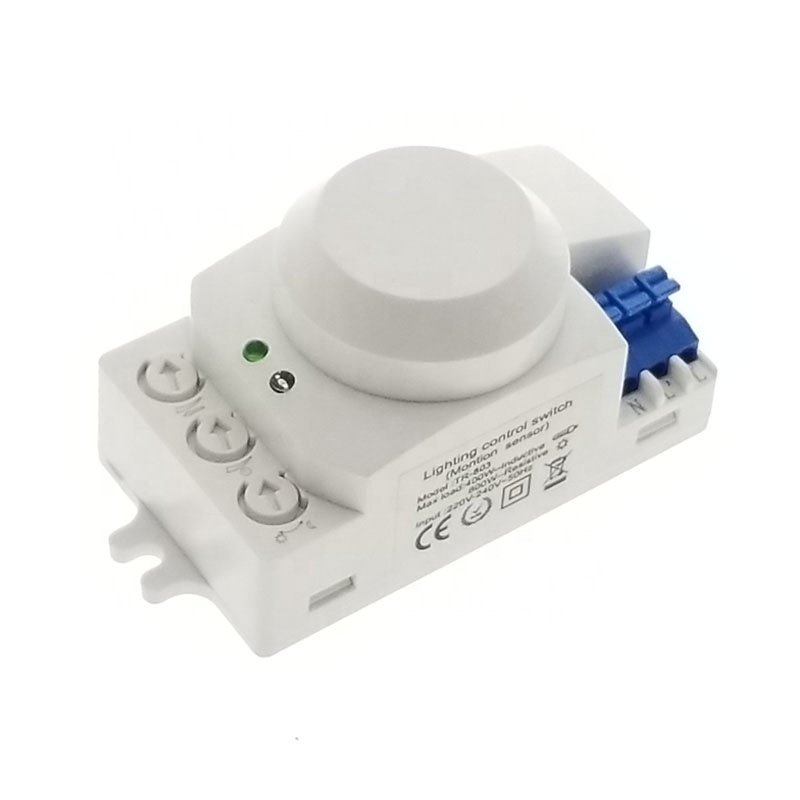

Product Description
Size:
Item Name:
Microwave PIR Sensor Switch
Power Sourcing:220V/AC-240V/AC
Detection Range :360°
Detection Distance :1-8m (radius) adjustable
Detection Range :360°
Detection Distance :1-8m (radius) adjustable
Ambient Light:3-2000LUX (Adjustable)
Description
The product is a new saving-energy switch; it adopts microwave sensor mould with high-frequency electro-magnetic wave (5.8GHz), integrated circuit. It gathers automatism, convenience, safety, saving-energy and practicality functions. The wide detection field is consisting of detectors. It works by receiving human motion. When one enters the detection field, it can start the load at once and identify automatically day and night. Its installation is very convenient and its using is very wide. Detection is possible through doors, panes of glass or thin walls.
