Quick Details
-
Product name:
-
Adult Chicken Automatic Vaccine Electric Syringe Machine
-
Material:
-
Medical silicon rubber, Stainless steel
-
Usage:
-
Adult Chicken Vaccine Syringe
-
Driving Power:
-
Compressed air,air pressure larger than 0.15MPa
-
Power Source:
-
AC: 220/110V
-
Injection Dose:
-
0.2-0.6ml, Custom dosage upon request
-
Suitable Injection Objects:
-
Poultry of 3 weeks or older
-
Suitable Vaccines:
-
Water or oil based vaccines
-
Max. Injection Rate:
-
3000 birds per hour
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
GREAT FARM
-
Model Number:
-
ZA-10
-
Product name:
-
Adult Chicken Automatic Vaccine Electric Syringe Machine
-
Material:
-
Medical silicon rubber, Stainless steel
-
Usage:
-
Adult Chicken Vaccine Syringe
-
Driving Power:
-
Compressed air,air pressure larger than 0.15MPa
-
Power Source:
-
AC: 220/110V
-
Injection Dose:
-
0.2-0.6ml, Custom dosage upon request
-
Suitable Injection Objects:
-
Poultry of 3 weeks or older
-
Suitable Vaccines:
-
Water or oil based vaccines
-
Max. Injection Rate:
-
3000 birds per hour
Prfoducts Description
Product Name
Poultry Farm Air Pump Vaccine Injection Adult Chicken Automatic Vaccine Electric Syringe Machine
Product F eature

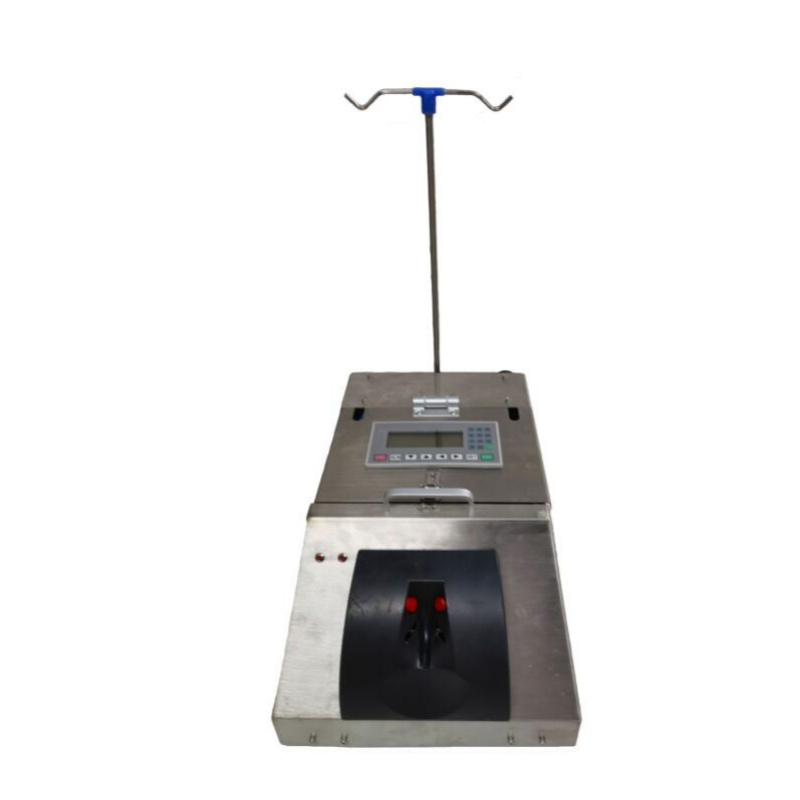

Automatic Vaccinator for Poultry (Electrical Motor Powered) is used for poultry of 2 weeks or older. The operator holds the bird by legs and wings and places the breast against the machine, and the injection completes in less than one second. The machine is very easy to use and maintain. It does not need special training for operation. This vaccinator provides safer, more accurate and consistent injection. It can have injection speed up to 3000 birds per hour.
Specification
|
item
|
value
|
|
Place of Origin
|
China
|
|
|
Henan
|
|
Brand Name
|
GREAT FARM
|
|
Model Number
|
ZA-010
|
|
Properties
|
Diagnosis & Injection
|
|
Product name
|
Adult Chicken Automatic Vaccine Electric Syringe Machine
|
|
Material
|
Medical silicon rubber, Stainless steel
|
|
Usage
|
Adult Chicken Vaccine Syringe
|
|
Driving Power
|
Compressed air，air pressure larger than 0.15MPa
|
|
Power Source
|
AC: 220/110V
|
|
Injection Dose
|
0.2-0.6ml, Custom dosage upon request
|
|
Suitable Injection Objects
|
Poultry of 3 weeks or older
|
|
Suitable Vaccines
|
Water or oil based vaccines
|
|
Max. Injection Rate
|
3000 birds per hour
|
|
Package Weight
|
22kg
|
|
Package Size
|
59*43*34cm
|
Installation Guide
1.Take out soft pressure tube , insert one end into the outlet of the air compressor and one end into the valve inlet on the back of machine body.
2.Take out the hanger and insert the shank through two ring screws on the rear cover of the machine body.
3.Take out the infusion tube from the box for injection spare parts, connect the straight end to the inlet of the syringe, pass the infusion tube with the needle end through the perforate on the top cover, insert the needle into the bottle, and then hang the bottle on the hanger.
