1 The light’s lighting function is controlled by DMX-512, very convenient;
2 Using bead LED chips, pure color temperature, can realize 0-100% dimmer;
3 The light body adopts outside frame design, the modeling is beautiful, installation very convenient, safe and reliable;
4 High power output, every color can keep output 110W;
5 3200/5600K color temperature optional;
- Product Details
- {{item.text}}
Quick Details
-
Warranty(Year):
-
3-Year
-
Color Temperature(CCT):
-
3200K/5600K, from warm white to color white, bi color
-
Product Weight（kg）:
-
5.5
-
Input Voltage(V):
-
AC100V-240V, 50/60Hz
-
Lamp Luminous Flux(lm):
-
8250
-
CRI (Ra>):
-
95
-
Working Temperature(℃):
-
-25 - 45
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
VanGaa
-
Model Number:
-
VG-HTC630
-
Light sources:
-
1200pcs 0.2W high CRI and high brightness LED bead chips
-
Lifespan:
-
50,000hours
-
Beam angle:
-
120degree
-
Dimmer:
-
0~100% linear dimmer
-
CRI:
-
Ra≥97
-
Color tempeature:
-
3200k/6000k adjustable
-
DMX channels:
-
1CH/2CH
-
Control mode:
-
DMX-512, Demo mode, Manual
-
Control panel:
-
Digital Tube + 4 buttons
Quick Details
-
Lamp Luminous Efficiency(lm/w):
-
95
-
Application:
-
Hotel
-
Lamp Body Material:
-
Aluminum Alloy
-
Warranty(Year):
-
3-Year
-
Color Temperature(CCT):
-
3200K/5600K, from warm white to color white, bi color
-
Product Weight（kg）:
-
5.5
-
Input Voltage(V):
-
AC100V-240V, 50/60Hz
-
Lamp Luminous Flux(lm):
-
8250
-
CRI (Ra>):
-
95
-
Working Temperature(℃):
-
-25 - 45
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
VanGaa
-
Model Number:
-
VG-HTC630
-
Light sources:
-
1200pcs 0.2W high CRI and high brightness LED bead chips
-
Lifespan:
-
50,000hours
-
Beam angle:
-
120degree
-
Dimmer:
-
0~100% linear dimmer
-
CRI:
-
Ra≥97
-
Color tempeature:
-
3200k/6000k adjustable
-
DMX channels:
-
1CH/2CH
-
Control mode:
-
DMX-512, Demo mode, Manual
-
Control panel:
-
Digital Tube + 4 buttons
The Manufacturer
Small&
Medium Studio Lighting Manufacturer
：
HTC630 is our company's lightweight product , net weight 5.5 KG , fanless , measured power 110W, high color rendering index ( CRI95+) , fixed color temperature, which can solve various problems such as dark and unclear characters in video picture . No matter the room size, floor height or special-shaped ceiling, VanGaa has a complete lighting solution.
Applicable scene
：
Best Choice for your professional stage and theater TV station
Master-Slave Control & Memory Function
： Any light can be the master light to control other lights when they are at the same channel and group. As well as the light built-in memory function that can store the last settings when you turn on/off the light, enables you to continue your undone work smoothly.
Video Call Lighting
：
With adjustable brightness from 10% to 100%, get soft and even lighting on a video call with this tabletop lighting kit. Ideal for Zoom meetings, Skype calls, YouTube streaming, and more
Low maintenance cost
：
The life time is about 50000 hours, it can be replace the traditional soft light, reduces costly repairs and the need for replacements. A weatherproof Die-casting Aluminum housing protects internal components and is powder coated to resist rust. This LED area light is equipped with a constant-current driver and operates within a wide 100-240VAC range.
Fanless：
Compared with the same size
VG-HTC1200C
,
VG-HTC630
fanless has a better heat dissipation function, using a larger copper tube radiator , the top of which is stretched aluminum and a perforated lid is designed.
|
Information
|
|
|
|
Light source
|
630pcs 0.2W high CRI and high brightness LED bead chips
|
|
|
Color temperature
|
3200K/5600K optional
|
|
|
Beam angle
|
120°
|
|
|
Noise
|
fanless quite no noise
|
|
|
CRI
|
Ra≥95
|
|
|
DMX channel
|
1CH/2CH RDM; DMX-512
|
|
|
Related power
|
110W AC100-240 V, 50/60 Hz
|
|
|
Body dimension
|
D570*W265*H109mm/22.44” x10.43” x 4.29”
|
|
|
Net weight
|
5.5kg/12.13 lbs
|
|

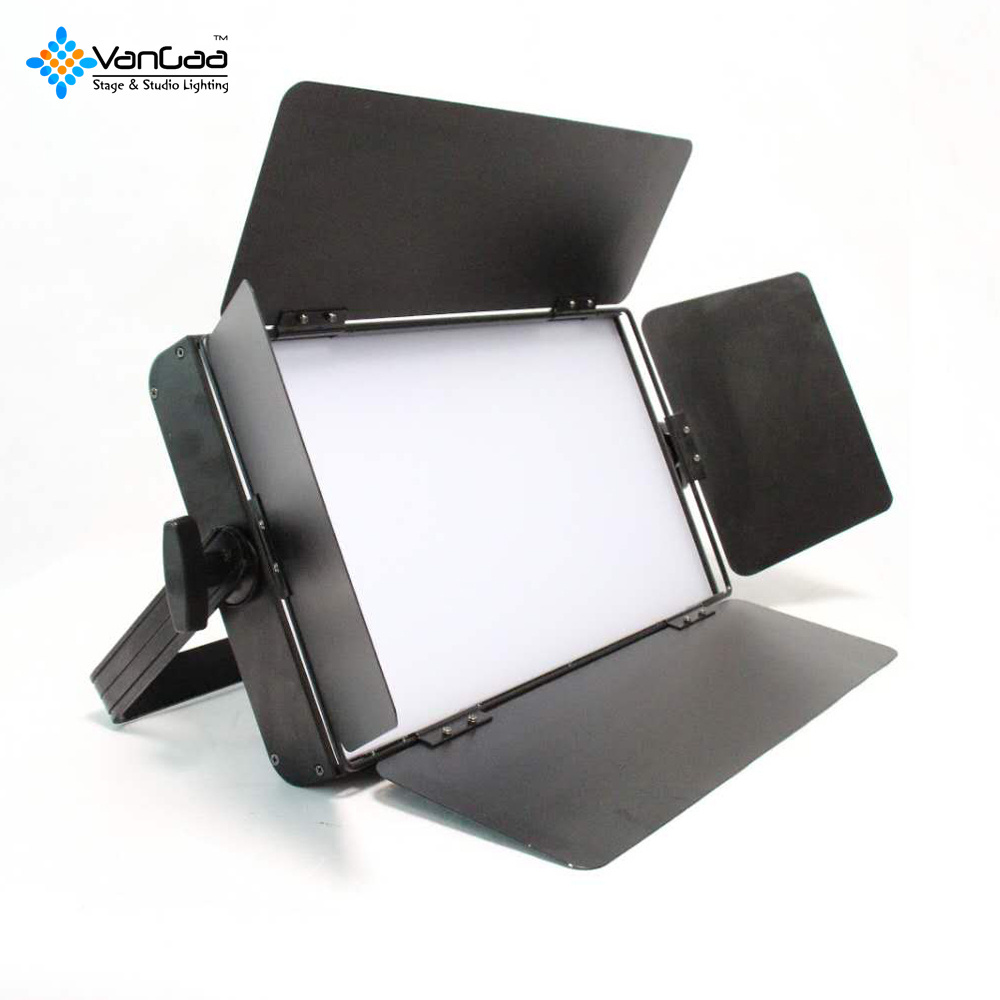

VanGaa 110W VG-HTC630 Fanless Fixed Color Series Led
Video Panel Light For TV Station
Designed for various theater studio TV station lighting
● Designed with heavy and durable construction, low maintenance cost,generally used for fixed installation on the top of the theater studio.
Designed for various theater studio TV station lighting
● Designed with heavy and durable construction, low maintenance cost,generally used for fixed installation on the top of the theater studio.
●
The die-cast aluminum is rugged, and it uses high-quality fans with low noise, which helps your stage lighting to dissipate heat well.
●
White diffuser can soften the light source and enhance skin tone in portraits photography.
Please note ： If you like higher brightness lighting, please choose our FIXED COLOR SERIES. If you need a wider color temperature range, you can refer to our dual color temperature panel lights
Please note ： If you like higher brightness lighting, please choose our FIXED COLOR SERIES. If you need a wider color temperature range, you can refer to our dual color temperature panel lights
A Professional Lighting Kit for TV Station
360° Free Rotation
* U bracket design help you turn 360° free rotation to different angle shooting. help you creat more
* comes with adjustable stand
* comes with adjustable stand
The Back
*
switch ON/OFF
* Digital Display Tube
* Digital Display Tube
Fanless Heat Dissipation Design
* made of aluminum alloy and
larger copper tube radiator
heat dissipation design, protect the light for long time use.
* high quality material ensure it durable for long life.
* high quality material ensure it durable for long life.
Barn Door & U Bracket Design
* Included detachable barn-door helps better control the light; keeping stray light from other areas from reflecting into the camera lens and causing flare. When you close the barndoor, it can protect the lamp beads.
* U bracket design enable you adjust the light 360 ° freely, meet your different shooting angle needs
* U bracket design enable you adjust the light 360 ° freely, meet your different shooting angle needs
Light and Portable
* Weight: 5.5KG (with barndoor)
* Size: D570*W265*H109mm
* Related voltage: AC90V-240V, 50/60Hz
* Power: 110W
* CRI: 95
* Size: D570*W265*H109mm
* Related voltage: AC90V-240V, 50/60Hz
* Power: 110W
* CRI: 95
Package Included
* Cable: 1set DMX in and DMX out signal cable, and 1set Power in and Power out power cable with plug [standard configuration]
* Light visor: 1pc light visor [optional configuration]
* 1 x Manual
* Light visor: 1pc light visor [optional configuration]
* 1 x Manual
VanGaa LED Studio Panel Light Series
Product Description
Technical Specifications
Light Sources
* LED: 630pcs 0.2W high CRI and high brightness LED bead chips
* Lifespan: 50,000hours
* Color: WW/CW
Optics
* Beam angle: 120°
* Dimmer: 0~100% linear dimmer
Light Output
* CRI: Ra≥95
* Color temperature: 3200K/5600K
* LED: 630pcs 0.2W high CRI and high brightness LED bead chips
* Lifespan: 50,000hours
* Color: WW/CW
Optics
* Beam angle: 120°
* Dimmer: 0~100% linear dimmer
Light Output
* CRI: Ra≥95
* Color temperature: 3200K/5600K
Control
* DMX channel: 1CH/2CH
* Control mode: DMX-512, Demo mode, Manual
* Control panel: Digital Tube + 4 buttons
* DMX channel: 1CH/2CH
* Control mode: DMX-512, Demo mode, Manual
* Control panel: Digital Tube + 4 buttons
Power Supply
* Related voltage: AC90V-240V, 50/60Hz
* Related power:keep output 110W
Construction
* Body dimension: D570*W265*H109mm
* Net weight: 5.5kg
* Shell color: black
* Housing material: aluminum alloy
* Related voltage: AC90V-240V, 50/60Hz
* Related power:keep output 110W
Construction
* Body dimension: D570*W265*H109mm
* Net weight: 5.5kg
* Shell color: black
* Housing material: aluminum alloy
Working Environment
* Working temperature: -25-40℃
* Cooling: aluminum radiator and light body
* Protection rating: IP20
* Working temperature: -25-40℃
* Cooling: aluminum radiator and light body
* Protection rating: IP20
Spare Parts
* Cable: 1set DMX in and DMX out signal cable, and 1set Power in and Power out power cable with plug [standard configuration]
* Light visor: 1pc light visor [optional configuration]
* Cable: 1set DMX in and DMX out signal cable, and 1set Power in and Power out power cable with plug [standard configuration]
* Light visor: 1pc light visor [optional configuration]
Package
* Carton board box package size: 650*450*190mm(1pc/carton) [c:18-01-02]
* N.W/G.W/V.W: 5.5kg/7kg/12kg
* Carton board box package size: 650*450*190mm(1pc/carton) [c:18-01-02]
* N.W/G.W/V.W: 5.5kg/7kg/12kg
