- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
YARMEE
-
Model Number:
-
YC845
-
Product Name:
-
video sound equipment
-
Power supply:
-
DC24V
-
Current drain:
-
40mA
-
Item:
-
conference room audio
-
Sensitivity:
-
-47db
-
S/N:
-
65db
-
Design:
-
video conferencing unit
-
Frequency response:
-
100-10KHZ
-
Dimension(W,D,H):
-
190*130*56mm
-
Length of goosen:
-
400mm (Activity)
Quick Details
-
Type:
-
Audio Conference System, Video Conference System
-
Function:
-
conference microphone
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
YARMEE
-
Model Number:
-
YC845
-
Product Name:
-
video sound equipment
-
Power supply:
-
DC24V
-
Current drain:
-
40mA
-
Item:
-
conference room audio
-
Sensitivity:
-
-47db
-
S/N:
-
65db
-
Design:
-
video conferencing unit
-
Frequency response:
-
100-10KHZ
-
Dimension(W,D,H):
-
190*130*56mm
-
Length of goosen:
-
400mm (Activity)
YARMEE Full function video conference system voting system YC845 with built-in speaker
YC845 YARMEE CONFERRNCE SYSTEM
As the multiple-conference is more and more popular, the requesting of the meeting equipments are higher for the multi-functional meeting room, it needs the function of video camera auto-track, voting, electing and interpretation in lots of the discussion meeting situations. Our company developed the multi-functional meeting control system on the base of summarizing the experience of multiple-conference and speaking system for many years.
This conference system was designed by the latest digital technology in accordance with IEC914 and ISO standards. It's a high effective multi-functional meeting system for a meeting or conference, and it's easy to set-up, debug and use without training.
YC845M YARMEE CONFERRNCE SYSTEM Main Controller
Features:
*Mix discussion, camera tracking and voting functions together
*Teleconferencing is allowed with telephone coincidence
*Built in frequency shifting, restraining screaming
*The rack hole: fixed the main machine in the 19'' standard rack
*Supports automatic camera tracking
*Tracking blackout remembering function, still tracking even breaking away from a computer
*The main machine has 4 route can connect 80 units, through extend power machine can connect 2000 units
*Seceding the computer and controlling the keyboard could bring about the function of automatic tracking video
*It has LCD display screen menu of Chinese and English. Bring about the control of the meeting function with the
function-key
*Support Meeting Mode: Limit (1/2/3/4/5/6), FIFO (1/2/3/4/5/6), Chairman Only,AUTO
Specifications:
| Name | YC845M |
| Input/output | 8P-DIN*4 XLRM*1 RCA*1 6.35mm*1 |
| Input | RCA*1 |
| Power supply | AC220V-50HZ |
| Current drain | 120W(MAX) |
| Frequency response | 100-14KHZ |
| Weight | 8.5kg |
| Dimension(W*D*H) | 480×325×88mm |
| Color |
Dark gray
|

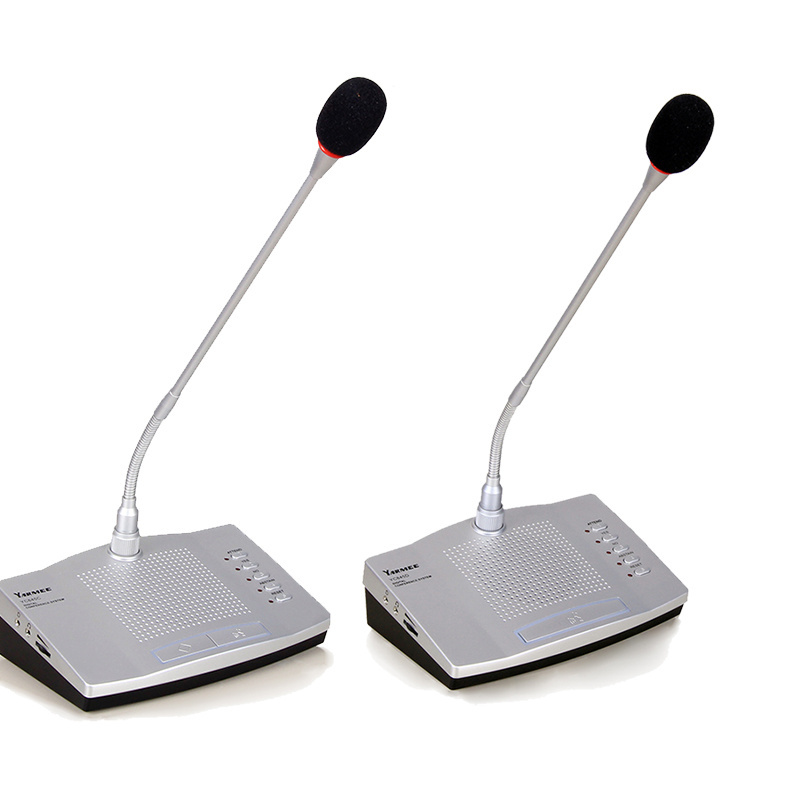

YC845C/D YARMEE MICROPHONE Chairman/Delegate Unit
Features:
*Match with 2.1M connection cable
*Anti-interference from mobile phone
*With 5 buttons Voting:1: “ATTEND” 2:“ YES” 3:“NO” 4:“ABSTAIN” 5:“RESET”
*With two microphone input design (adding the lapel microphone hub)
*
Built-in speaker, earphone jack and volume adjusting knob
*Chairman unit with priority speaking, can shut off each representative speaking unit
*Chairman can shut down all delegates, and chairmen do not be limited by main machine
*Uni-direction condenser microphone: goose neck microphone with red ring indicator LED
Specifications:
| NAME | YC845C/D |
| Input/output | 8P-DIN×1(2M) |
| Input | Condenser Microphone |
| Power supply | DC24V |
| Current drain | 40mA |
| Sensitivity | -47db |
| S/N | 65db |
| Frequency response | 100-10KHZ |
| Weight | 1.1kg |
| Dimension(W,D,H) | 190×130×56mm |
| Colour | Silver/Gray Black |
| Length of goosen | 400mm (Activity) |
