1.
Servo Motor Feeder, 4 suckers for lifting and 4 suckers for conveying structure. Max Speed 12000 sheets/h
2.The paper feeding table has upper and lower over-limit protection
3.The height of non-stop feeding can reach 1300mm, pre-stacking device, non-stop feeding
- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
380V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
JIALITE
-
Dimension(L*W*H):
-
7820*1995*3170mm
-
Weight:
-
7000 KG
-
Max Paper Size:
-
1080*880mm
-
Min Paper Size:
-
360*290mm
-
Speed:
-
10-100m/min
-
Paper Thickness:
-
80-500gsm
-
Overlap Precision:
-
≤±2mm
-
Film Thickness:
-
10/12/15 micrometer
-
Non-Stop Feeding Height:
-
1300mm
-
Collector Paper Height(incl. pallet):
-
1300mm
-
Working power:
-
30-45kw
-
Main motor power:
-
5kw
Quick Details
-
Packaging Type:
-
Film
-
Packaging Material:
-
Plastic, Metal
-
Driven Type:
-
Mechanical
-
Voltage:
-
380V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
JIALITE
-
Dimension(L*W*H):
-
7820*1995*3170mm
-
Weight:
-
7000 KG
-
Max Paper Size:
-
1080*880mm
-
Min Paper Size:
-
360*290mm
-
Speed:
-
10-100m/min
-
Paper Thickness:
-
80-500gsm
-
Overlap Precision:
-
≤±2mm
-
Film Thickness:
-
10/12/15 micrometer
-
Non-Stop Feeding Height:
-
1300mm
-
Collector Paper Height(incl. pallet):
-
1300mm
-
Working power:
-
30-45kw
-
Main motor power:
-
5kw
Product Apperance
Products Description

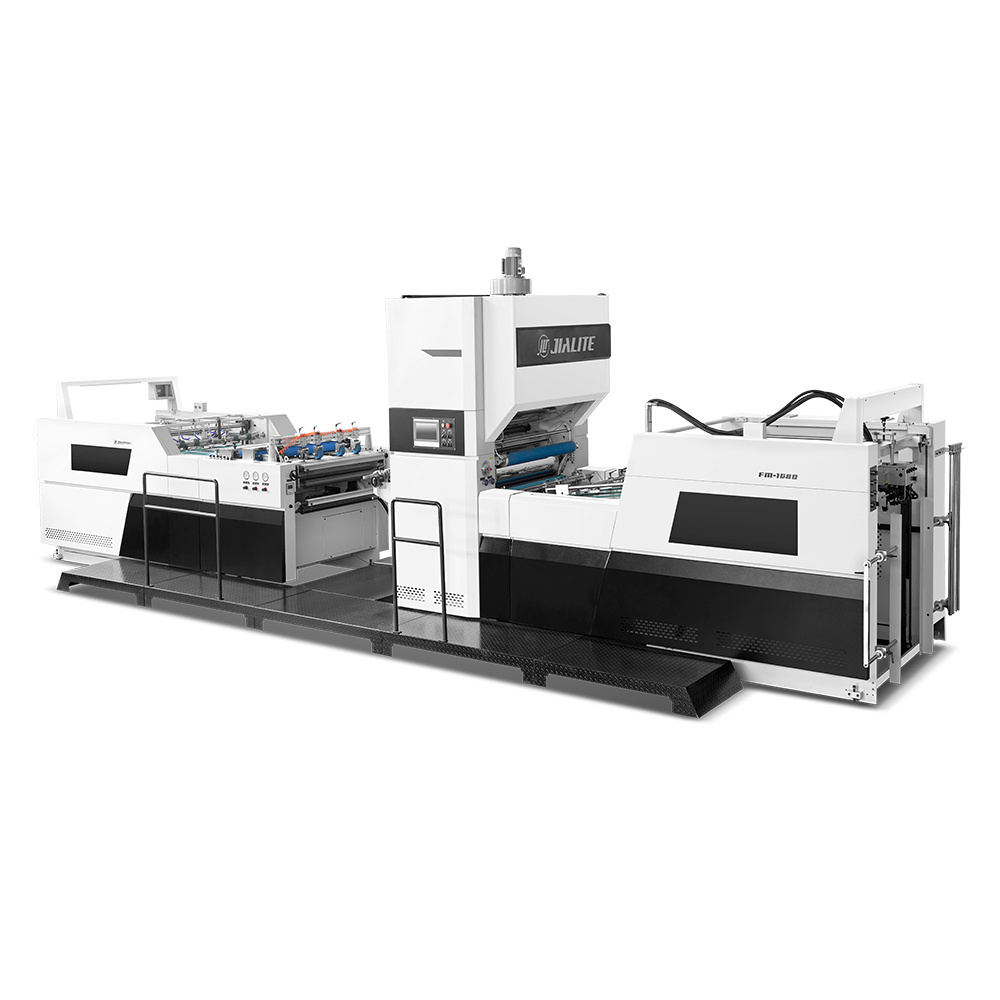

NFM-E fully Automatic Vertical High-precision and multi-duty lamination as a professional equipment used for plastic film
laminating on the surface of paper printed matter.
Water-based gluing (waterborne polyurethane adhesive) dry laminating. (water-based glue, oil-based glue, non-glue film)
Thermal laminating (Pre-coated /thermal film)
Film: OPP, PET, PVC, METALIC, NYLON, etc
laminating on the surface of paper printed matter.
Water-based gluing (waterborne polyurethane adhesive) dry laminating. (water-based glue, oil-based glue, non-glue film)
Thermal laminating (Pre-coated /thermal film)
Film: OPP, PET, PVC, METALIC, NYLON, etc
Specifications for
NFM-E1080 Cardboard PET Laminate Machine Cardboard Machine for Lamination Machine Auto
|
Model
|
NFM-E1080
|
|
Max Paper Size
|
1080*880mm
|
|
Min Paper Size
|
360*290mm
|
|
Speed
|
10-100m/min
|
|
Paper Thickness (Round Knife)
|
80-500gsm (Above 100gsm easy to adjust, E type corrugated paper)
|
|
Overlap Precision
|
≤±2mm
|
|
Film Thickness
|
10/12/15 micrometer
|
|
Common Glue Thickness
|
4-10g/m2
|
|
Pre-Gluing Film Thickness
|
1005,1006,1206g/m2 (1508 和1208 suit deep embossing paper)
|
|
Non-Stop Feeding Height
|
1300mm
|
|
Collector Paper Height(incl. pallet)
|
1300mm
|
|
Main motor power
|
5kw
|
|
Whole machine power
|
65kw
|
|
Working power
|
30-45kw
|
|
Power
|
380V-50Hz-3P
|
|
working Pressure
|
15Mpa
|
|
Air consumption
|
80m³/h
|
|
Cable Thickness
|
25mm
2
|
|
Weight
|
7000kgs
|
|
Dimension (layout)
|
7820*1995*3170mm
|
|
Loading
|
40HQ
|
Details Images
FEEDING UNIT
CONVEYING TABLE
1.The conveying table adopts customized stainless steel corrugated board
2.The brush wheel and rubber pressing wheel move smoothly
2.The brush wheel and rubber pressing wheel move smoothly
SIDE PULL GUAGE
1.
Single servo motor control sheet overlap, accuracy of overlap, error≤±2mm
LAMINATOR HOST
1.Drying roller diameter 800mm, adopt electromagnetic heating system of this big roller, the stainless steel fin electric heating
tubes are builted in the oven.
2.Heating roller adopt electromagnetic heating system, heating up and cooling down fast, Built-in temperature measurement probe
for accurate temperature reading.
tubes are builted in the oven.
2.Heating roller adopt electromagnetic heating system, heating up and cooling down fast, Built-in temperature measurement probe
for accurate temperature reading.
3.The diameter of the heating rubber roller is 380mm, and the pressure can be up to 15T.
TOUCH SCREEN
1.
Simple design of total control touch screen.
2.Support Internet of things remote control, after-sales service more convenient.
3.Language customized
4.one-click activation of multiple units.
GLUING SYSTEM
1.The gluing roller and the measuring roller drive controlled by independent motors, More uniform glue control.
2.The machine stops in an emergency and the pressure film frame rises automatically, so that the film is not contaminated by glue.
The gluing system Teflon process treatment, easy to clean and non-sticky. When machine stop.
2.The machine stops in an emergency and the pressure film frame rises automatically, so that the film is not contaminated by glue.
The gluing system Teflon process treatment, easy to clean and non-sticky. When machine stop.
DISC KNIFE
1.Standard configuration cutting method, suitable for BOPP OPP film cutting.
BOUNCE ROLLER
1.
controlled by an independent motor, and the paper can be separated by using the speed difference
COLLECTOR UNIT
1.The non-stop collector height can reach 1300mm. When the stack is almost full, the delivery conveyor belt will automatically extend to accept the paper. The collector platform will drop. After the tray is replaced, the platform will recycle and complete the non-stop collector.
2.Adopt pneumatic paper sorting structure to ensure the paper in the good order.
3.Avoid paper breakage due to excessive speed hitting the baffle.
4.Counting electric eye: the number of running paper is read by the display, and the data can be cleared and totalized.
5.Induction electric eye, sensing the length of the paper, if the length of the paper changes, the belt will accelerate, and the baffle of the collector will overturn, paper is kicked out..
2.Adopt pneumatic paper sorting structure to ensure the paper in the good order.
3.Avoid paper breakage due to excessive speed hitting the baffle.
4.Counting electric eye: the number of running paper is read by the display, and the data can be cleared and totalized.
5.Induction electric eye, sensing the length of the paper, if the length of the paper changes, the belt will accelerate, and the baffle of the collector will overturn, paper is kicked out..
