Quick Details
-
Brand Name:
-
Greatcity
-
Power:
-
5kw
-
Dimension(L*W*H):
-
3500*1200*1800*mm
-
Weight:
-
750kg
-
Application:
-
Bouffant Cap
-
Material:
-
Aluminium Alloy
-
MOQ:
-
1 Sets
-
Certification:
-
CE
Quick Details
-
Voltage:
-
220v
-
Production Capacity:
-
200pcs/min
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Greatcity
-
Power:
-
5kw
-
Dimension(L*W*H):
-
3500*1200*1800*mm
-
Weight:
-
750kg
-
Application:
-
Bouffant Cap
-
Material:
-
Aluminium Alloy
-
MOQ:
-
1 Sets
-
Certification:
-
CE

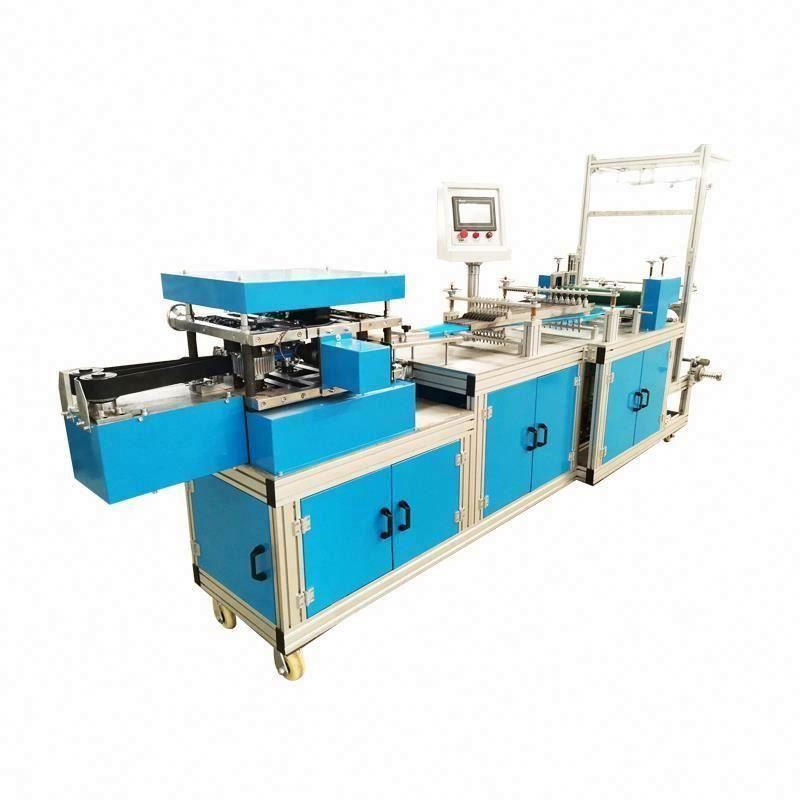

2021 Economic and efficient auto baseball cap&hat ironing machine bouffant cap making machine
Product Description of cap ironing machine
cap ironing machine can produce disposable dustproof non-woven strip caps made of non-woven materials and plastic film materials.
1.The machine has the advantages of good quality,low price ,high output requirements made to order. Shower cap making machine is automated. The whole process is automated from the feeding of raw material to layer products to product counting. Ultra-high-power ultrasonic welding is used to effectively fix both ends of the non-woven fabric and the elastic band.
2.The whole process from the feeding of raw materials to the finished product is automated, and the computer's stepless speed regulation is more flexible, and the whole process only needs one staff member.
3. Frequency conversion control speed regulation. 4. Directly produce finished products at one time.
5. Automatic constant temperature control. 6. The combination of ultrasonic welding and electric heating makes the product more comfortable and firm.
7. The main parts adopt aluminum parts to make the machine lighter and smoother.
Product Features of
cap ironing machine
1. Frequency conversion control speed regulation.
2. Directly produce finished products at one time.
3. Automatic temperature control.
4. The combination of ultrasonic welding and electric heating makes the product more comfortable and firm.
5. The main parts adopt aluminum parts to make the machine lighter and cleaner.
Equipment process of
cap ironing machine
The equipment adopts ultrasonic heat sealing method, frequency conversion speed regulation, production of non-woven materials and plastic film materials, one-time dust-proof non-woven strip caps to complete integrated production from feeding to finished products.
Production Process of
cap ironing machine
Automatic feeding-import-folding-welding-forming and cutting
Technical Parameters of
cap ironing machine
|
Name |
cap ironing machine |
|
M achine size |
3800×900×1600mm( L * W * H ) |
|
P ackage size |
3900×1000×1550mm( L * W * H ) |
|
O utput |
180-200 pcs/min |
|
Voltage |
220v 60HZ( customized as requirements ) |
|
Ultrasound |
3 suits |
|
P roduction power |
4KW |
|
H eating power |
5KW |
|
Raw material width |
460mm/480mm/500mm |
|
Finished product width |
2cm |
|
Non-woven thickness |
10-18 g |
|
Unwinding diameter |
600mm |
|
product size |
Tiled : 25cm , Stretch : 44/48/52cm |
|
N et weight |
800KG |
|
product size |
can be customized according to customer requirements |
Quality gurantee
1. 12months Quality warranty period
2. Provide technical guide for dust collector forever.
3. After Quality Warranty period, will provide the spare parts with cost price.
4. All the machines provided by our factory will be tested before ship.
1.Do you have agent ?
We are looking for agent in every country, if you have interesting, feel free to contact us
2.How can we use the machine?
we will send the english user manual and video with the machine, if not enought, we can teach you online.
3.How can we go to your factory?
You can fly from your country to beijing international airport by air, then you can take fast train from beijing to our city, it takes about 2 hours. we can pick you up from the railway station.
4. Could you send more details to us?
Yes, we can send the catalogue, testing video, install video, more pictures and the user manual to you by email.
