Quick Details
-
Brand Name:
-
FOC or OEM
-
No. of Fiber:
-
2.
-
Product name:
-
Fiber Optic Duplex Adapter
-
Material:
-
polymer
-
Simplex or Duplex:
-
Duplex
-
Sleeve:
-
Zirconia Ceramic
-
Mode:
-
Singlemode
-
Packing Quantity:
-
50 pcs/pack
-
Application:
-
FTTH FTTB FTTX Network
-
Certification:
-
CE RoHS FCC
-
Samples:
-
Free Samples
Quick Details
-
Type:
-
Fiber Adapter & Connectors
-
Model Number:
-
Fiber Optic Duplex Adapter
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
FOC or OEM
-
No. of Fiber:
-
2.
-
Product name:
-
Fiber Optic Duplex Adapter
-
Material:
-
polymer
-
Simplex or Duplex:
-
Duplex
-
Sleeve:
-
Zirconia Ceramic
-
Mode:
-
Singlemode
-
Packing Quantity:
-
50 pcs/pack
-
Application:
-
FTTH FTTB FTTX Network
-
Certification:
-
CE RoHS FCC
-
Samples:
-
Free Samples

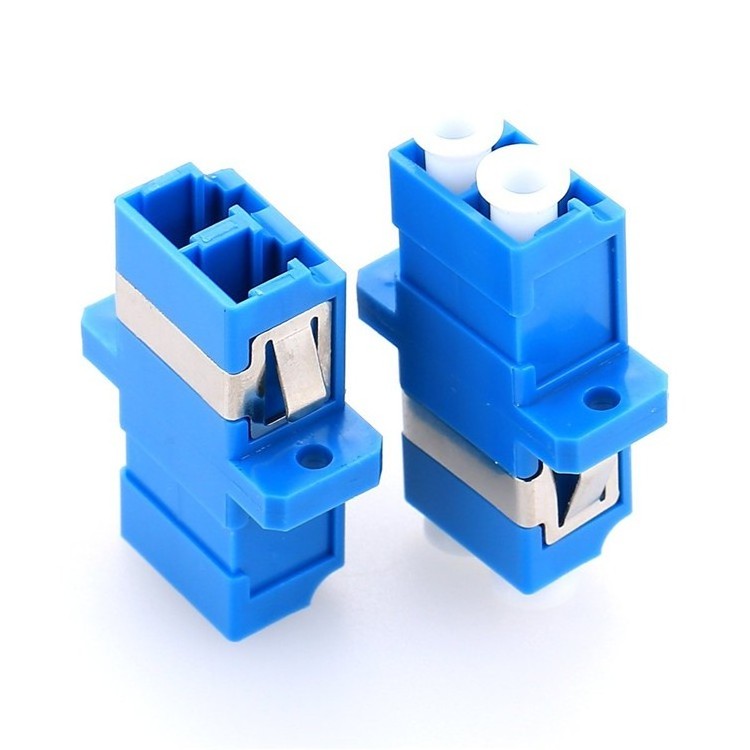

LC-LC LC Duplex Fiber Optic Adapter Optical Connector Coupler
Foclink 's Fiber optic adapter produce diversfied types of adaptersincluding FC,SC,ST,LC,MU,MTRJ,E2K,DIN,D4,MPO,FC-SC,FC-ST,SC-ST,LC-FC,LC-SC etc.Integrative construction of connector,good and low insertion loss and high returnloss can satify the requirements of fast,exact,lastingand stable connection in different environments!
Feature:
1. Low insertional loss and back reflection loss
2. High prcision alignment
3. Nickel plated brass body
4. Use in Single-mode or Multimode applications
5 .Choice of housing material and sleeve material
6. ISO9001:2008,ROHS compliance
Applications:
1.Fiber Optic Telecommunications
2.LAN (Local Area Network)
3.FTTH (Fiber To The Home)
4.CATV&CCTV System
5.High speed transmission systems
6.Fiber optic sensing
7.Industtial, Mechanical and
Specification:
| Parameter | Unit | LC, SC, FC, ST | |||
| SM | MM | ||||
| PC | UPC | APC | PC | ||
| Insertion Loss (Typical) | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 |
| Return Loss | dB | ≥45 | ≥50 | ≥60 | ≥30 |
| Exchangeability | dB | ≤0.2 | |||
| Repeatability | dB | ≤0.2 | |||
| Durability | Time | >1000 | |||
| Operating Temperature | °C | -40~75 | |||
| Storage Temperature | °C | -45~85 | |||
Drawing pic :
