Quick Details
-
Model Number:
-
KND-2
-
Max. Current:
-
10A
-
Mechanical Life:
-
50000cycles
-
Max. Voltage::
-
250V/125V
-
Product name:
-
3way rocker switch
-
Model NO::
-
KND-2
-
Function::
-
ON-OFF
-
Dielectric strength::
-
1500VAC /0.5mA /1min
-
Lated Current::
-
3A /5A /7A /10A
-
Contact Resistance::
-
<50MΩ
-
Insulation Resistance::
-
>100MΩ
Quick Details
-
Max. Voltage:
-
250V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
OEM
-
Model Number:
-
KND-2
-
Max. Current:
-
10A
-
Mechanical Life:
-
50000cycles
-
Max. Voltage::
-
250V/125V
-
Product name:
-
3way rocker switch
-
Model NO::
-
KND-2
-
Function::
-
ON-OFF
-
Dielectric strength::
-
1500VAC /0.5mA /1min
-
Lated Current::
-
3A /5A /7A /10A
-
Contact Resistance::
-
<50MΩ
-
Insulation Resistance::
-
>100MΩ
Product name:

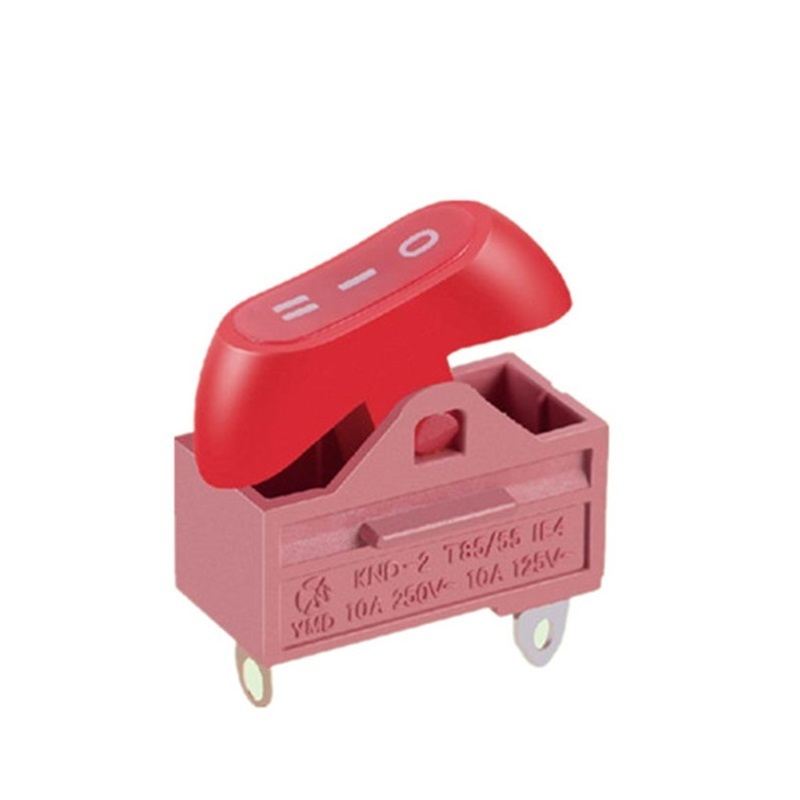

On Off Electrical Rocker Switch Long Electrical Use Life hair dryer Switch colorful switch
Specification:
| Name | 3Way rocker switch |
| Model | KND-2 |
| Voltage | 125/250V 50hz |
| Current | 3A /5A /7A /10A |
| Contact resistance | 50mΩ Max |
| Insulation resistance | 100mΩ Min |
| Electircal life | 10000-30000 |
| Ambient Temperature | T85 /55 |
| Dielectric strength | 1500V/0.5mA/1MIN |
| Solder ability of terminal | MAX350℃,3S |
| Operation force | 850±300gf |
Typical Application: Home appliance, electrical equipments, etc
All materials are ROHS complaint
It also come with two different appearance: printing and engraving
Packing
standard export package, depends on customer's demand
