Quick Details
-
Control System Brand:
-
RuiDa
-
Cutting Area:
-
1300mm*900mm (4feet*3feet)
-
Cutting Thickness:
-
0-25mm acrylic (others determined by materials)
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
BLUE ELEPHANT
-
Weight (KG):
-
500 KG
-
Laser Tube:
-
Seal Co2 Laser Tube
-
Laser Power:
-
60W, 80W, 100W, 130W, 150W, 170W etc
-
Color:
-
Blue, White, Red, Orange
-
Driving System:
-
Stepper or customized
-
Compatible Software:
-
CorelDraw AutoCAD Photoshop
-
Table:
-
honeycomb table, up down table, knife table etc
-
Function:
-
Engraving Cutting Nonmetal Materials
-
Certification:
-
ce
Quick Details
-
Laser Type:
-
CO2
-
Cutting Speed:
-
1-1000mm/min
-
Cooling Mode:
-
WATER COOLING
-
Control System Brand:
-
RuiDa
-
Cutting Area:
-
1300mm*900mm (4feet*3feet)
-
Cutting Thickness:
-
0-25mm acrylic (others determined by materials)
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
BLUE ELEPHANT
-
Weight (KG):
-
500 KG
-
Laser Tube:
-
Seal Co2 Laser Tube
-
Laser Power:
-
60W, 80W, 100W, 130W, 150W, 170W etc
-
Color:
-
Blue, White, Red, Orange
-
Driving System:
-
Stepper or customized
-
Compatible Software:
-
CorelDraw AutoCAD Photoshop
-
Table:
-
honeycomb table, up down table, knife table etc
-
Function:
-
Engraving Cutting Nonmetal Materials
-
Certification:
-
ce
Product Description
Features:
* The machine adopt advanced DSP control system which continue and potimize the cutting speed .processing path improve the working efficiency .the clearance compensation ensure processing quality .
* Fully supported CAD CORELDRAW.PHOTOSHOP software .friendly man- computer interface
* In the process of designing and producing —-stable mechanical desigh .imported linear guid rail and precision gear make sure the high speed and high precision
* Apecial treatment easily changeable blade or honeycomb worktable easy maintance
* Widely used .make the large size and kind of common board processing by laser machine possible
* Reasonable design of laser line with the industry water chiller ,keep the same power –force on each spot ensure the quality of cutting.
* The machine adopt advanced DSP control system which continue and potimize the cutting speed .processing path improve the working efficiency .the clearance compensation ensure processing quality .
* Fully supported CAD CORELDRAW.PHOTOSHOP software .friendly man- computer interface
* In the process of designing and producing —-stable mechanical desigh .imported linear guid rail and precision gear make sure the high speed and high precision
* Apecial treatment easily changeable blade or honeycomb worktable easy maintance
* Widely used .make the large size and kind of common board processing by laser machine possible
* Reasonable design of laser line with the industry water chiller ,keep the same power –force on each spot ensure the quality of cutting.
Technical Parameters
|
Model
|

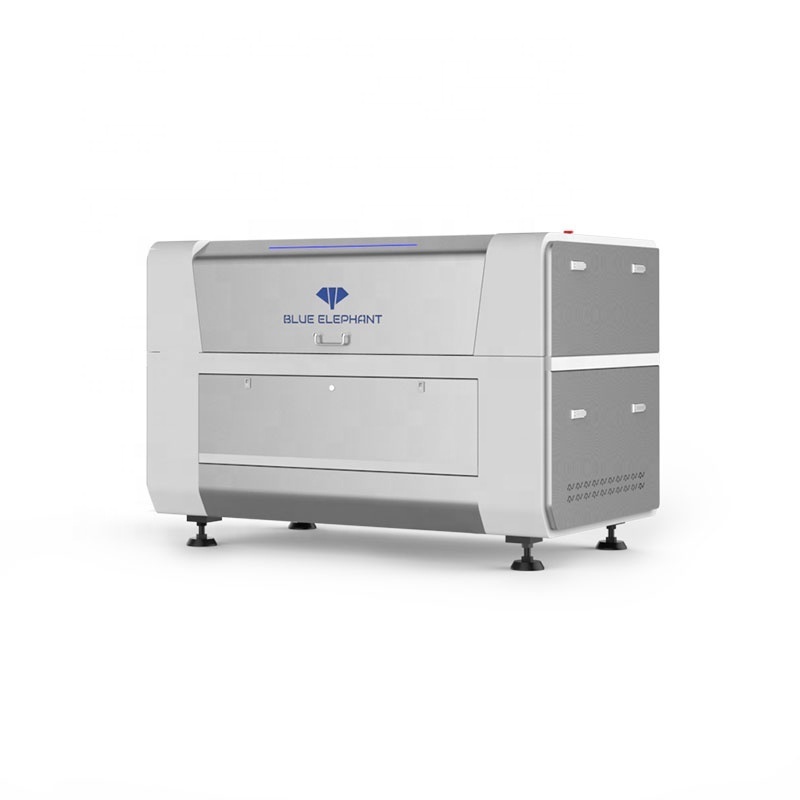

1390 Laser Wood Cutter Machine
|
|
Working area
|
1300mm*900mm, 4×3 feet
|
|
Laser power
|
RECI 75-150W, Yongli 300W
|
|
Laser type
|
Sealed Co2 laser source
|
|
Cooling
|
CW5200 Water cooling
|
|
Cutting speed
|
0-30,000mm/min
|
|
Cutting thickness
|
0-25mm acrylic (others determined by materials)
|
|
Position system
|
Red dot
|
|
Support Graphic Format
|
DST, PLT, BMP, DXF
|
|
Motor&Drive
|
Stepper
|
|
Working voltage:
|
220V, 50Hz
|
|
Working table:
|
Up and down working table
|
|
Packing:
|
Wooden box
|
|
Other
|
Air Pump, Exhaust Fan, Water Pipe, Toolbox, Focus Mirror, Reflector
|
