Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
XKJ
-
Dimension(L*W*H):
-
Diffirent Model
-
Name:
-
Double Impeller Agitation Leaching Tank
-
Color:
-
Customizable
-
Installation:
-
Under Engineer's Guide
-
Spare parts supply:
-
Lifelong Time
-
After sale Service:
-
Life-long Service
-
Material:
-
Carbon steel
-
Market:
-
India, Europe
-
Motor:
-
Chinese famous brand
-
Usage:
-
Mineral
-
Mixer Type:
-
Double Impeller
Quick Details
-
Weight (KG):
-
5000
-
Application:
-
Mineral Leaching Process
-
Production Capacity:
-
99%
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
XKJ
-
Dimension(L*W*H):
-
Diffirent Model
-
Name:
-
Double Impeller Agitation Leaching Tank
-
Color:
-
Customizable
-
Installation:
-
Under Engineer's Guide
-
Spare parts supply:
-
Lifelong Time
-
After sale Service:
-
Life-long Service
-
Material:
-
Carbon steel
-
Market:
-
India, Europe
-
Motor:
-
Chinese famous brand
-
Usage:
-
Mineral
-
Mixer Type:
-
Double Impeller

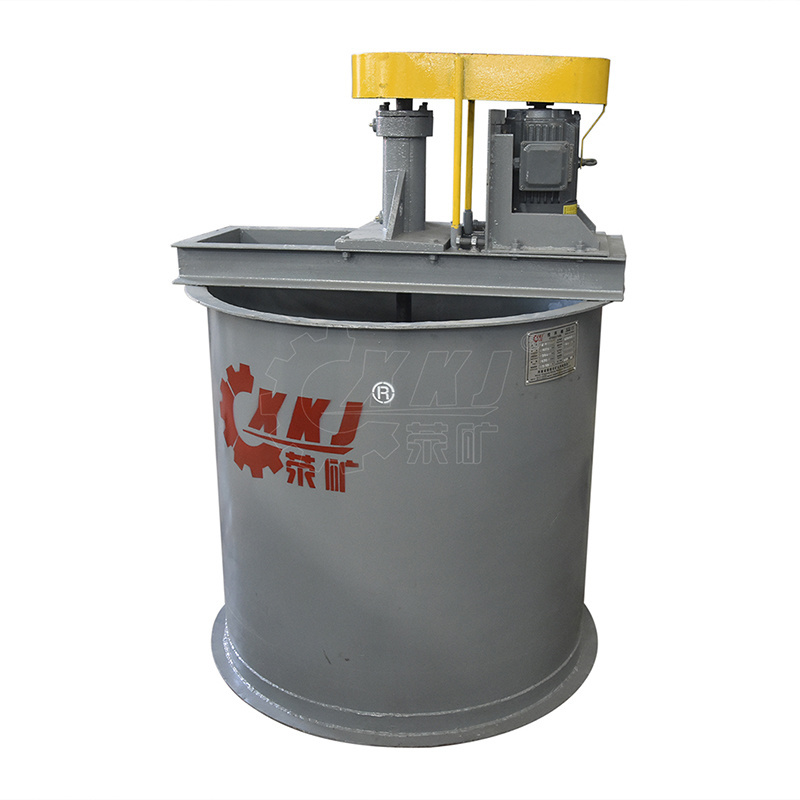

Product introduction
Leaching tank is used for mixing pulp before the flotation process, increase the reaction time of the reagent and strengthen the quality of the reagent reaction. This machine is suitable to be used in ore beneficiation industry and also for stirring the ingredients in all various industries.
Product Features
1. Strong agitating capacity and Low consumption
2. Easy maintenance and outstanding mixing performance
3. High mixing and circulating ability
4.Imporved cycling effect and completely mixing pulp and medicine
Working principle
When the machine working, the impeller rotates which is driven by the V-Belt. The pulp and medicine take circular motion , so that get mixed evenly in the whole tank ,and the mixed suspension liquid discharges from the overflow part.
Performance parameters
| Model |
Tank inner diameter (mm) |
Tank inner height (mm) |
Effective volume (m3) |
Impeller RPM (r/min) |
Impeller diameter (mm) |
Motor model | Motor power (kw) | Dimension (L*W*H)(mm) | Weight(t) |
| XB-1000 | 1000 | 1000 | 0.58 | 530 | 255 | Y100L-6 | 1.5 | 1173*1138*1491 | 1.0 |
| XB-1200 | 1200 | 1200 | 1.4 | 340 | 400 | Y132S-6 | 2.2 | 1354*1310*1742 | 1.1 |
| XB-1500 | 1500 | 1500 | 2.2 | 320 | 400 | Y132S-6 | 3 | 1656*1572*2171 | 1.2 |
| XB-2000 | 2000 | 2000 | 5.6 | 290 | 550 | Y132M2-6 | 5.5 | 2380*2162*2850 | 2.3 |
| XB-2500 | 2500 | 2500 | 11.2 | 280 | 650 | Y180L-6 | 15 | 3036*2716*3543 | 3.4 |
| XB-3000 | 3000 | 3000 | 19.1 | 210 | 700 | Y255S-8 | 18.5 | 3604*3216*4250 | 4.9 |
| XB-3550 | 3550 | 3550 | 30 | 230 | 850 | Y255M-8 | 22 | 3940*3755*5386 | 7.3 |
| XB-4500 | 4550 | 4550 | 38 | 122 | 1000 | Y280M-8 | 45 | 4720*4800*6600 | 9.7 |
Detailed images
Successful cases
Henan xingyang mining machinery co., LTD is professional manufacturer of crusher and powder making equipment. It is a major production and export base of sand-stone and powder making machinery in China.
Why choose us:
1.Boasts its 40000 square meters production base
2.more than 20 years industry experience
3.Owns complete modernized processing equipment
4.Professional engineers and after-sales service team
5.Passed ISO and CE Certificate
6.Exported to more than 40 countries
