Quick Details
-
Brand Name:
-
HUASIFEI
-
Model Number:
-
SWF401
-
Place of Origin:
-
Guangdong, China
-
chip:
-
175G
-
Dimensions (W x D x H):
-
38 mm*38mm*7mm
-
Product Name:
-
Industrial Ethernet Switch
-
Power Supply:
-
5v~12V input
-
Interface:
-
4 10/100M port
-
Operating temperature:
-
0~+45℃
-
Weight:
-
12g
-
Color:
-
Blue
Quick Details
-
Transmission Rate:
-
10/100Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
1G
-
Brand Name:
-
HUASIFEI
-
Model Number:
-
SWF401
-
Place of Origin:
-
Guangdong, China
-
chip:
-
175G
-
Dimensions (W x D x H):
-
38 mm*38mm*7mm
-
Product Name:
-
Industrial Ethernet Switch
-
Power Supply:
-
5v~12V input
-
Interface:
-
4 10/100M port
-
Operating temperature:
-
0~+45℃
-
Weight:
-
12g
-
Color:
-
Blue

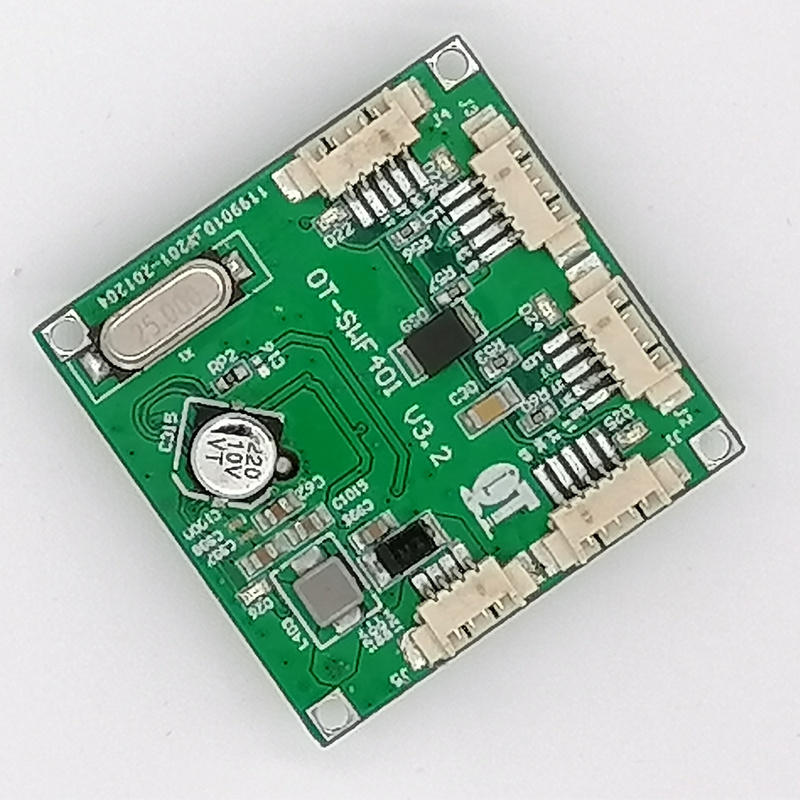

SWF401 is a four-port unmanaged Ethernet switch module, providing four 10/100M adaptive Ethernet ports, 38mmX38mm size, easy installation, suitable for different system integration.
Product Features :
-
Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab ;
-
Full duplex adopts IEEE 802.3x standard, half duplex adopts Backpressure standard ;
-
4 10/100M adaptive pin network ports, support automatic port flip (Auto MDI/MDIX)
-
Each port supports auto-negotiation function, automatically adjusts the transmission mode and transmission rate ;
-
Support MAC address self-learning ;
-
Supports full-speed forwarding of non-blocking traffic
-
Mini size design, 38mmX38mm (length X width)
-
Dynamic LED indicators provide simple working status prompts and troubleshooting ;
- Power supply supports 5v~12V input
|
Technical standard : |
IEEE802.3,IEEE802.3u,IEEE802.3x flow control :IEEE802.3x.Back Pressure |
|
Interface |
Fast Ethernet port :10Base-T/100Base-TX adaptive |
|
Transmission distance |
Twisted pair :100M( Standard CAT5/CAT5e cable ) |
|
Indicator light |
Interface indicator :1-4(LINK/ACT ) Power Indicator : PWR |
|
Exchange property |
Fast forwarding speed: 148810pps Transmission method:Forwarding System backplane bandwidth: 1.0G MAC address: 1K |
|
P ower supply
|
Input voltage : 5v~ 12VDC ( 5 ~12VDC) Input : Pin type 4P terminal, pitch 1.25MM |
|
Consumption
|
no load : 0. 5 W@12VDC Load: 0.8 W@VDC |
|
Working environment |
Working temperature: 0~+45℃ Storage temperature: -40~+85℃ Humidity: 10%~95 % (non-condensing ) |
|
Product structure |
Weight : 12g Size : 38 mm×38mm×7mm( L*W*H ) |
|
Packaging List |
Standard Edition : 1* 4-port switch core module Beta version : 1* 4-port switch core module 1* 4 RJ45 network port modules 1* 4x5pin double-ended terminal wire (1.25mm) 1* 1 DC terminal wire . |
|
Quality assurance |
1 year |
