Quick Details
-
Brand Name:
-
Eberry
-
Model Number:
-
ER13
-
Max. Current:
-
1500A
-
Pole:
-
3
-
Certification:
-
CE
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
AC 380V or DC 220V
-
Place of Origin:
-
Zhe
-
Brand Name:
-
Eberry
-
Model Number:
-
ER13
-
Max. Current:
-
1500A
-
Pole:
-
3
-
Certification:
-
CE
• Application Scope

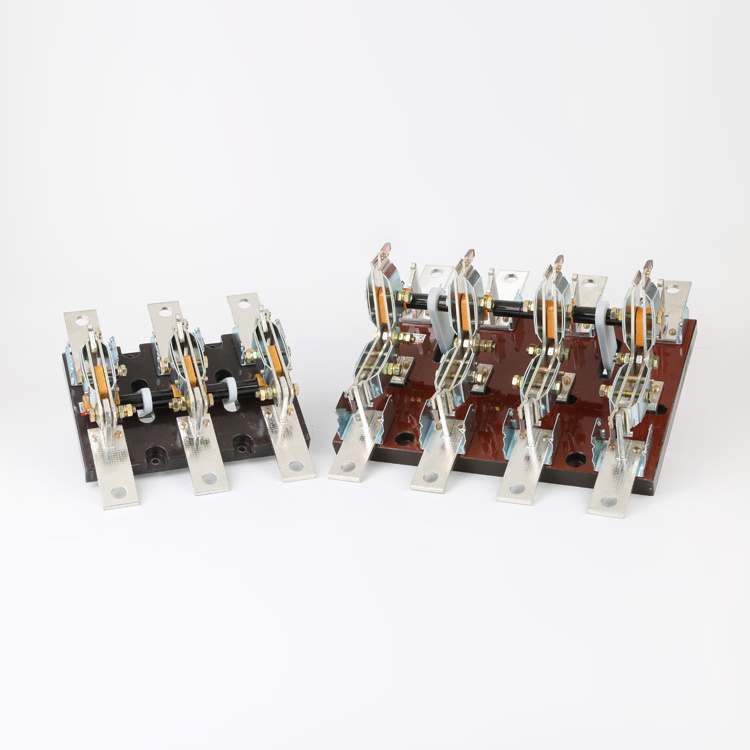

ER13 series single knife switch is applicable to complete distribution equipment of either AC 50HZ and rated voltage 400V or DC 220V and rated current up to 1500A,used for manual occasional connection and AC/DC current disconnection or as electrical isolation.
Its central frontal leverage mechanism is mainly used in switch cabinet with front operation and rear maintenance,and leverage mechanism is installed in right front.
• Main technical parameters
1. Rated voltage is AC 380V or DC 220V.
2. Rated currents are 100A,200A,400A,600A,1000A,1500A.
|
Rated current(A)
|
|
100
|
200
|
400
|
600
|
1000
|
1500
|
|
|
Operating voltage
|
|
|
|
AC400V
|
DC230V
|
|
|
|
|
Mechanical lifecycle(times)
|
|
3000
|
3000
|
3000
|
2000
|
2000
|
1000
|
|
|
Electrical lifecycle(times)
|
|
1000
|
1000
|
1000
|
500
|
500
|
300
|
|
|
Is short time withstand current(kA)
|
|
6
|
10
|
20
|
25
|
30
|
40
|
|
|
Dynamic current peak(kA)
|
Leverage
|
20
|
30
|
40
|
50
|
60
|
80
|
|
|
|
Handle
|
15
|
20
|
30
|
40
|
50
|
-
|
|
|
Operation force(N)
|
|
<=300
|
<=300
|
<=300
|
<=300
|
<=400
|
<=400
|
|
