Quick Details
-
Brand Name:
-
Tatooine
-
Motor Power:
-
diesel engine/electric motor
-
Charging Capacity:
-
530l
-
Reclaiming capacity:
-
440l
-
Speed of Mixing Drum:
-
14 r/min
-
Water Supply Mode:
-
Hydraulic Water Driven Pump
-
Working Cycle Period:
-
3-5s
-
Discharge Way:
-
Automatic
-
Outline Dimension:
-
190*120*140 CM
-
Make:
-
Tatooine
-
Marketing Type:
-
Hot Product 2022
-
Weight (KG):
-
500 kg
-
Product Name:
-
Cocnrete Mixer
-
Engine:
-
Diesel/Electric/Gasoline
-
Capacity:
-
320 L-3000L
-
Productivit:
-
10-12 m³/h
-
Discharge capacity(L):
-
350L-2000L
-
Concrete mixer type:
-
Concrete Pan Mixer
-
Key words:
-
Cemend Concrete Mixer
-
Drum thickness:
-
4-8mm
-
Control Method:
-
Automatic
Quick Details
-
Mixing Power:
-
7.5KW
-
Productivity:
-
25m³/h
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Tatooine
-
Motor Power:
-
diesel engine/electric motor
-
Charging Capacity:
-
530l
-
Reclaiming capacity:
-
440l
-
Speed of Mixing Drum:
-
14 r/min
-
Water Supply Mode:
-
Hydraulic Water Driven Pump
-
Working Cycle Period:
-
3-5s
-
Discharge Way:
-
Automatic
-
Outline Dimension:
-
190*120*140 CM
-
Make:
-
Tatooine
-
Marketing Type:
-
Hot Product 2022
-
Weight (KG):
-
500 kg
-
Product Name:
-
Cocnrete Mixer
-
Engine:
-
Diesel/Electric/Gasoline
-
Capacity:
-
320 L-3000L
-
Productivit:
-
10-12 m³/h
-
Discharge capacity(L):
-
350L-2000L
-
Concrete mixer type:
-
Concrete Pan Mixer
-
Key words:
-
Cemend Concrete Mixer
-
Drum thickness:
-
4-8mm
-
Control Method:
-
Automatic
Product Description
Concrete pan mixer is a new type of concrete mixer, suitable for general highways, power stations, dam construction, construction sites, roads, bridges, hydropower, and large and medium-sized prefabricated plants and other projects. It has stable operation, low energy consumption, compact structure and reliable transmission. , Important light, high production efficiency advantages, can mix plastic, dry-hard, fluid concrete and lightweight aggregates and mortar.

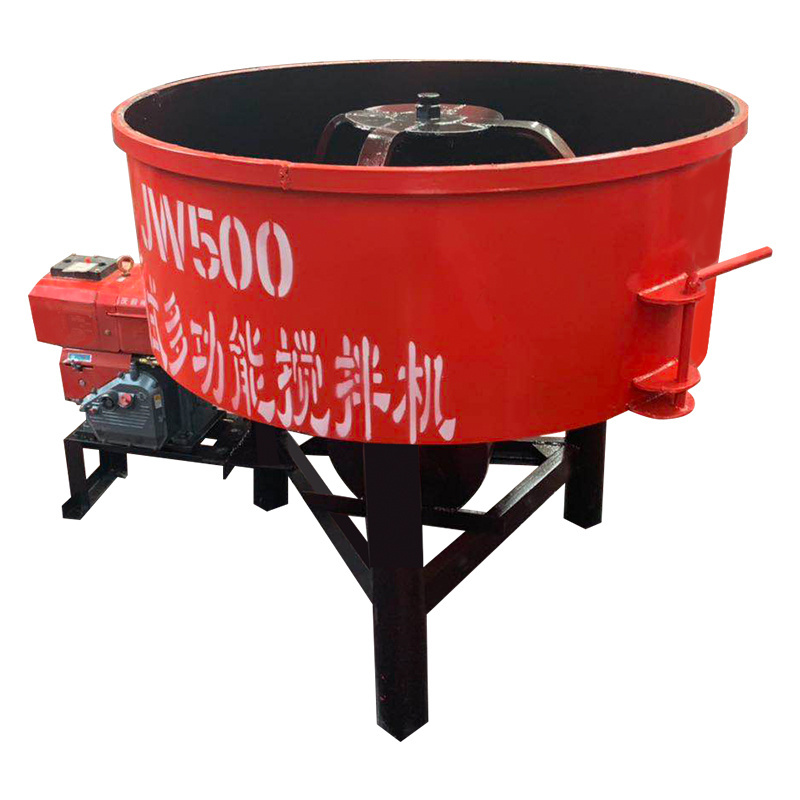

Tatooine Jw750 Concrete Mixer Concrete Pan mixer 750l Diesel Concrete Pan Mixer
Specification
|
Model
|
JW300
|
JW400
|
JW500
|
JW1000
|
|||
|
Volume
|
260L
|
380L
|
530L
|
1000L
|
|||
|
Feeding Volume
|
240L
|
350L
|
460L
|
900L
|
|||
|
Discharging Volume(L)
|
230L
|
340L
|
440L
|
890L
|
|||
|
Maximum Aggregate Diameter(mm)
|
40
|
40
|
40
|
50
|
|||
|
Dynamic Source
|
Electric /Diesel
|
|
|
|
|||
|
Main Shaft Revolution (rpm)
|
21/35
|
21/35
|
35/45
|
35/45
|
|||
|
Matched Power (KW)
|
4KW/5.5HP
|
5.5KW/7HP
|
7.5KW/11HP
|
15KW/22HP
|
|||
|
Stirring Drum (M) (Diameter*H)
|
Φ0.9*0.4
|
Φ1.1*0.4
|
Φ1.3*0.4
|
Φ1.8*0.4
|
|||
|
Assembly Weight (kg)
|
250
|
350
|
450
|
650
|
|||
|
Wall thickness
|
4/6/8mm
|
4/6/8mm
|
4/6/8mm
|
6/8mm
|
|||
|
Bottom thickness
|
6/8mm
|
6/8mm
|
8/10mm
|
10/12mm
|
|||
|
Productivity
|
6-8m³/h
|
10/14m³/h
|
18/25m³/h
|
38/45m³/h
|
|||
Product Details
Product advantage
1. The whole machine has reasonable design and optimized performance;
2. It is convenient to use and maintain;
3. It is firm and reliable, and has a long life;
4. Good mixing effect and high efficiency;
5. Convenient operation and fast unloading speed;
6. Low energy consumption and low noise.
Tatooine Jw750 Concrete Mixer Concrete Pan mixer 750l Diesel Concrete Pan Mixer
Packing & Delivery
We adopt wooden and iron box to pack machines, better guarantee the safety and quality of products.And we adopt multiple port, multiple exit point. Such as Shanghai, Qingdao, Guangdong and other regions. Product transportation will be faster and more convenient.
