- Product Details
- {{item.text}}
Quick Details
-
Dimension(L*W*H):
-
2000*900*1400mm
-
Weight:
-
510 KG
-
Mobility:
-
other
-
Name:
-
XY-100 Mini portable core Drilling Rig
-
color:
-
optional
-
Certification:
-
CE
Quick Details
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
GM
-
Voltage:
-
Customized
-
Dimension(L*W*H):
-
2000*900*1400mm
-
Weight:
-
510 KG
-
Mobility:
-
other
-
Name:
-
XY-100 Mini portable core Drilling Rig
-
color:
-
optional
-
Certification:
-
CE
Product Description

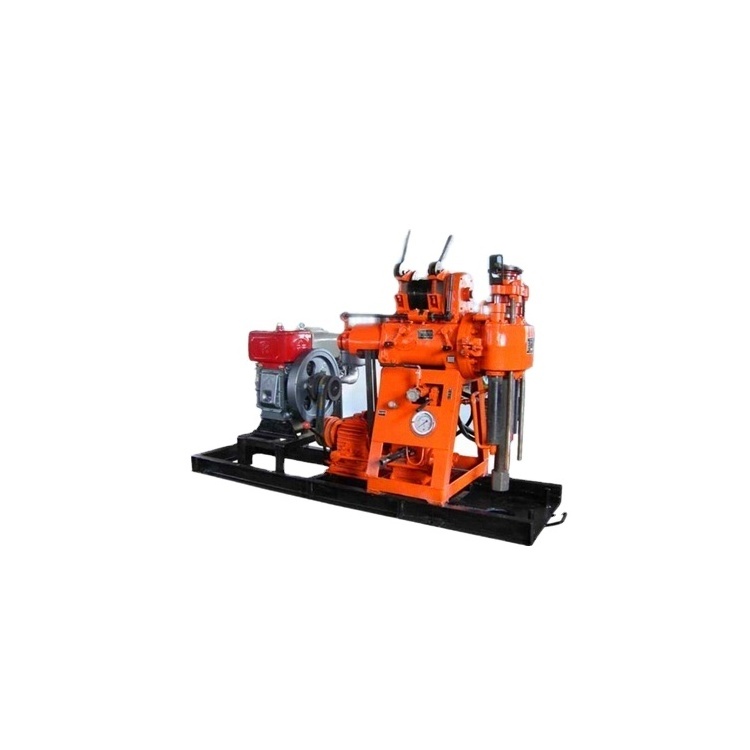

XY-100 Mini portable core Drilling Rig
Used for general investigation, geophysical exploration, high-way and building construction, and blast-hole drilling etc.With
hydro-automatic feeding device, and high drilling efficiency.Designed with hydro-chucking unit instead of slips to ensure drilling
from stop when changing pipes.Close levers, convenient to operate, safe and reliable operations.Compact in structure. All the
drill, water pump and diesel engine installed on one base frame result in space-saving.Light in weight, easy disassembling for
transportation and applicable to working conditions in plain and mountain areas.
Used for general investigation, geophysical exploration, high-way and building construction, and blast-hole drilling etc.With
hydro-automatic feeding device, and high drilling efficiency.Designed with hydro-chucking unit instead of slips to ensure drilling
from stop when changing pipes.Close levers, convenient to operate, safe and reliable operations.Compact in structure. All the
drill, water pump and diesel engine installed on one base frame result in space-saving.Light in weight, easy disassembling for
transportation and applicable to working conditions in plain and mountain areas.
|
Model
|
XY-100Y
|
|
Drilling depth
|
100m
|
|
Maximum open hole diameter
|
200mm
|
|
End hole caliber
|
75mm
|
|
Drill rod caliber
|
50mm
|
|
Drilling angle
|
90°~75°
|
|
Drill weight(No include power)
|
510kg
|
Specification
|
item
|
value
|
|
Condition
|
New
|
|
Type
|
Core Drilling Rig
|
|
Power Type
|
Diesel
|
|
Place of Origin
|
China
|
|
|
Fujian
|
|
Brand Name
|
GM
|
|
Usage
|
Other
|
|
Voltage
|
Customized
|
|
Dimension(L*W*H)
|
2000*900*1400mm
|
|
Weight
|
510kg
|
|
Certification
|
CE
|
|
Warranty
|
one year
|
|
After-sales Service Provided
|
Overseas third-party support available
|
|
Name
|
XY-100 Mini portable core Drilling Rig
|
|
color
|
optional
|
