Quick Details
-
Weight (KG):
-
0.2 KG
-
Wavelength:
-
450nm
-
Output power:
-
5mw
-
Color:
-
Blue
-
Operating Temperature:
-
-10℃~70℃
-
Storage Temperature:
-
-40℃~85℃
-
Diameter:
-
6.5*10.5mm
-
Service Life:
-
10000 hours
-
Wire Length:
-
150mm
-
Working current:
-
60mA
-
Operating Voltage:
-
3-5V
Quick Details
-
Place of Origin:
-
Guangdong, China (Mainland)
-
Spare Parts Type:
-
no
-
Brand Name:
-
Lanji
-
Weight (KG):
-
0.2 KG
-
Wavelength:
-
450nm
-
Output power:
-
5mw
-
Color:
-
Blue
-
Operating Temperature:
-
-10℃~70℃
-
Storage Temperature:
-
-40℃~85℃
-
Diameter:
-
6.5*10.5mm
-
Service Life:
-
10000 hours
-
Wire Length:
-
150mm
-
Working current:
-
60mA
-
Operating Voltage:
-
3-5V
Features:
1.Wavelength:450nm
2.Output power:5mw
3.Diameter:6.5*10.5mm

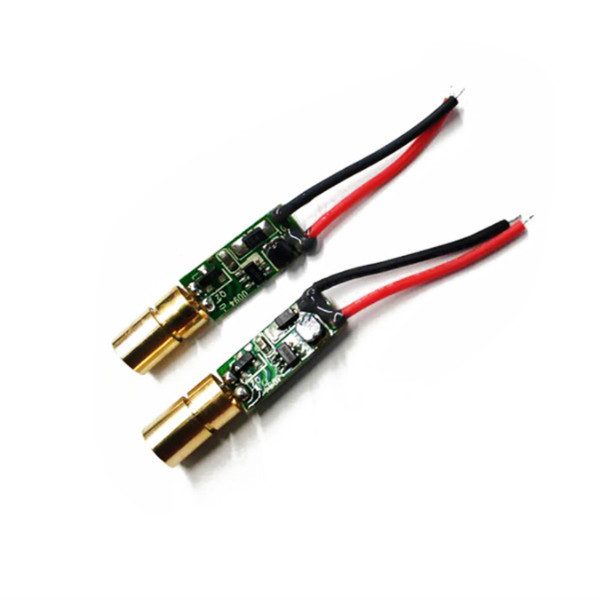

Adjustable Focus 450nm 5mW 3V D10.5mm Blue Laser Diode Module for Blue Laser Pointer
I.Product Description
|
NO |
Item | Parameter | Unit |
| 1 | Peak Wavelength | 450±5 | nm |
| 2 | Optical Output Power | 5 | mW |
| 3 | Operating Voltage | 3 ~ 5 | V |
| 4 | Operating Current | 60 | mA |
| 5 | Operating Case Temperature | -5 ~ 45 | ºC |
| 11 | Laser diodes | Sharp | |
| 12 | Safety Grade | Class 2 | - |
| 13 | External dimension | 6.5*10.5 | mm |
| 14 | Wire Length | 150 | mm |
| 15 | PCB Dimension | mm | |
| 16 | Storage Temperature | -40 ~ 85 | ºC |
| 17 | Life Time | ≤10000 | Hour |
| 18 | Beam Spot | Dot/Line/Cross | - |
| We offer professional OEM service , all laser modules can be customized by you! | |||
Remarks: We offer professional ODM and OEM service, so the housing size, power, beam Shape, beam Size and the wire length of the laser module can be customized!
II. Packaging&Shipping:
1. Plastic box, ESD bag, standard and normal package.
2.3-5 days after receiving the payment by T/T, PAYPAL, and other ways.
3. It will be shipped by DHL/FedEx/UPS/TNT or other special ways, please contact us to choose the best one.
