- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
NO
-
Dimension(L*W*H):
-
4700*2100*2500 mm
-
Weight:
-
4800kg
-
Working Pressure:
-
25
-
Air capacity:
-
33 M3/min
-
Warranty of core components:
-
1 years
-
Product name:
-
Screw air compressor
-
Capacity:
-
33m3/min
-
Compression:
-
two-stage
-
Working pressure:
-
25 Bar/362 psi
-
Cooling method:
-
Air Cooling
-
Drive method:
-
Driect Drive
-
Air end:
-
KAISHAN
-
Noise level:
-
80+-3 dB(a)
-
OEM:
-
Accpet
-
Color:
-
Yellow, blue
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
KAISHAN
-
Model Number:
-
LGCY-33/25
-
Voltage:
-
NO
-
Dimension(L*W*H):
-
4700*2100*2500 mm
-
Weight:
-
4800kg
-
Working Pressure:
-
25
-
Air capacity:
-
33 M3/min
-
Warranty of core components:
-
1 years
-
Product name:
-
Screw air compressor
-
Capacity:
-
33m3/min
-
Compression:
-
two-stage
-
Working pressure:
-
25 Bar/362 psi
-
Cooling method:
-
Air Cooling
-
Drive method:
-
Driect Drive
-
Air end:
-
KAISHAN
-
Noise level:
-
80+-3 dB(a)
-
OEM:
-
Accpet
-
Color:
-
Yellow, blue
Product Description

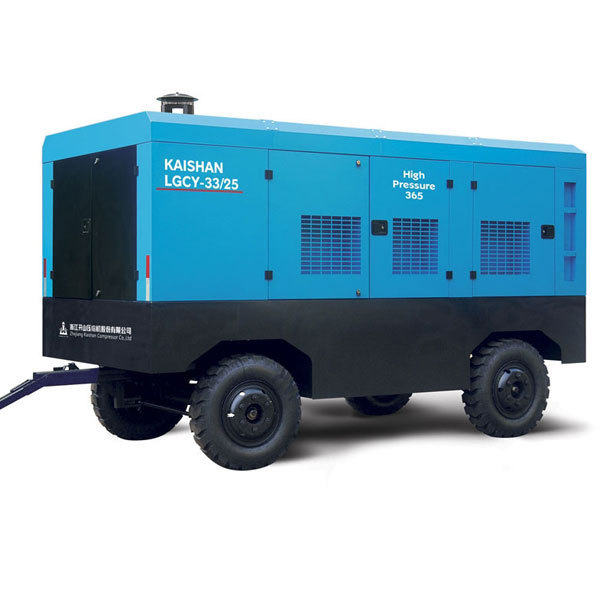

25 bar diesel engine driven two stage screw air compressor for mining and water well drilling
, which are widely used in highway, railway, mining, water conservancy, shipbuilding, urban construction, energy, military industry and other industries.
Characteristic of diesel air compressor for mining :
1.Low operating sound and less vibration design.Easy serviceability.
2.Low fuel consumption to realize far distance outdoor usage;Full protection system,energy saving.
3.High efficient Airend:
4.Diesel Engine of Famous Brand: Select the diesel engine of CUMMINS and YUCHAI brand, satisfy the emission
requirement of Europe, low oil consumption, after sale service system all over China.
5.Good adaptability.
1.Low operating sound and less vibration design.Easy serviceability.
2.Low fuel consumption to realize far distance outdoor usage;Full protection system,energy saving.
3.High efficient Airend:
4.Diesel Engine of Famous Brand: Select the diesel engine of CUMMINS and YUCHAI brand, satisfy the emission
requirement of Europe, low oil consumption, after sale service system all over China.
5.Good adaptability.
|
Model
|
Working Pressure
|
|
Capacity
|
|
Diesel Engine
|
Weight
|
Dimensions
|
||
|
|
bar
|
Psi
|
m³/min
|
cfm
|
|
kgs
|
(L*W*H)mm
|
||
|
LGCY-6/7X
|
7
|
102
|
6
|
212
|
XiChai 75HP
|
1400
|
3750*1920*1700
|
||
|
LGCY-7.5/7X
|
7
|
102
|
7.5
|
265
|
XiChai 75HP
|
1850
|
3900*1920*1700
|
||
|
LGCY-9/7
|
7
|
102
|
9
|
318
|
YuChai 120HP
|
1850
|
3900*1920*1700
|
||
|
LGCY-12/10
|
10
|
145
|
12
|
424
|
YuChai160HP
|
2380
|
4080*1980*2350
|
||
|
LGCY-12/10K
|
10
|
145
|
12
|
424
|
Cummins 160HP
|
2380
|
4080*1980*2350
|
||
|
LGCY-10/13
|
13
|
189
|
10
|
353
|
YuChai 160HP
|
2380
|
4080*1980*2350
|
||
|
LGCY-18/17
|
17
|
247
|
18
|
636
|
YuChai 260HP
|
3700
|
3980*1800*2450
|
||
|
LGCY-18/17K
|
17
|
247
|
18
|
636
|
Cummins 260HP
|
3700
|
3980*1800*2450
|
||
|
LGCY-32/10
|
10
|
145
|
32
|
1130
|
YuChai 400HP
|
5000
|
4600*1950*2850
|
||
|
LGCY-32/10K
|
10
|
145
|
32
|
1130
|
Cummins 360HP
|
5000
|
4600*1950*2850
|
||
|
LGCY-12/15T
|
15
|
218
|
12
|
424
|
Yuchai 160HP
|
2800
|
3600*1600*2220
|
||
|
LGCY-15/16T
|
16
|
232
|
15
|
530
|
Yuchai 190HP
|
2800
|
3600*1600*2220
|
||
|
LGCY-15/16TK
|
16
|
232
|
15
|
530
|
Cummins 180HP
|
2800
|
3600*1600*2220
|
||
|
LGCY-17/17T
|
17
|
247
|
17
|
600
|
Yuchai 220HP
|
3700
|
3980*1800*2230
|
||
|
LGCY-17/17TK
|
17
|
247
|
17
|
600
|
Cummins 210HP
|
3700
|
3980*1800*2230
|
||
|
LGCY-18/20T
|
20
|
290
|
18
|
636
|
Yuchai 260HP
|
4850
|
4600*1950*2850
|
||
|
LGCY-18/20TK
|
20
|
290
|
18
|
636
|
Cummins 260HP
|
4850
|
4600*1950*2850
|
||
|
LGCY-19.5/19
|
19
|
276
|
19.5
|
689
|
Cummins 6CTA8.3-C260
|
3700
|
3980*1800*2450
|
||
|
LGCY-19.5/19A
|
19
|
276
|
19.5
|
689
|
YuChai YC6M260L-K20
|
3700
|
3980*1800*2450
|
||
|
LGCY-19/21-21/18
|
21-18
|
304-261
|
19-21
|
671-742
|
Yuchai 260HP
|
3700
|
3980*1800*2450
|
||
|
LGCY-19/21-21/18K
|
21-18
|
304-261
|
19-21
|
671-742
|
Cummins 260HP
|
3700
|
3980*1800*2450
|
||
|
LGCY-21/21-23/18
|
21-18
|
304-261
|
21-23
|
742-812
|
Yuchai 310HP
|
4650
|
4500*1900*2500
|
||
|
LGCY-22/20K
|
20
|
290
|
22
|
777
|
Cummins 6CTA8.9-C360
|
4850
|
4600*1950*2850
|
||
|
LGCY-22/20
|
20
|
290
|
22
|
777
|
YuChai YC6M340L-K20
|
4850
|
4600*1950*2850
|
||
|
LGCY-23/23-25/18
|
23-18
|
334-261
|
23-25
|
812-883
|
Yuchai 340HP
|
4850
|
4600*1950*2850
|
||
|
LGCY-23/23-25/18K
|
23-18
|
334-261
|
23-25
|
812-883
|
Cummins 325HP
|
4850
|
4600*1950*2850
|
||
|
LGCY-27/23-29/18
|
23-18
|
334-261
|
27-29
|
954-1024
|
Yuchai 400HP
|
4850
|
4600*1950*2850
|
||
|
LGCY-25/23-27/18K
|
23-18
|
334-261
|
27-29
|
954-1024
|
Cummins 360HP
|
4850
|
4600*1950*2850
|
||
|
LGCY-26/25
|
25
|
363
|
26
|
918
|
Cummins QSZ13-C550
|
5000
|
4600*1950*2600
|
||
|
LGCY-26/25A
|
25
|
363
|
26
|
918
|
YuChai YC6K500L
|
5000
|
4600*1950*2600
|
||
|
LGCY-33/25
|
25
|
363
|
33
|
1165
|
Cummins QSZ13-C550
|
6800
|
4700*2100*2600
|
||
|
LGCY-33/25A
|
25
|
363
|
33
|
1165
|
YuChai YC6K550L
|
6800
|
4700*2100*2850
|
||
|
LGCY-39/25
|
25
|
363
|
39
|
1377
|
Cummins KTA19-P700,700HP
|
6800
|
4700*2100*2850
|
||
|
LGCY-39/25A
|
25
|
363
|
39
|
1377
|
Caterpillar C-18ACERT
|
6800
|
4700*2100*2850
|
||
|
LGCY-33/35
|
35
|
508
|
33
|
1165
|
Cummins KTA19-P700,/700HP
|
6800
|
4700*2100*2850
|
||
|
LGCY-33/35A
|
35
|
508
|
33
|
1165
|
Caterpillar C-18ACERT
|
6800
|
4700*2100*2850
|
||
|
LGCY-43/25-35/35Y
|
25/35
|
363/508
|
43/35
|
1519/1236
|
Yuchai 760HP
|
7000
|
4800*2100*2850
|
||
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
