Quick Details
-
Voltage:
-
220V/380 V or other require
-
Power:
-
8kw
-
Dimension(L*W*H):
-
2700 *1500 *1800mm
-
Weight:
-
3200 kg
-
Name:
-

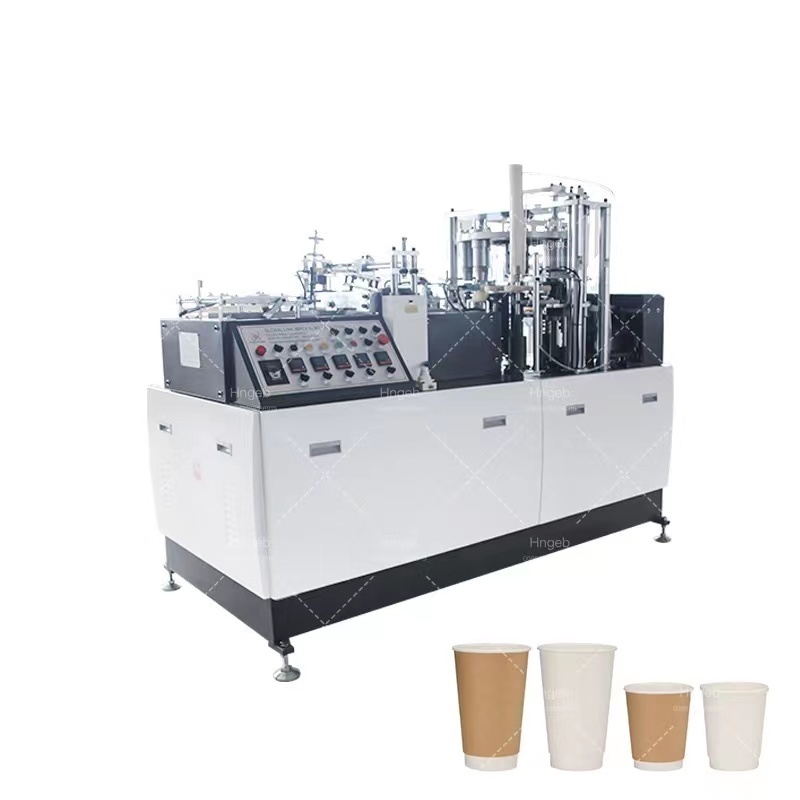

Single And Double PE Coated China Paper Tea Cup Making Machine
-
Air source:
-
0.6m3/min
-
Finished Products:
-
paper cup
-
Raw material:
-
paper
-
Application:
-
Drinks
-
Production:
-
Disposable Paper Cup Products
-
Keyword:
-
paper cup making machine
-
Type:
-
Paper Producton Line
-
Speed:
-
80-200 Pcs/min
-
Color:
-
Customized Color
Quick Details
-
Production Capacity:
-
100 pcs/min
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
GEB
-
Voltage:
-
220V/380 V or other require
-
Power:
-
8kw
-
Dimension(L*W*H):
-
2700 *1500 *1800mm
-
Weight:
-
3200 kg
-
Name:
-
Single And Double PE Coated China Paper Tea Cup Making Machine
-
Air source:
-
0.6m3/min
-
Finished Products:
-
paper cup
-
Raw material:
-
paper
-
Application:
-
Drinks
-
Production:
-
Disposable Paper Cup Products
-
Keyword:
-
paper cup making machine
-
Type:
-
Paper Producton Line
-
Speed:
-
80-200 Pcs/min
-
Color:
-
Customized Color
Product Description
Overall frame structure
The overall design is a box structure with welded ribs on the sides. The spray lubrication system is used to reduce wear and dissipate heat effectively, so that the machine has a longer life and more stable operation.
Machine Highlights
1. Different from ordinary paper cup machine, this model adopts full-body square steel structure, which is not more compact and stable under the condition of high-speed operation.
2.The main motor uses a gear reducer motor, using imported bearings NSK.
3.The use of fully automatic closed lubrication system, without the need for manual oil lubrication, can ensure that the machine runs for a long time without interruption at high speed.
4. Parts and components are produced in a standardized manner with strong versatility and good interdependence performance, which is convenient for equipment maintenance.
Mechanical quality assurance
1. All moving parts on the table are easily accessible, which is convenient for daily cleaning and maintenance.
2. All the moving parts under the countertop are shower-type lubricated and replaced with the specified lubricating oil every 4 to 6 months.
The overall design is a box structure with welded ribs on the sides. The spray lubrication system is used to reduce wear and dissipate heat effectively, so that the machine has a longer life and more stable operation.
Machine Highlights
1. Different from ordinary paper cup machine, this model adopts full-body square steel structure, which is not more compact and stable under the condition of high-speed operation.
2.The main motor uses a gear reducer motor, using imported bearings NSK.
3.The use of fully automatic closed lubrication system, without the need for manual oil lubrication, can ensure that the machine runs for a long time without interruption at high speed.
4. Parts and components are produced in a standardized manner with strong versatility and good interdependence performance, which is convenient for equipment maintenance.
Mechanical quality assurance
1. All moving parts on the table are easily accessible, which is convenient for daily cleaning and maintenance.
2. All the moving parts under the countertop are shower-type lubricated and replaced with the specified lubricating oil every 4 to 6 months.
| Cup size |
6~16oz(outside diameter ofa cup 60-90mm,outside diameter of bottom
50~70mm,height of cup 50~135mm,depth of bottom 5~10mm) |
| Rated speed | 90-110pcs/min |
| Main motor power | 2.2KW |
| Electro thermal power | 8.6/13.2KW |
| Air source | 0.6m/min;0.6MPa customer-owned |
| Applical base paper | 190~350g/(single or double PE coating paper) |
| Weight | 3.8T |
| Main size | 2700*1500*1800mm |
| Paper cup collector size | 1150*850*2000mm |
| Actual power consumption | 7.5KW |
| Remark | The paper thickness error margin is ±0.05mm for the same set of mould |
Packaging & Shipping
1. Packaging:
Packed by standard import & export wooden cases or carton boxes.
2. Shipping:
By logistics; by automobile; by train; by shipping; by air etc.
