Quick Details
-
Brand Name:
-
Perfte
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product Name:
-

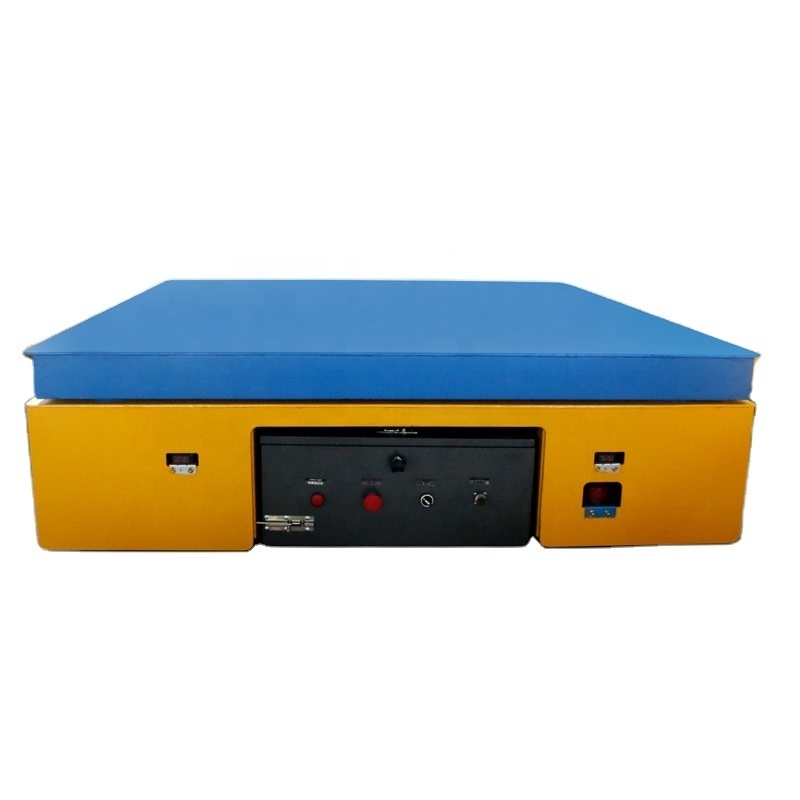

Industrial Heavy Load Electric Motor Steel Coil Transfer Trolley
-
Material:
-
Q235
-
Load capacity:
-
1-300T
-
Power Supply:
-
Rail /Battery /Cable Reel
-
Running speed:
-
0-50 m/min(Adjustable)
-
Control Style:
-
Wire / Wireless / PLC
-
Size:
-
Customized
-
Certificates:
-
CE ISO
Quick Details
-
Warranty:
-
2 years
-
Weight (KG):
-
300
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Perfte
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product Name:
-
Industrial Heavy Load Electric Motor Steel Coil Transfer Trolley
-
Material:
-
Q235
-
Load capacity:
-
1-300T
-
Power Supply:
-
Rail /Battery /Cable Reel
-
Running speed:
-
0-50 m/min(Adjustable)
-
Control Style:
-
Wire / Wireless / PLC
-
Size:
-
Customized
-
Certificates:
-
CE ISO
Parameter
|
Model |
BXC-2T |
BXC-10T |
BXC-20T |
BXC-30T |
BXC-50T |
BXC-63T |
BXC-150T |
|
|
Rated load (T) |
2 |
10 |
20 |
30 |
50 |
63 |
150 |
|
|
Table size |
length(L) |
2000 |
3600 |
4000 |
4500 |
5500 |
5600 |
10000 |
|
Width(W) |
1500 |
2000 |
2200 |
2200 |
2500 |
2500 |
3000 |
|
|
Height(H) |
450 |
500 |
550 |
600 |
650 |
700 |
1200 |
|
|
Wheel Base (mm) |
1200 |
2600 |
2800 |
3200 |
4200 |
4300 |
7000 |
|
|
Wheel Diameter(mm) |
Φ270 |
Φ300 |
Φ350 |
Φ400 |
Φ500 |
Φ600 |
Φ600 |
|
|
Ground Clearance (mm) |
50 |
50 |
50 |
50 |
50 |
75 |
75 |
|
|
Motor Power (Kw) |
1 |
1.6 |
2.2 |
3.5 |
5 |
6.3 |
15 |
|
|
Battery Capacity(Ah) |
180 |
160 |
180 |
250 |
330 |
400 |
600 |
|
|
Battery Voltage(V) |
24 |
48 |
48 |
48 |
48 |
48 |
72 |
|
|
Running Time When Full Load |
4.32 |
4.8 |
4 |
3.5 |
3.3 |
3 |
2.9 |
|
|
Running Distance for one Charge(Km) |
6.5 |
7.2 |
4.8 |
4.2 |
4 |
3.6 |
3.2 |
|
|
Max Wheel Load (KN) |
14.4 |
42.6 |
77.7 |
110.4 |
174 |
221.4 |
265.2 |
|
With years of export experience along with excellent quality, advanced services and competitive prices, Wemet has won numerous customers' trust and support. The company was commitmentted to the development of hydraulic lift and aerial work platform all the time. We have gain a lot of experience in designing and manufacturing through unremitting exploration. The company has passed ISO9001 quality management system certification and all products have CE certification. Our products enjoy great popularity in Europe, Southeast Asia, Mid-Asia, Africa and South America.
lift and aerial work platform all the time. We have gain a lot of experience in
designing and manufacturing through unremitting exploration. The company
has passed ISO9001 quality management system certification and all products
have CE certification. Our products enjoy great popularity in Europe,
Southeast Asia, Mid-Asia, Africa and South America.ith years of export experience along with excellent quality, advanced services
and competitive prices, Wemet has won numerous customers' trust and
support. The company was commitmentted to the development of hydraulic
lift and aerial work platform all the time. We have gain a lot of experience in
designing and manufacturing through unremitting exploration. The company
has passed ISO9001 quality management system certification and all products
have CE certification. Our products enjoy great popularity in Europe,
Southeast Asia, Mid-Asia, Africa and South America. years of export experience along with excellent quality, advanced services
and competitive prices, Wemet has won numerous customers' trust and
support. The company was commitmentted to the development of hydraulic
lift and aerial work platform all the time. We have gain a lot of experience in
designing and manufacturing through unremitting exploration. The company
has passed ISO9001 quality management system certification and all products
have CE certification. Our products enjoy great popularity in Europe,
Southeast Asia, Mid-Asia, Africa and South America.h years of export experience along with excellent quality, advanced services
and competitive prices, Wemet has won numerous customers' trust and
support. The company was commitmentted to the development of hydraulic
lift and aerial work platform all the time. We have gain a lot of experience in
designing and manufacturing through unremitting exploration. The company
has passed ISO9001 quality management system certification and all products
have CE certification. Our products enjoy great popularity in Europe,
Southeast Asia, Mid-Asia, Africa and South America.ears of With years of export experience along with excellent quality, advanced services
and competitive prices, Wemet has won numerous customers' trust and
support. The company was commitmentted to the development of hydraulic
lift and aerial work platform all the time. We have gain a lot of experience in
designing and manufacturing through unremitting exploration. The company
has passed ISO9001 quality management system certification and all products
have CE certification. Our products enjoy great popularity in Europe,
Southeast Asia, Mid-Asia, Africa and South America.export experience along with excellent quality, advanced services
and competitive prices, Wemet has won numerous customers' trust and
support. The company was commitmentted to the development of hydraulic
lift and aerial work platform all the time. We have gain a lot of experience in
designing and manufacturing through unremitting exploration. The company
has passed ISO9001 quality management system certification and all products
have CE certification. Our products enjoy great popularity in Europe,
Southeast Asia, Mid-Asia, Africa and South America.
The certificate show of our company :
-
1. Q: What is the table size and load capacity of this steel coil transfer trolley?
A:The size and load of the transfer cart is customized according to your requirement.2. Q: How do you transport the electric transfer cart and what is the package ?
A: The cart’s body is packed with tarp, the wheels and accessories are packed with wooden case.
3. Q: What is the leading time, delivery term, and payment term?
A: Usually our leading time is 45 days.About the delivery term, we accept , FOB, CIF. About the payment, we accept T/T or L/C, etc.
4. Q: What is your MOQ?
A: The MOQ is 1 set.
5. Q:Can we choose the power supply for the Heavy Load coil transfer trolley?
A:Yes,such as the cable drum, battery powered ,low voltage powered, busbar powered ,trailing cable powered, etc.6, Q:What certificates do you have?
A:ISO9001,CE,SASO,SGS,etc.
